195N1013

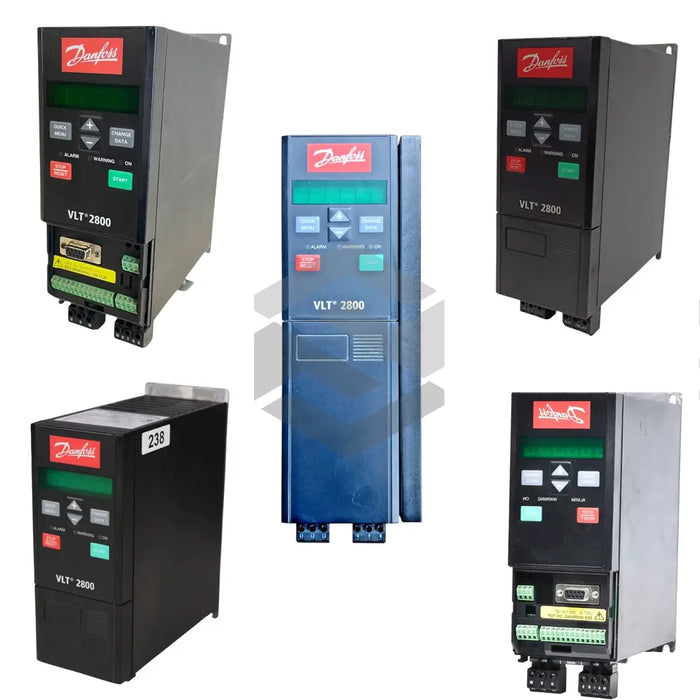

The 195N1013 low voltage drive from Danfoss represents a robust addition to the VLT 2800 Low Voltage Drives series, engineered for efficient motor control in industrial automation. This compact unit delivers a power output of 0.75 kW with a rated output current of 2.1 A, aligning with standard 1 horsepower class requirements. Designed for a supply voltage of 3 x 200–240 V AC, the drive supports both 50/60 Hz mains frequencies to accommodate global installations. Enclosure protection rated at IP20 ensures safe indoor cabinet mounting, preventing access to live parts while simplifying integration into control panels. The drive’s capability to support a maximum motor cable length of 50 m screened or 100 m unscreened preserves signal integrity and minimizes reflected-wave interference.

Performance is optimized through a switching frequency of 4.5 kHz, which strikes a balance between audible noise levels and switching losses. The unit’s compact dimensions—height of 200 mm, width of 90 mm, and depth of 152 mm—facilitate high-density panel layouts, enabling side-by-side mounting with minimal clearance. Thermal management is maintained by enforcing vertical mounting only, ensuring proper airflow and consistent temperature control. The integrated DC-link discharge circuit achieves safe capacitor discharge within four minutes after power removal, protecting service personnel during maintenance. With a modest weight of 3.8 kg, the drive simplifies handling and rack installation without compromising mechanical robustness.

Reliability is further enhanced by the IP20-rated enclosure and clearly defined minimum clearance requirements of 100 mm above and below the unit, which preserve cooling paths and prevent thermal interactions between components. The drive’s construction supports continuous industrial operation, making it suitable for conveyor systems, pumps, fans, and machine tool applications. Seamless integration with Danfoss VLT control interfaces enables straightforward parameterization, monitoring, and diagnostics via standard fieldbus and analog I/O options. Consistent performance across varying load profiles underscores its adaptability to diverse motor sizes and operational demands. Overall, the 195N1013 drive combines compactness, safety, and ease of integration for reliable automation in manufacturing environments.
