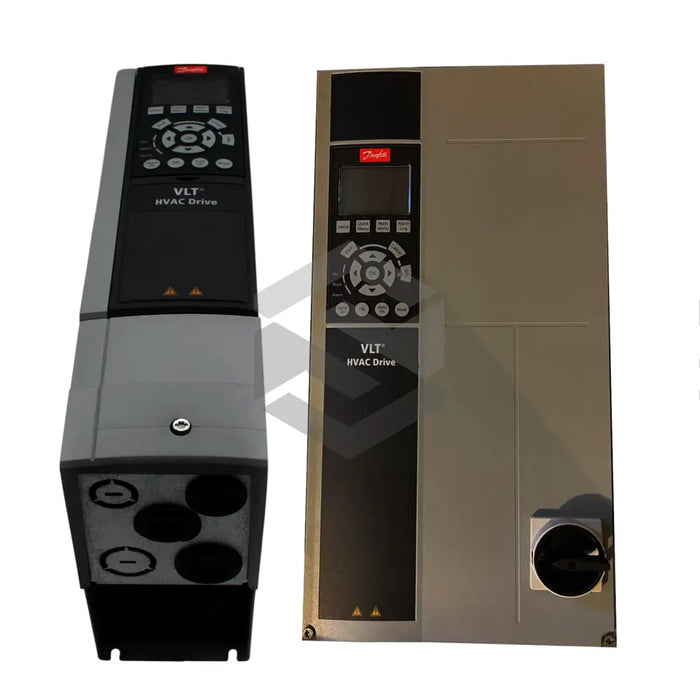

S image of FC-102P4K

FC-102P4K

by Danfoss
$1,931.35 - $2,737.19
$2,737.19
$1,931.35 - $2,737.19
$2,737.19

In Stock, Ships 1 - 3 Days

The Danfoss FC-102P4K drive from the VLT FC 102 HVAC Drives series is a compact 4 kW (5 HP) variable frequency drive designed for HVAC applications. It operates on an input voltage of 380-480 V and supply frequency of 50/60 Hz, delivering up to 98% energy efficiency for reduced operational costs. The drive supports 6 programmable digital inputs, 2 programmable pulse inputs (0.1–110 kHz), and 2 analog inputs (0–10 V/0/4–20 mA), plus 2 programmable analog outputs (0/4–20 mA) for seamless integration. Built-in protocols include FC Protocol, N2 Metasys, FLN Apogee, and Modbus RTU, ensuring compatibility with modern building management systems. Rated to 50 °C ambient (45 °C for D-frame), this reliable unit weighs 4 kg and offers robust control for pumps, fans, and compressors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Ambient Temperature

Max. 50°C without derating (45°C for D-frame)

Analog Inputs

2, voltage or current, 0-10 V or 0/4-20 mA

Analog Outputs

2, programmable, 0/4-20 mA

Built-in Communication Protocols

FC Protocol, N2 Metasys, FLN Apogee, Modbus RTU

Digital Inputs

6, programmable, PNP or NPN, 0-24 VDC

Energy Efficiency

Up to 98%

Horsepower

5 HP

Input Voltage

380-480 V

Optional Communication Protocols

LonWorks, BACnet, BACnet/IP, DeviceNet, PROFIBUS DP

Power

4 kW

Pulse Inputs

2, programmable, PNP positive logic, 0-24 VDC, 0.1-110 kHz

Relay Outputs

2, programmable, 240 VAC/2 A; 400 VAC/2 A

Supply Frequency

50/60 Hz

Weight

4 kg
