FC-202P37KT4131B9041

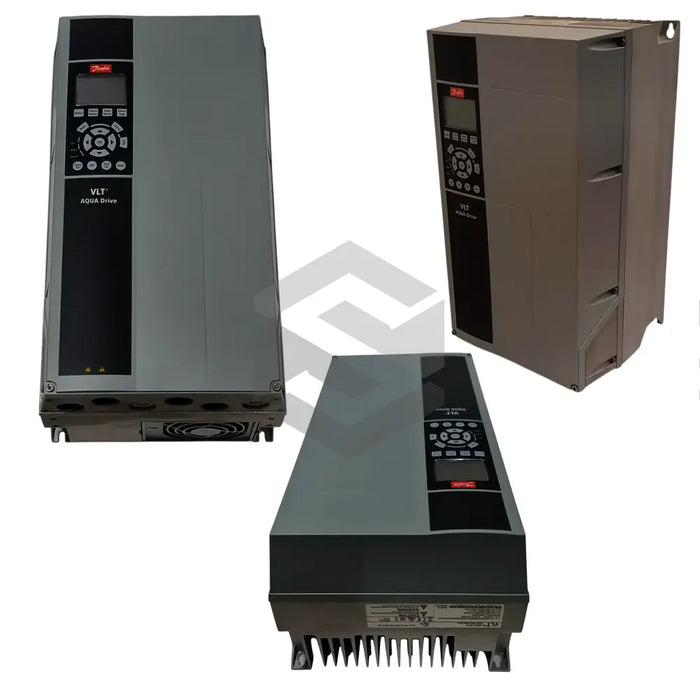

The Danfoss FC-202P37KT4131B9041 is a high-performance adjustable frequency drive from the VLT FC 202 AQUA Drives series, engineered by Danfoss for demanding industrial motor control. This drive delivers 0.37 kW of regulated power and supports both 50/60 Hz operation modes. It combines precise speed regulation with robust protection, including an Automatic Overtemperature Derating function to prevent thermal shutdown. Two programmable relay outputs offer flexible system control, while integrated temperature sensors maintain safe operating conditions under continuous load. The compact design and IP20 enclosure rating make it suitable for diverse automation environments.

In-depth technical specifications highlight the drive’s versatility. It features Voltage: 200-240 V input voltage and manages a full load current of 2.2 A. The drive provides 2 analogue inputs and 1 analogue output for direct process feedback and control. Two digital outputs complement the design, with a 0–24 V DC voltage level to interface with external logic. An encoder input allows position feedback, and the drive supports both voltage and current control modes. Additional programmable functionality includes 2 programmable pulses, enabling advanced pulse–width modulation schemes. This combination of frequency conversion, precise feedback, and programmable I/O positions the FC-202P37KT4131B9041 as an adaptable solution for complex automation tasks.

Operational features focus on reliability and continuous performance. The drive’s Automatic Overtemperature Derating continuously monitors internal temperature via built-in sensors and adjusts switching frequency to regulate heat generation. When necessary, it will reduce output frequency and current by up to 30% to maintain stable operation and avoid trip events. Relay 01 supports AC-1 resistive loads up to 240 V AC at 2 A and DC-1 resistive loads up to 60 V DC at 1 A. Relay 02 handles AC-1 resistive loads up to 400 V AC at 2 A and DC-1 loads up to 80 V DC at 2 A. Minimum terminal load requirements of 24 V DC at 10 mA or 24 V AC at 20 mA ensure consistent switching for low-power control signals.

Integration into industrial automation systems is straightforward thanks to the drive’s comprehensive I/O, encoder interface, and programmable relays. The FC-202P37KT4131B9041 integrates seamlessly with PLCs, SCADA, and DCS platforms, enabling coordinated control of pumps, fans, conveyors, and water treatment processes. Its compact footprint and robust design meet the stringent requirements of manufacturing, food and beverage, and chemical processing applications. With precise speed control, thermal protection, and flexible communication options, this drive offers a reliable, energy-efficient solution for modern industrial environments.
