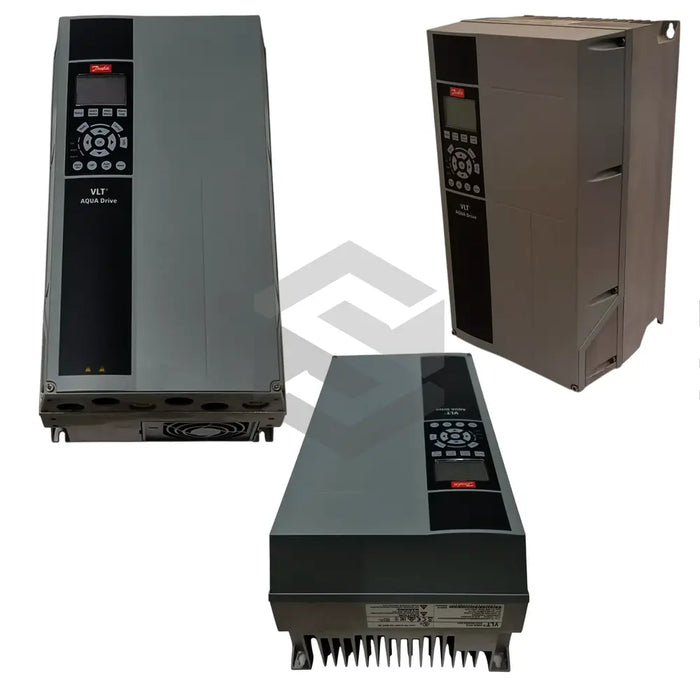

S image of FC-202P90KT6131U2670

FC-202P90KT6131U2670

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Danfoss FC-202P90KT6131U2670 from the VLT FC 202 AQUA Drives series is a robust industrial drive by Danfoss featuring a supply voltage range of 380-480 V: -15%(-25%) to +10% and a supply frequency of 50/60 Hz ~5%. It delivers up to 160% starting torque for 60 s and an output frequency of 0-500 Hz with 0-100% output voltage control. Rated for continuous input current of 14.4 A and housed to IP20 standards, this unit operates from -10 °C to 45 °C at altitudes up to 1000 m without derating. With an efficiency of 94.4–95.4% (Energy Efficiency Class IE2), it ensures energy savings and reliable performance in challenging environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cable Cross-section (max)

4 mm^2 (12 AWG)

Efficiency

Approximately 94.4% to 95.4% depending on load

Energy Efficiency Class

IE2

Housing Protection Rating

IP20

Ip Class

IP20

Maximum Altitude Without Derating

1000 m (3280 ft)

Maximum Input Current (continuous)

14.4 A

Operating Temperature

-10 degrees C (14 degrees F) to 45 degrees C (113 degrees F)

Output Frequency

0-500 Hz

Output Voltage

0-100% of supply voltage

Starting Torque

Maximum 160% for 60 s

Supply Frequency

50/60 Hz ~5%

Supply Voltage Range

380-480 V: -15% (-25%) to +10%
