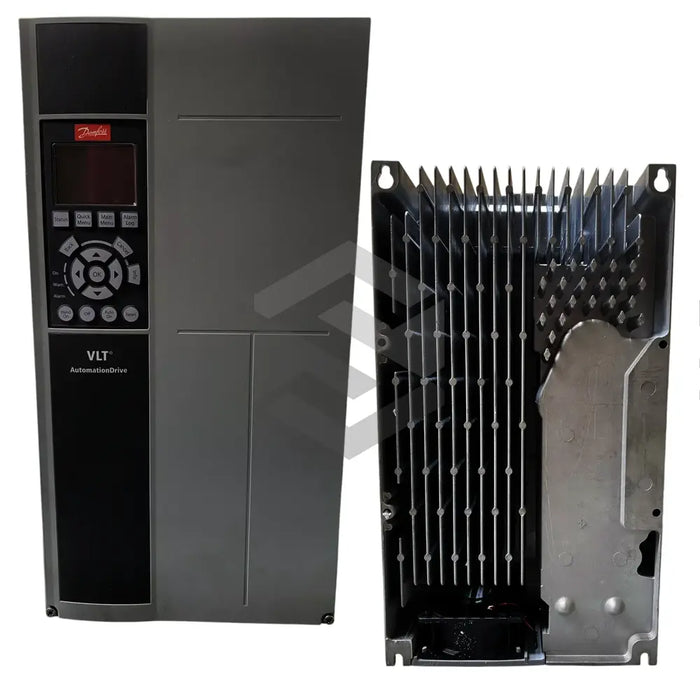

The FC-301P15KT4131X7314 is part of the VLT FC 301 Automation Drives series by Danfoss, delivering 20 HP power with 80 A current capacity. It accepts 380-480 VAC, operates at 50/60 Hz, and features an IP21/Type 1 enclosure. Equipped with a graphical display local panel, Class A1/B (C1) integrated RFI filter, and Brake Chopper, it maintains power loss of 25 W for efficient industrial operation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Brake Chopper
Included
Cross-section Of Conductor
25 mm²
Current
80 A
Dimensions
80 x 398 x 200 mm
Emc Level
Class A
Enclosure Rating
IP21 / Type 1
Frequency
50/60 Hz
Local Control Panel
Graphical display
Maximum Temperature
45°C
Power Loss
25 W
Power Rating
20 HP
Rated Leakage Current
35 mA
RFI Filter
Class A1/B (C1) integrated
Voltage
380-480 VAC
Weight
6 kg
