S image of FC-301P30KT2131F0578

FC-301P30KT2131F0578

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

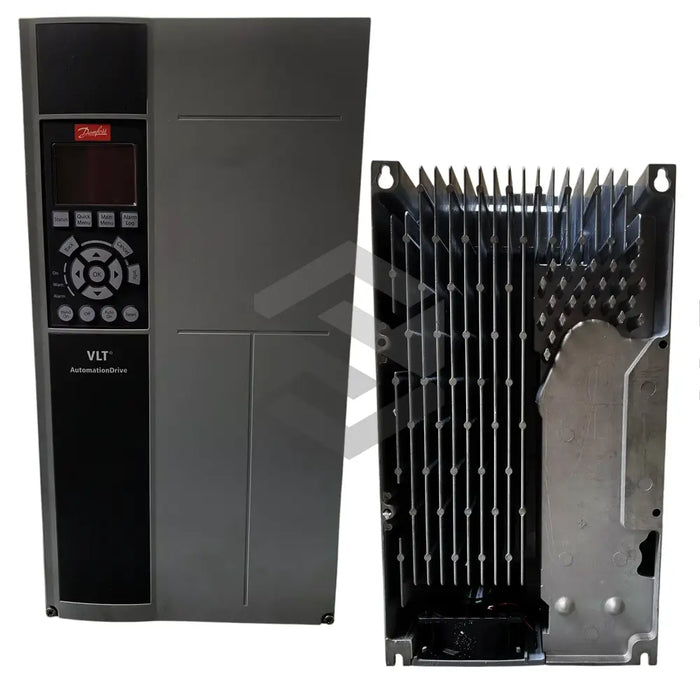

The Danfoss FC-301P30KT2131F0578 drive, part of the VLT FC 301 Automation Drives series by Danfoss, is engineered to deliver robust performance for demanding industrial automation applications. This model supports a wide supply voltage range of 3 x 200-240 V, 3 x 380-500 V, 3 x 525-600 V, and 3 x 525-690 V, accommodating power requirements from 0.25 to 1.4 MW. It provides a continuous output current of up to 42.5 A at 3-phase 380–480 V and an intermittent overload current capability up to 63.8 A for peak load handling. With an impressive efficiency of up to 98.0%, energy losses are minimized to support sustainable operations. The drive is housed in an enclosure rated IP20, IP21, NEMA Type 1, ensuring basic protection against foreign objects and light water spray. Its compact footprint (strong>height up to 520 mm, width up to 170 mm, depth up to 260 mm) and modest weight of up to 12.5 kg simplify installation in confined control panels.

Performance characteristics are optimized through integrated DC chokes, delivering effective harmonic mitigation to improve power quality and reduce electrical noise. The unit handles a maximum input current of up to 41.5 A for 3 x 441–480 V supplies, enabling stable operation under fluctuating line conditions. Precise motor control is achieved with control accuracy of up to ±0.1% of rated speed, ensuring repeatable processes for conveyor, pump, and fan applications. Built-in data logging records operational parameters for diagnostic review and predictive maintenance. A robust power interface accommodates cables up to 16 mm² cross-section, supporting high current pathways with minimal losses.

Designed for reliability in harsh environments, the FC-301P30KT2131F0578 operates continuously in ambient temperatures from –10°C to +50°C without derating. Integrated safety functions including Safe Stop 1 (SS1) and Safe Limited Speed (SLS) provide advanced protection for personnel and machinery. The drive’s modular architecture allows seamless integration into existing PLC and SCADA systems, supporting industry-standard fieldbus protocols. Its durable enclosure and compact size facilitate retrofit into varied industrial settings, from material handling to packaging and water treatment. With Danfoss’s proven VLT platform, this drive ensures consistent uptime and simplified lifecycle support for demanding automation installations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Control Accuracy

Up to ±0.1% of rated speed

Data Logging

Yes

Dimensions

Height up to 520 mm, Width up to 170 mm, Depth up to 260 mm

Efficiency

Up to 98.0%

Enclosure Protection Rating

IP20, IP21, NEMA Type 1

Harmonic Mitigation

Integrated DC choke

Intermittent Output Current

Overload current up to 63.8 A

Max Cable Cross-section

16 mm²

Maximum Input Current

Up to 41.5 A for 3x441–480 V

Operating Temperature

-10°C to +50°C

Output Current

Continuous output current up to 42.5 A at 3-phase 380–480 V

Power Range

0.25-1.4 MW

Safety Features

Safe Stop 1 (SS1) and Safe Limited Speed (SLS)

Supply Voltage

3 x 200-240 V, 3 x 380-500 V, 3 x 525-600 V, 3 x 525-690 V

Weight

Up to 12.5 kg
