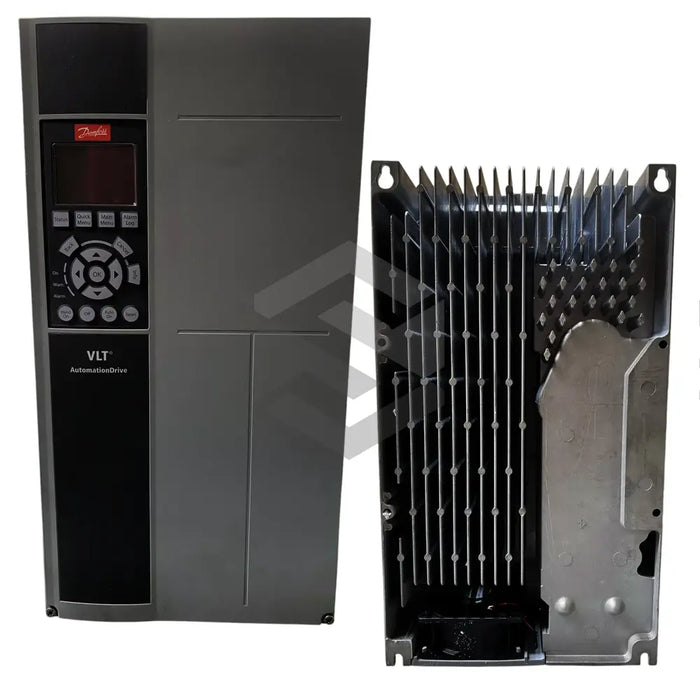

S image of FC-301P3K7T2131G4529

FC-301P3K7T2131G4529

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The FC-301P3K7T2131G4529 from Danfoss supports supply voltages of 3×200–240 V to 3×525–690 V and features a power range of 0.25–37 kW up to 1.4 MW. As part of the VLT FC 301 Automation Drives, it delivers automatic derating based on temperature and load and achieves a switching frequency of 6 kHz in K1–K3 enclosures.

It offers 99.98% filtration efficiency at 10 μm and includes manual derating for altitudes above 1000 m and cULus approval. Housed in a K3 enclosure, it weighs 4.6 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

12-pulse Drive (380-500 V)

250 kW-1 MW

12-pulse Drive (525-690 V)

250 kW-1.4 MW

Automatic Derating

Adjusts based on temperature and load

cULus

Approved

Dimensions (K3)

H: 272.5 mm; W: 115 mm; D: 168 mm

Enclosure Sizes

K1, K2, K3, K4, K5

Filtration Efficiency

99.98% at 10 μm

Low Harmonic Drive (380-480 V)

132-450 kW

Manual Derating

For altitudes above 1000 m

Mounting Holes (K3)

a: 260 mm; b: 90 mm

Power Range

0.25 kW-1.4 MW

Supply Voltages

3 x 200-240 V; 3 x 380-500 V; 3 x 525-600 V; 3 x 525-690 V

Switching Frequency

6 kHz (K1–K3); 5 kHz (K4–K5)

Weight (K3)

4.6 kg
