FC-302P15KT5E20H2BGXXXXSXXXXAXBXCXXXXDX
by Danfoss

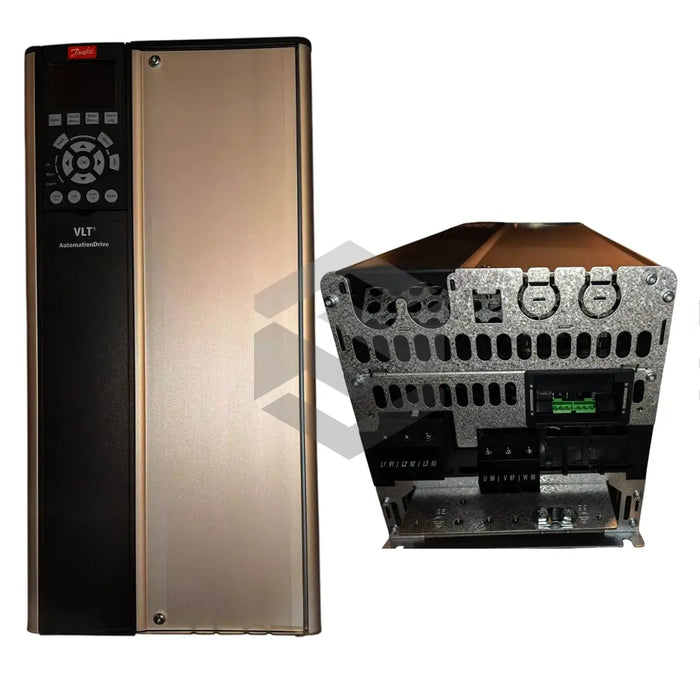

The Danfoss FC-302P15KT5E20H2BGXXXXSXXXXAXBXCXXXXDX drive is a member of the VLT FC 302 Automation Drives series by Danfoss. Engineered as a high-performance industrial automation drive, it delivers a rated power of 15 kW (20 HP) and operates within a voltage range of 380 – 500 V AC. Featuring a three-phase configuration and an IP20 chassis, this unit is designed to provide reliable motor control while safeguarding internal components from direct contact with solid objects. The integrated Class A2 (C3) RFI filter ensures compliance with electromagnetic interference standards for consistent operation in electrically noisy environments.
Incorporating advanced technical specifications, this drive supports a switchable supply frequency of 50/60 Hz and offers an extensive output frequency range from 0 to 590 Hz for precise speed regulation. The unit achieves a true power factor (λ) of 0.92 nominal at rated load, maximizing energy efficiency. It includes an onboard brake chopper for enhanced dynamic load management and braking performance, alongside 2 analog inputs (configurable for voltage or current) and 4 programmable digital inputs (PNP/NPN logic) to facilitate versatile control schemes. The non-coated PCB coating enhances long-term reliability in standard industrial environments.
Additional features emphasize ease of use and installation: the graphical control panel provides intuitive drive configuration and real-time monitoring, while the compact housing size B3 reduces panel footprint. The robust IP20 enclosure delivers basic protection against access to hazardous parts and solid foreign objects, ensuring durability on the factory floor. Combined, these attributes make the FC-302P15KT5E20H2BGXXXXSXXXXAXBXCXXXXDX an ideal solution for industrial automation applications requiring precise motor control, reduced maintenance, and enhanced operational uptime.
