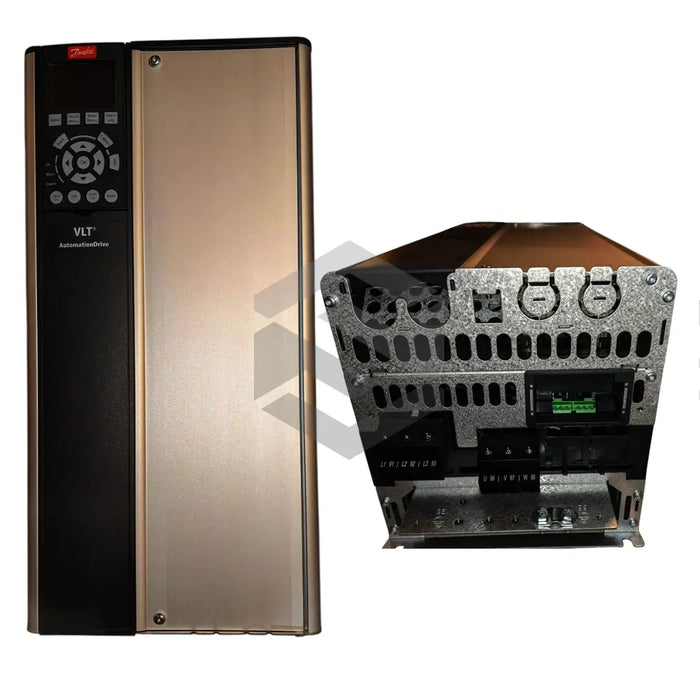

FC-302P45KT6131N4634HXBGXXXXSXXXXAXBXCXXXXDX
by Danfoss
The Danfoss FC-302P45KT6131N4634HXBGXXXXSXXXXAXBXCXXXXDX is a high-performance frequency inverter from the renowned Danfoss lineup, belonging to the VLT FC 302 Automation Drives series. Designed for precise motor control in demanding industrial automation applications, this drive delivers a Power Rating of 45 kW and features an Enclosure Rating of IP66 (NEMA 4X) for exceptional protection against dust, water jets, and external contaminants. With a continuous current capacity of 80 A and a compact footprint measuring 80 x 398 x 200 mm, it is ideally suited for space-constrained control cabinets and harsh production environments.
In terms of technical specifications, the FC-302P45KT6131N4634HXBGXXXXSXXXXAXBXCXXXXDX offers an Output Frequency range of 0–590 Hz and operates on standard 50/60 Hz power supplies. The drive’s Operating Temperature range spans from –10°C to 50°C without derating, while its Maximum Temperature rating of 45°C ensures reliable performance in elevated ambient conditions. Advanced thermal management is provided by a Back-channel cooling method within the C1 frame size, minimizing power loss (only 25 W) and maintaining optimal internal temperatures. Electromagnetic compatibility is assured by its Class A EMC Level, while a Rated Leakage Current of 35 mA enhances safety and reduces electromagnetic interference.
Built for durability and efficiency, this variable frequency drive supports conductor cross-sections up to 25 mm² and weighs just 6 kg, simplifying installation and maintenance. Its IP66 enclosure rating meets rigorous industrial and wash-down standards, enabling operation in non-condensing environments with relative humidity from 5 % to 95 %. Compliance with global safety and EMC regulations ensures seamless integration into existing systems. By combining robust ingress protection, precise speed and torque control, and energy-efficient operation, the FC-302P45KT6131N4634HXBGXXXXSXXXXAXBXCXXXXDX drive delivers superior reliability and productivity in a wide range of industrial automation applications.
