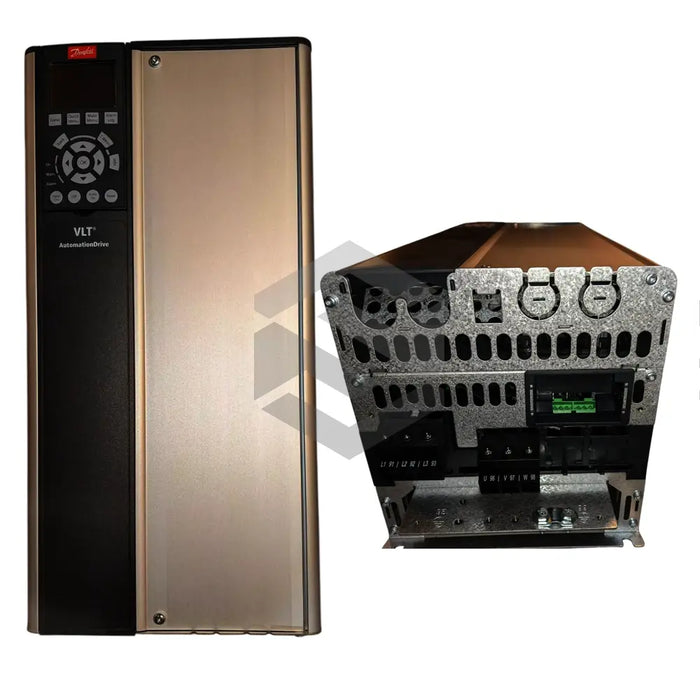

FC-302PK37T5131B0412H2XGXXXXSXXXXAXBXCXXXXDX
by Danfoss
The FC-302PK37T5131B0412H2XGXXXXSXXXXAXBXCXXXXDX from Danfoss is a high-efficiency frequency converter in the VLT FC 302 Automation Drives series, designed to meet the rigorous demands of industrial automation. This model delivers a Frequency Converter Typical Shaft Output of 0.37 kW (0.5 hp), achieving a remarkable Efficiency of 96.0% to minimize energy consumption. Constructed with an Enclosure Protection Rating of IP20, it is protected against solid objects greater than 12.5 mm while ensuring adequate ventilation for thermal management. With an estimated Estimated Power Loss At Rated Maximum Load of just 20.9 W, the FC-302PK37T5131B0412H2XGXXXXSXXXXAXBXCXXXXDX offers exceptional performance stability and reliable operation in continuous duty cycles.
The drive’s electrical performance is highlighted by its Continuous Kva (400 V Ac) and Continuous Kva (480 V Ac) ratings, both at 0.9 kVA, demonstrating consistent VA demands across standard voltage supplies. Its Output Current Continuous (3x380–440 V) of 1.2 A and Output Current Continuous (3x441–480 V) of 1.1 A ensure steady torque delivery for a variety of motor loads. On the input side, the unit handles a Maximum Input Current Continuous (3x380–440 V) of 1.2 A and Maximum Input Current Continuous (3x441–480 V) of 1.0 A, providing flexibility in installation across different supply networks. These current specifications underscore the drive’s adaptability to fluctuating line voltages while maintaining stable output characteristics.
Operationally, the drive benefits from its IP20 enclosure by allowing front or side mounting in compact enclosures with sufficient airflow, reducing cabinet space and installation complexity. The minimal Estimated Power Loss At Rated Maximum Load aids thermal control, permitting reliable operation without oversized cooling provisions. Its low-noise cooling system and robust internal components extend maintenance intervals and reduce downtime, supporting continuous production. The combination of high Efficiency, precise current handling, and low power dissipation translates into reduced operating expenses and enhanced system uptime for industrial processes.
Integration of the FC-302PK37T5131B0412H2XGXXXXSXXXXAXBXCXXXXDX is seamless within existing Danfoss control architectures, as it pairs natively with VLT AutomationDrive peripherals and monitoring tools. Its standard supply voltage compatibility (3x380–440 V and 3x441–480 V) simplifies retrofits and new installations in manufacturing cells, conveyors, pumps, and fans. The drive’s compact footprint and 2.3 kg (5.1 lb) weight facilitate installation in distributed drive concepts, enabling modular machine designs. Ideal for OEMs and system integrators, this converter offers a balanced combination of performance, reliability, and energy efficiency for modern industrial automation applications.
