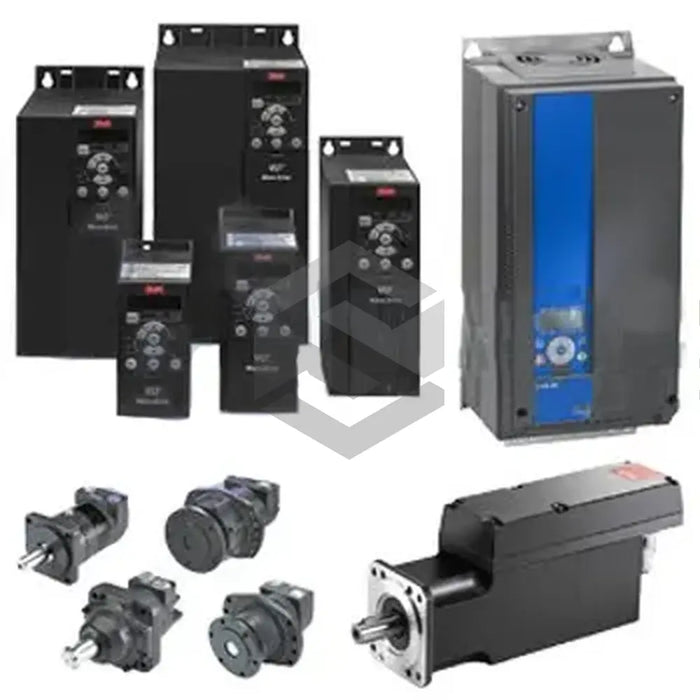

manufacturer image of VLT3016

VLT3016

by Danfoss
$2,733.09 - $2,733.09
$2,733.09
$2,733.09 - $2,733.09
$2,733.09
Available, Shipping Varies
The VLT3016, produced by Danfoss, is a widely utilized frequency converter, replete with a variety of functions for diverse applications. By rectifying AC voltage to DC and subsequently transforming it back to variable amplitude and frequency AC, the product provides precise speed control through three phase asynchronous motors. Key features of the VLT3016 include a constant load of Nominal [HP] – 15, continuous output current of 24 Amps, maximum motor capacity of 20 HP, maximum cable length of 1000 feet when unshielded, and built-in electronic thermal protection. It has an intermittent Amps (60s) of 38.4, output voltage[%] of 0-100 of AC line voltage, programmable output frequency[Hz] of 0-120 or 0-500, and rated motor voltage[V] of 380/400/415. The device also includes motor coils to support the use of lengthy motor cables, offering safety features like short-circuit and earth fault protection, as well as unlimited output frequency converter switching.
30 Day Warranty
Technical Specifications
  • Product Brand: Danfoss
  • Product Model: VLT3016
  • Product Type: Frequency Converter
  • Control Principle: Rectifies AC voltage to DC, Converts DC to AC
  • Load: 15 Nominal [HP]
  • Output Current: 24.0 continuous Amps
  • Maximum Motor Size: 20 [HP]
  • Maximum Wire Size: 6 [AWG]
  • Maximum Motor Cable Length: 1000 feet
  • Built in Thermal Protection: Electronic, Features thermistor acc. to DIN44081
  • Maximum Input: 23.4
  • Maximum Current: 30
  • Maximum Prefuses: 6
  • Ramp Times: 0.1 to 3600
  • Intermittent Amps (60 seconds): 38.4
  • Output Voltage: 0-100% of AC line voltage
  • Output Frequency: 0-120Hz or 0-500Hz, Programmable
  • Rated Motor Voltage: 380 / 400 / 415 V
  • Cable Protection: Short-circuit and Earth Fault protection
  • MCoil Feature: Allows use of longer motor cables and unlimited switching at output of frequency converter
