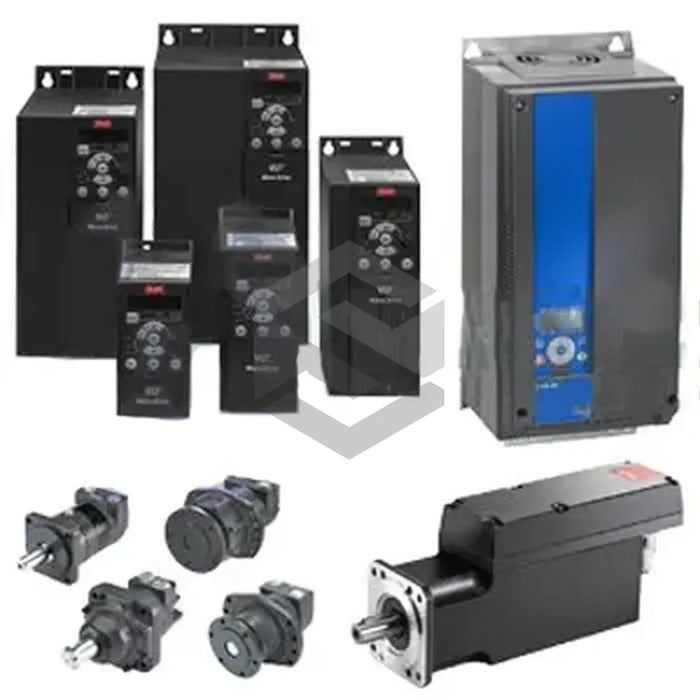

manufacturer image of VLT6000H34

VLT6000H34

by Danfoss
Request a quote
The VLT6000H34, a product of European engineering group Danfoss, is an adjustable frequency drive belonging to the VLT 6000 series. Operating on an input voltage of 460 volts, this drive has the capability to produce a nominal output of 25 horsepower and a maximum output current of 34 Amperes. It is compatible with a JJS or KTS-R Bussman fuse, rated at 50 amps, making the drive suitable for high-power applications up to 500V or 100,000 RMS output. The installation of the VLT6000H34 requires it to be vertically mounted flush to the wall, requiring top and bottom clearances of 8 and 9 inches respectively. This design aligns with the NEMA 12 standard, protecting against solid objects and non-corrosive liquids. The front panel is equipped with switches, a button RFI switch, load-sharing connection points, and a 3-phase motor connection point.
30 Day Warranty
Technical Specifications
  • Manufacturer: Danfoss
  • Series: VLT 6000
  • Model Number: VLT6000H34
  • Input Voltage: 460 volts
  • Nominal Output: 25 horsepower
  • Maximum Output Current: 34 Amperes
  • Fuse Type and Rating: JJS or KTS-R Bussman, 50 amps
  • Suitable for Circuits: Up to 500V or 100,000 RMS
  • Operating Input Current: 34 amperes
  • Wire Gage: 6 AWG (max)
  • Type: 6027
  • Mounting: Flush to wall
  • Top Clearance: 8 inches
  • Bottom Clearance: 9 inches
  • Mounting Orientation: Vertically, front panel door opening right to left
  • Front Panel Features: Switches 1-4, Line L1 through L3, push button RFI switch, load sharing connecting points, 3-phase motor connection point, secured bottom via screw
  • NEMA Standard: 12.
