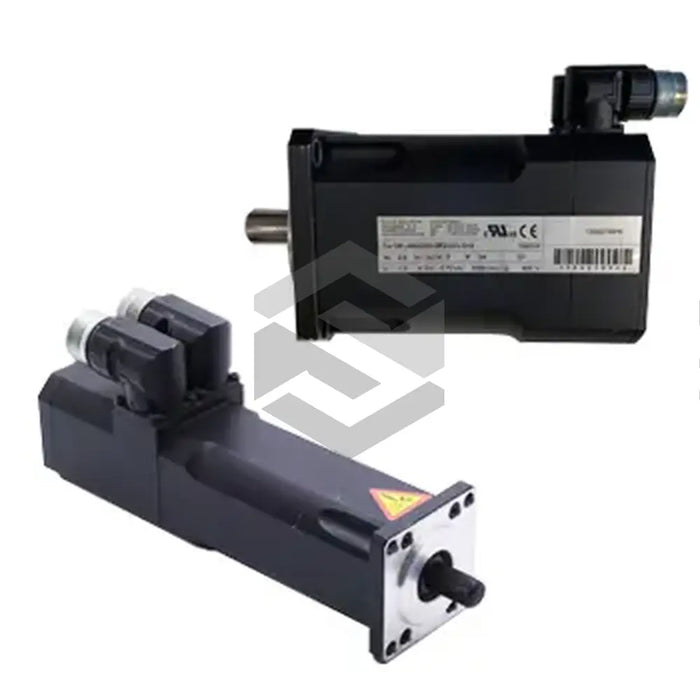

SBL2-0080-45/T0MVUS2

Name: SBL2-0080-45/T0MVUS2
Brand: Kollmorgen
Price: 2516.2 USD
Availability: InStock

by Kollmorgen

$2,516.20 - $2,516.20

$2,516.20

$2,516.20 - $2,516.20

$2,516.20

The SBL2-0080-45/T0MVUS2 is a DBL Synchronous Servomotors series servo motor from Kollmorgen operating at 4500 RPM with a rated torque of 0.72 Nm and peak torque of 6.8 Nm. It runs on 380–480 VAC with a torque constant of 0.54 Nm/A and uses V/Hz control. Continuous stall torque is 0.8 Nm at 1.45 A, supporting a usable output current of 4 A. Built-in Safe Torque Off and a 5 kHz PWM frequency ensure precise, safe operation in industrial automation.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Built-in Safety Features

Safe Torque Off

Continuous Stall Torque (M₀)

0.8 Nm

Control Mode

V/Hz Control

Current at Rated Torque (Iₙ)

1.45 A

Input Voltage Range

380 to 480 VAC

Maximum Peak Torque (Mₘₐₓ)

6.8 Nm

Pulse Width Modulation Frequency

5 kHz

Rated Speed (nₙ)

4500 min⁻¹ (RPM)

Rated Torque (Mₙ)

0.72 Nm

Rj-45 Port

For communication

Rotor Inertia (J)

0.014 × 10⁻³ kgm²

Thermal Dissipation

20 W

Torque Constant (Kₘ)

0.54 Nm/A

Usable Output Current

4 A

Weight Without Brake (m)

1.45 kg
