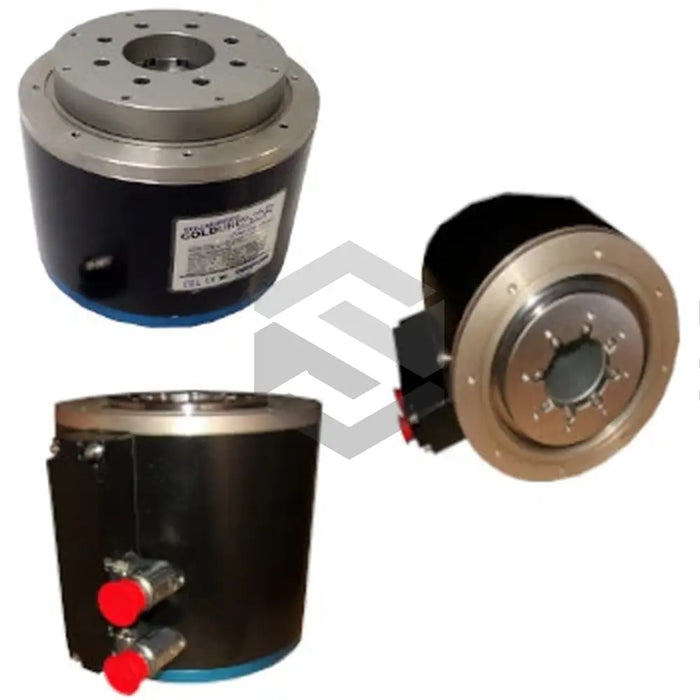

series image of DH083A-13-1210

DH083A-13-1210

by Kollmorgen
$18,900.00 - $18,900.00
$18,900.00
$18,900.00 - $18,900.00
$18,900.00
In Stock, Ships 3 - 5 Days
The DH083A-13-1210, produced by Kollmorgen, is a Housed Direct Drive Rotary (DDR) motor known for its precision and robust performance. Operating at 400/480 volts, it features a four-frame size and a durable cross-roller bearing, adhering to the IP67 standard. This DDR motor offers continuous torque ranging from 5.8 Nm to 339 Nm and benefits from a high-pole count enhancing its torque output. It incorporates a high-resolution sine encoder with 134,217,728 counts at 27 bits, ensuring high feedback accuracy of +/- 26 arc-seconds and repeatability of less than one arc-second. The motor's inertia capacity is 20 kg-m², capable of a 3.5-degree movement. Noteworthy features include superior mechanical indexing, zero degradation in accuracy, instant stopping upon processor error, and reduced audible noise. The DH083A-13-1210 excels in applications demanding precision and reliability, offering effective acceleration, speed, and indexing.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Model: DH083A-13-1210
  • Type: Housed Direct Drive Rotary Motor
  • Voltage Capability: 400/480 volts
  • Frame Size: Four-frame size
  • Bearing Type: Cross-roller bearing with dual bearing option
  • Protection Standard: IP67
  • Torque Range: 5.8 Nm (4.3 lb-ft) to 339 Nm (250 lb-ft)
  • Torque Output: Augmented with high-pole count design
  • Encoder Type: High-resolution sine encoder
  • Encoder Resolution: 134,217,728 counts at 27 bits
  • Feedback Accuracy: +/- 26 arc-seconds
  • Repeatability: Better than one arc second
  • Inertia Capacity: 20 kg-m2
  • Operational Movement: 3.5 degrees
  • Noise Reduction: Reduced audible noise
  • Acceleration: Adequate
  • Speed: Adequate
  • Index Angle: Adequate
  • Simplicity: High
  • Stops on Processor Error: Yes
  • Applications: Precision and strength-requiring applications.
