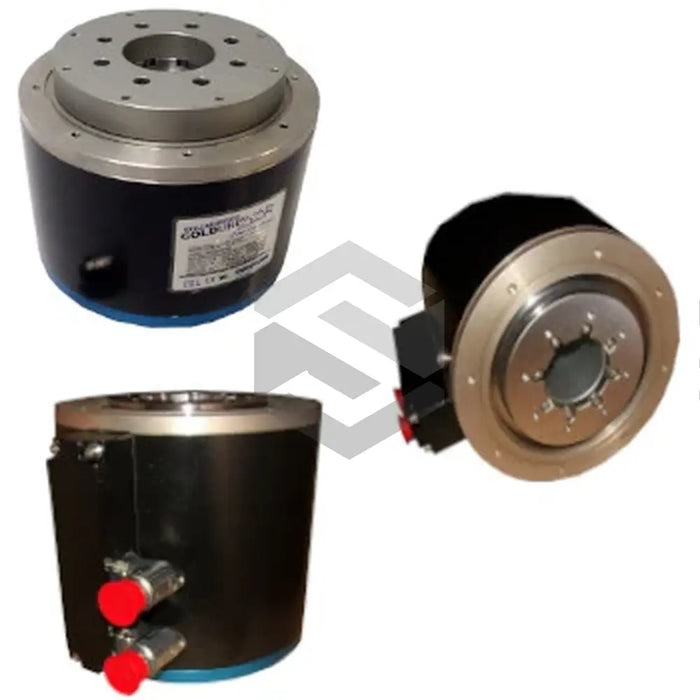

DH083A-13-1217-009

The Kollmorgen DH083A-13-1217-009 is a high-performance direct drive motor in the DDR Direct Drive Motors series designed to meet the stringent demands of industrial automation. Manufactured by Kollmorgen, this compact unit delivers exceptional power density while minimizing mechanical complexity. Operating on 320 VDC input voltage, the motor achieves outstanding dynamic response and sustained torque without relying on a gearbox. The robust construction incorporates a self-contained cooling mechanism and corrosion-resistant housing to ensure reliable operation in harsh environments. With flexibility in mounting and electrical connection options, the DH083A-13-1217-009 simplifies integration into diverse machine architectures.

The DH083A-13-1217-009 offers a comprehensive suite of technical specifications tailored for precision motion control. It operates at 320 VDC and sustains an efficiency of ≥ 95% under rated load conditions, reducing energy consumption. The motor accelerates at up to 50 rad/s², enabling rapid speed changes for dynamic processes. Critical parameters include a protection class of IP65 (configurable) for dust and low-pressure water ingress and an ambient operating temperature range of -25°C to 85°C. The unit can be stored between -40°C and 100°C without performance degradation. Its self-cooled design eliminates the need for external fans or heat exchangers, while aluminum alloy construction balances strength and weight. Flexible mounting options via various flanges and multiple connection types—flying leads or connector—accommodate different installation requirements. The motor uses high-energy permanent magnets to achieve continuous torque, and it is rated for a life expectancy of >20,000 h under nominal conditions. Model-dependent parameters such as rated current, rated speed, and rated torque allow customization to specific application demands.

Operational performance of the DH083A-13-1217-009 emphasizes long-term reliability and responsive control. The integrated self-cooling mechanism maintains optimal winding and magnet temperatures, ensuring stable operation across extended duty cycles. Its high acceleration capability delivers precise positioning without compromise, and the direct drive architecture eliminates backlash and mechanical play. The superior efficiency rating minimizes heat generation and reduces the need for auxiliary cooling, lowering maintenance requirements. With a life expectancy exceeding 20,000 h, this motor supports continuous operation in production environments without frequent overhauls.

System integration is streamlined through Kollmorgen’s comprehensive servo drive ecosystem, supporting industry-standard communication protocols for seamless control. The motor’s configurable IP65 protection class and multiple flange options facilitate installation in assembly lines, robotics, packaging machinery, and medical equipment. Its direct drive performance is especially suited for applications requiring high torque at low speed and ultra-precise motion. Together, the Kollmorgen DH083A-13-1217-009, direct drive architecture, and flexible connectivity deliver a turnkey solution for advanced industrial automation systems.
