series image of DDS02.1-A050-DS01-02-FW

DDS02.1-A050-DS01-02-FW

by Bosch Rexroth Indramat
$2,997.00 - $2,997.00
$2,997.00
$2,997.00 - $2,997.00
$2,997.00
Available, Shipping Varies

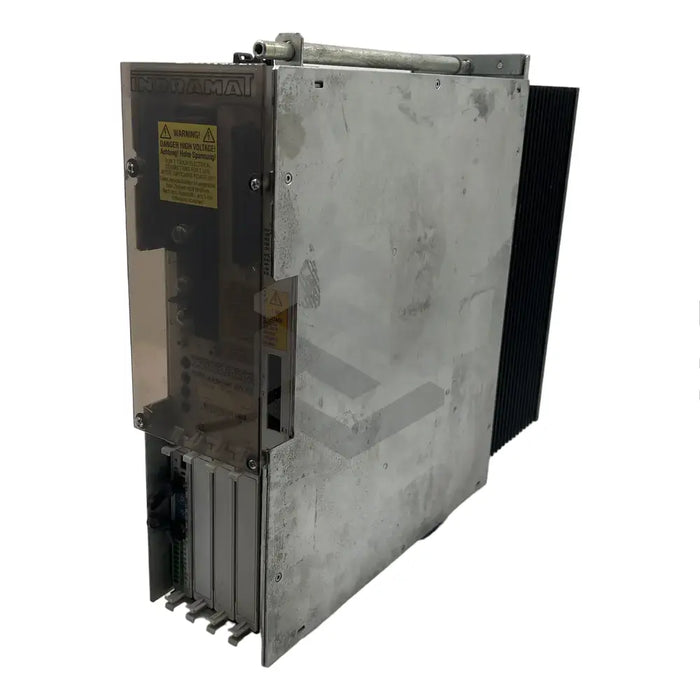

Produced by Bosch Rexroth Indramat, the DDS02.1-A050-DS01-02-FW is a high-performance, pre-configured drive controller designed for a variety of applications. This version 1, series 2 unit includes all necessary software, hardware, and firmware for operation. Key components feature a communication module, an auxiliary plugin module, and a software module, which stores drive parameters and firmware information. The DDS02.1-A050-DS01-02-FW uses an innovative air control cabinet cooling system, a digital servo motor feedback mechanism, and boasts a rated current of 50 Amperes. The unit operates with a SERCOS interface communication module that interfaces with like controls via a fiber optic cable, and has a DC bus voltage of 300 volts. The drive controller, labeled with a protection category of IP20, has a maximum air humidity tolerance of 25 grams/m3 and an allowable operating temperature of 0-45 degrees C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model Name: DDS02.1-A050-DS01-02-FW
  • Design: Modular
  • Version: Version 1
  • Series: Series 2
  • Functionality Control: Firmware
  • Cooling Type: Air from outside of cabinet
  • Feedback Mechanism: Digital Servo Motor
  • Rated Current: 50 Amperes
  • Communication: SERCOS Interface through Fiber Optic Cable
  • DC Bus Voltage: 300 Volts (+/- 15 percent)
  • Continuous Current: 50 Amperes
  • Peak Current: 50 Amperes
  • Current Consumption: 40 mA at +24 Volts DC
  • Protection Category: IP 20
  • Absolute Air Humidity Maximum: 25 grams/m3
  • Relative Humidity Maximum: 95 %
  • Operating Temperature: 0 to 45 degrees C
  • Transport and Storage Temperature: -30 to 85 degrees C
  • Firmware: Purchased separately.
