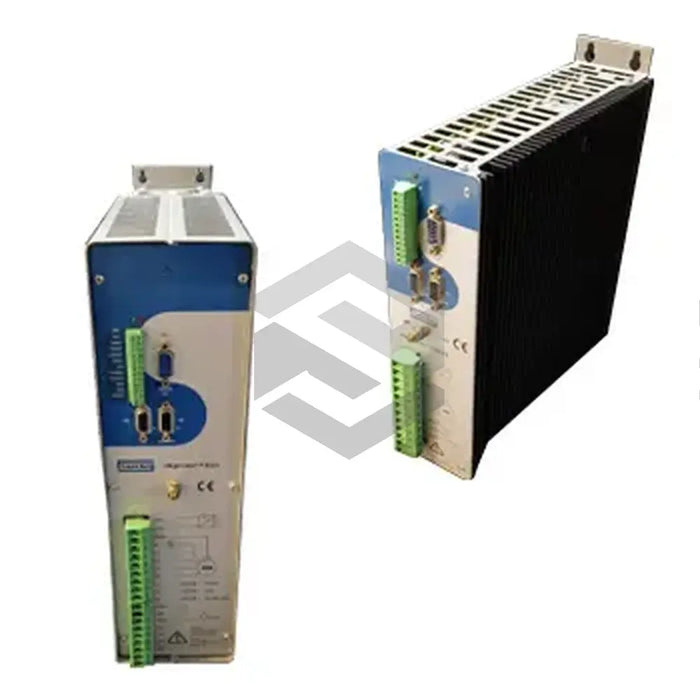

S image of digifas 7202-L2/DP

digifas 7202-L2/DP

by Kollmorgen
$1,259.31 - $1,259.31
$1,259.31
$1,259.31 - $1,259.31
$1,259.31

Available, Shipping Varies

The Kollmorgen digifas 7202-L2/DP, a digital servo amplifier from the 7200 series, delivers a rated power input of 80 to 400 Volts AC and a load of 1.7 kVA. This Profibus Connect version supports both Profibus-DP connection and positional control functionality, offering an output current of 2.8 Amps and a peak of 5.6 Amps. The amplifier features a switch-on threshold of 720 Amps and a switch-off threshold of 680 Amps in its ballast circuit, along with a pulse power of 3.2 kilowatts for one second. Notably, it can be programmed using the BS7200 operator software via a computer's parallel port. Featuring 9-pin sub-D sockets for resolver and PC interfaces, the lightweight 2.1 kg amplifier attains dimensions of 275 x 71 x 235 mm. The ideal ambient temperature for servo operation ranges from 0 to 45 degrees Celsius, with a derate of 2.5% per K beyond 45 degrees.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Series

digifas 7200

Product Model

7202-L2/DP

Product Type

Digital Servo Amplifier

Supported Controls (Standard Version)

4 current types, analog speed set-point, incremental position output, holding brake

Position Control (Standard Version)

Not Supported

Supported Controls (Profibus Connect Version)

connection to Profibus-DP, four current types, digital setpoint input, positional control in the amplifier, motor-holding brake

Programming Method

Parallel port of a computer running the BS7200 operator software

Power Input

80 to 400 Volts AC (three-phase, 50 to 60 Hertz)

Rated Load

1.7 kVA

Intermediate Circuit Voltage

560 Volts

Output Current

2.8 Amps

Peak Current Output

5.6 Amps

Switch-On Threshold (Ballast Circuit)

720 Amps

Switch-Off Threshold (Ballast Circuit)

680 Amps

Pulse Power (Ballast Circuit)

3.2 kilowatts for 1 second

Internal Continuous Power (Ballast Circuit)

75 Watts

Interfaces

Resolver: Sub-D 9-pin socket, PC: Sub-D 9-pin socket, Profibus: Sub-D 9-pin socket

Weight

2.1 kilograms

Dimensions

275 x 71 x 235 millimeters

Ambient Temperature Range for Operation

0 to 45 degrees Celsius

Output Derate Temperature Range

45 to 55 degrees Celsius, at a rate of 2.5% per K.
