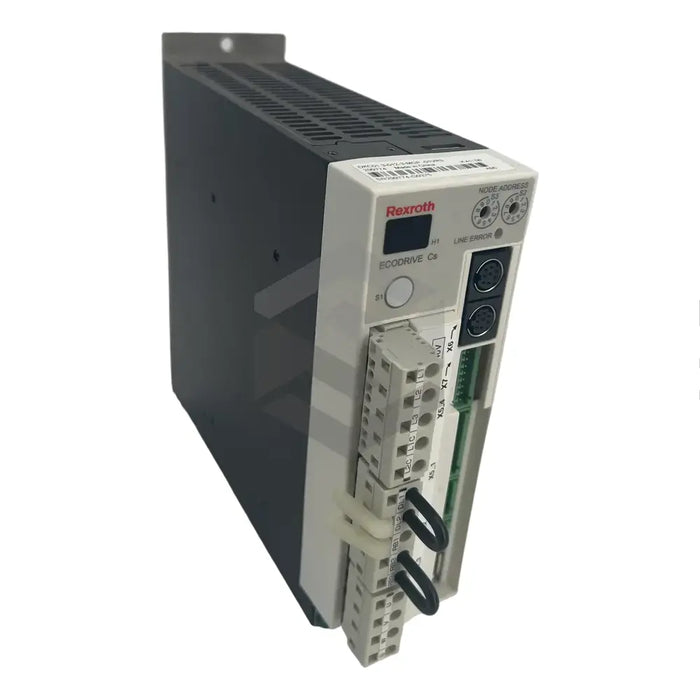

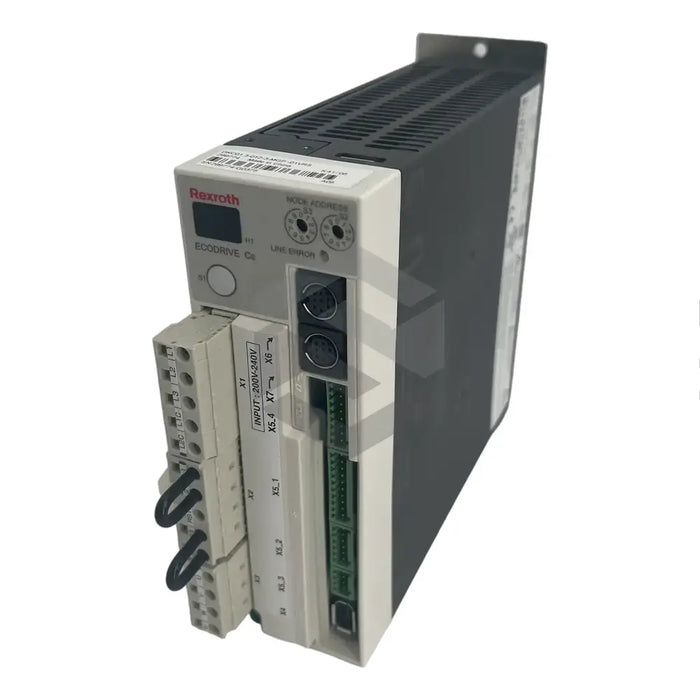

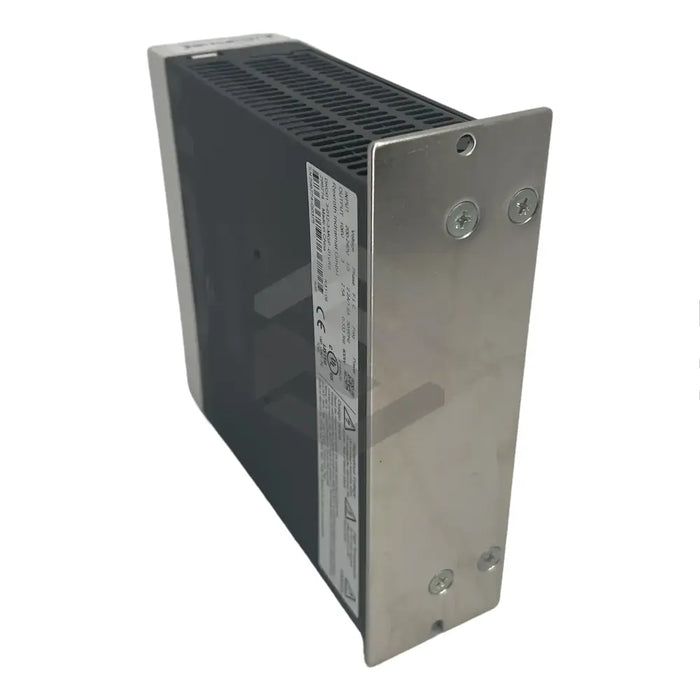

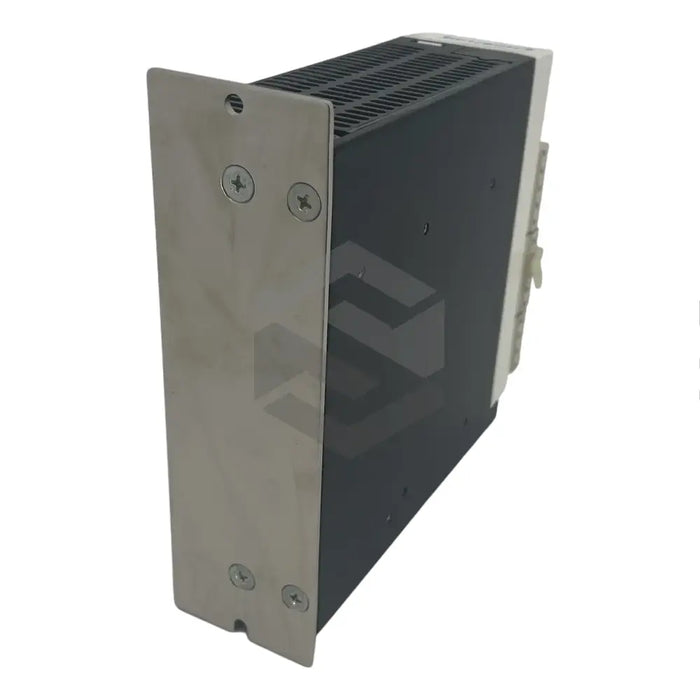

product Main (Front Left) image of DKC01.3-012-3-MGP-01VRS

DKC01.3-012-3-MGP-01VRS

by Bosch Rexroth Indramat
$5,501.00 - $5,501.00
$5,501.00
$5,501.00 - $5,501.00
$5,501.00
In Stock, Shipping Varies
The DKC01.3-012-3-MGP-01VRS by Bosch Rexroth Indramat is a member of the esteemed DKC drive controllers series. It accommodates a 12A current and operates within a 3 voltage category, harnessing an integrated branch circuit protection system to prevent overcurrent. This unit relies on careful placement and proper spacing for cooling and air circulation, but users must avoid positioning the unit where potential condensation could drip onto electronic components. Offering a balanced blend of high functionality and cost-efficiency, this model is a popular inclusion in diverse applications. It finds its use as an integrated position control servo drive, or a stepper interface servo drive. The unit accepts 3 x AC 230 mains input voltage and holds a maximum connection voltage of 3.2 KVA. The DKC01.3-012-3-MGP-01VRS operates ideally with ambient conditions of 0-45°C, storage and transport of -30 to 85°C, up to an elevation of 1000 meters above sea level, and weighs 4.4 kg.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: DKC Series
  • Model Number: DKC01.3-012-3-MGP-01VRS
  • Current: 12 A
  • Voltage Category: 3
  • In-built Protection: Branch Circuit
  • Cooling Method: Blower (Condensation)
  • Application: Servo Drive/Stepper Interface
  • Input Voltage: 3 x AC 230
  • Maximum Connection Voltage: 3.2 KVA
  • Main Frequency: 50/60Hz
  • Switching Frequency: 4 or 8 kHz
  • Rated Current: 30 A
  • Peak Current: 30 A
  • Operating Temperature: 0 to 45 degrees
  • Storage Temperature: -30 to 85 degrees
  • Installation Elevation: 1000 meters above sea level
  • Maximum Humidity: 95%
  • Weight: 4.4 kg
