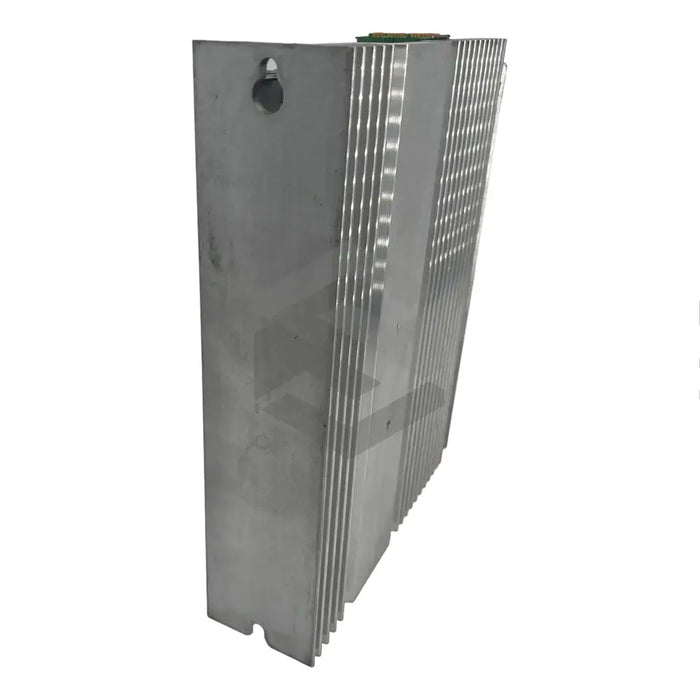

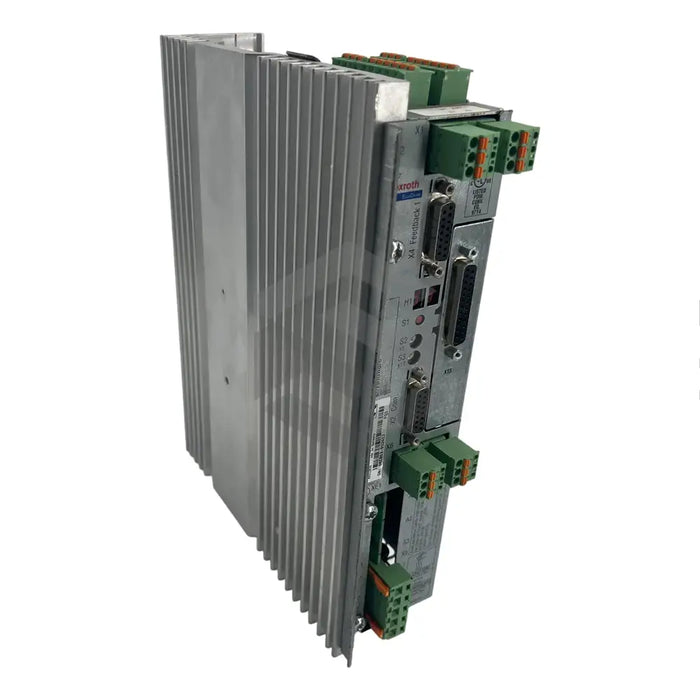

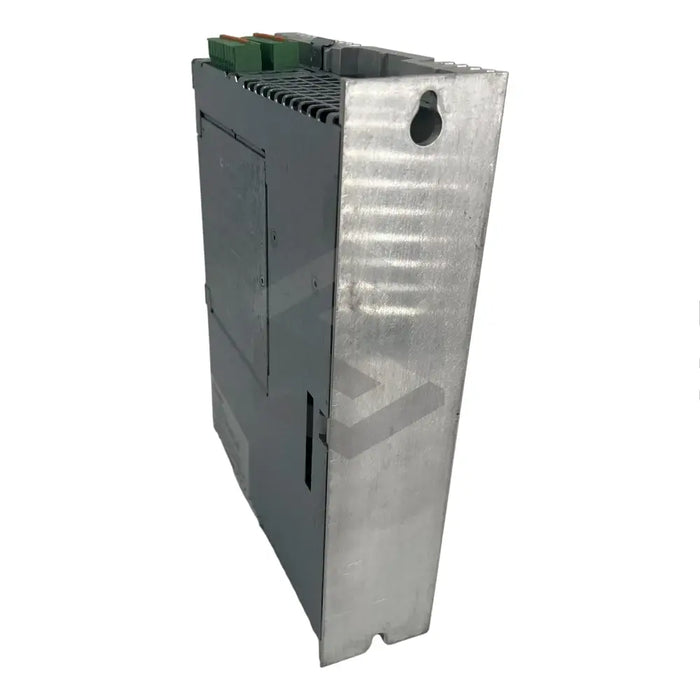

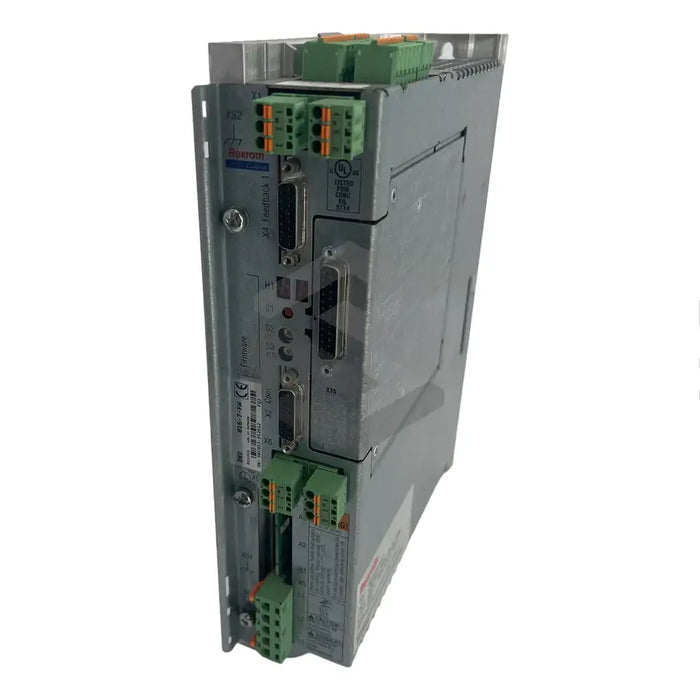

product Main (Front Left) image of DKC01.3-016-7-FW

DKC01.3-016-7-FW

by Bosch Rexroth Indramat
$6,319.14 - $6,319.14
$6,319.14
$6,319.14 - $6,319.14
$6,319.14
In Stock, Shipping Varies
The DKC01.3-016-7-FW is a drive controller from Bosch Rexroth Indramat's ECODRIVE series. It's specifically designed for various applications, such as machine tools and industrial robotics. This 4.4 kg unit is equipped to operate in environments up to a maximum height of 1000 meters above sea level, relative humidity of 95%, absolute humidity of 25g/m3, and temperatures from 0 to 45 degrees Celsius. The DKC01.3-016-7-FW controller, with a rated intermediate circuit voltage of 700V and 16A current type, can withstand storage and transport temperatures of -30 to 85 degrees. It's fitted with an IP 20 degree of protection and firmware that's ordered separately. This drive controller provides varied functional features like adjustable error responses, automatic parameter matching, and software travel limit switches. Furthermore, it boasts an easy startup operation, making it fit for both experienced and novice operators.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controllers
  • Series: ECODRIVE
  • Product Family: DKC01.3
  • Weight: 4.4 kg
  • Installation Location: Control Cabinet
  • Maximum Installation Height: 1000 meters
  • Relative Humidity: 95%
  • Absolute Humidity: 25g/m3
  • Operating Temperature: 0 to 45 degrees
  • Storage Temperature: -30 to 85 degrees
  • Protection Degree: IP 20
  • Intermediate Circuit Voltage: 700 V
  • Current Type: 16 A
  • Firmware: Ordered Separately
  • Positioning Blocks: Up to 32
  • Rotor Rotation: 16 to 65536 steps per rotation.
