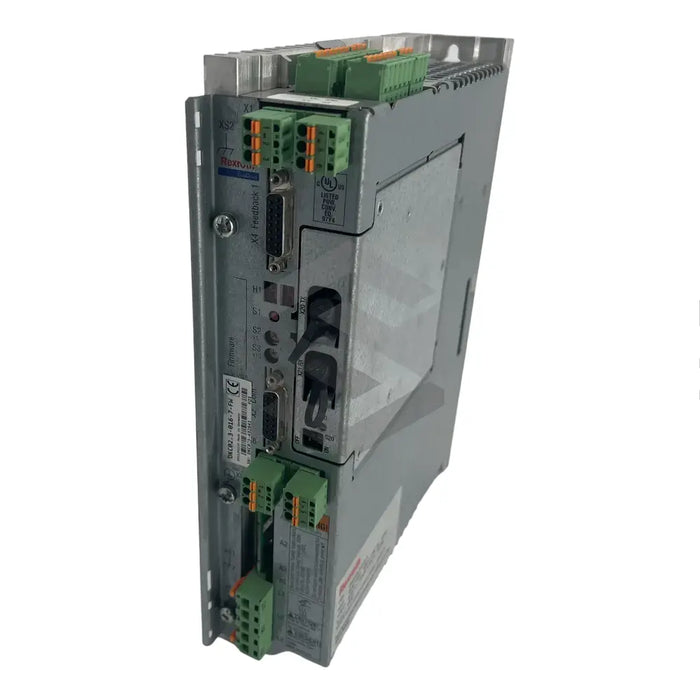

product Main (Front Left) image of R911292135

R911292135

by Bosch Rexroth Indramat
$9,091.60 - $9,091.60
$9,091.60
$9,091.60 - $9,091.60
$9,091.60
In Stock, Shipping Varies

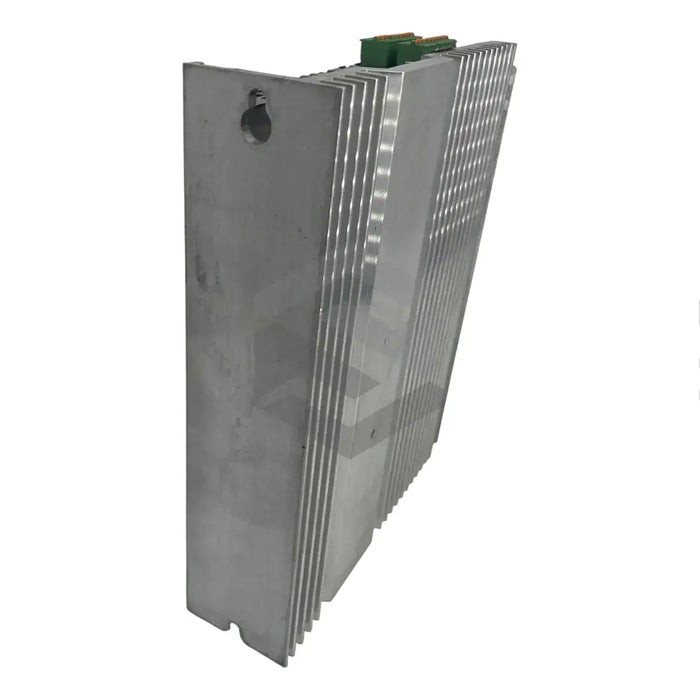

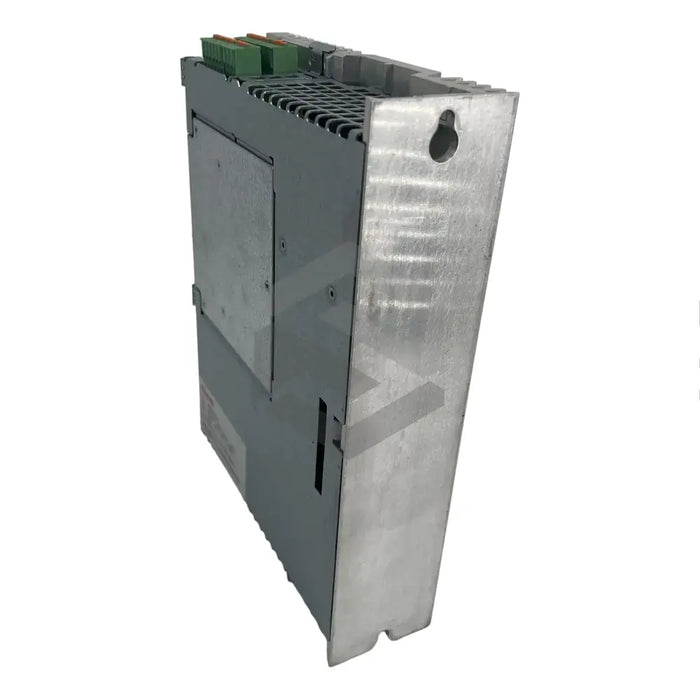

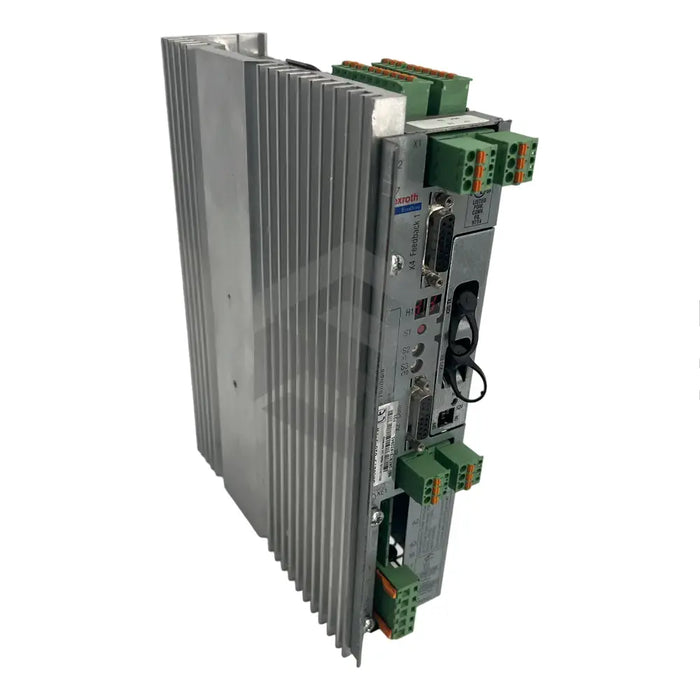

The R911292135 (DKC02.3-016-7-FW) is a high-quality industrial product from renowned brand Bosch Rexroth Indramat, utilizing advanced technology and integrated systems to deliver incredibly durable, efficient, and cost-effective solutions for various industry needs. Whether you require CNC, gearing, supply modules, servo motors, drive controllers, or even permanent magnetic motors and servo drives, Bosch Rexroth consistently delivers products tailored to suit your specific industrial needs. This particular model, the R911292135 (DKC02.3-016-7-FW) EcoDrive, has a maximum ambient temperature of 40°C with nominal data and an increased allowable temperature of 55°C with reduced cost-effective data. With dimensions of 55mm width, 182 mm height, and 170 mm depth, it weighs an estimated 1.8 kg. Both input and output carry 3 phases. It operates on an input rated control voltage of 24 AC and a rated input voltage between 200 to 230 AC. The frequency range for input is 50 - 60 Hz, while the maximum output frequency can reach 333.3 Hz. The unit's short-circuit current rating is 5000 W. It's essential to maintain a 50mm distance from other devices during installation. The device uses a branch protection fuse of type 2 and requires 60/750°C class 1 copper wire or equivalent for field wiring.
30 Day Warranty
Technical Specifications
  • Short Circuit Current Rating: 5000W
  • Product Type: DKC02.3-016-7-FW EcoDrive
  • Depth: 170mm
  • Input Phases: 3
  • Input Frequency: 50 to 60Hz
