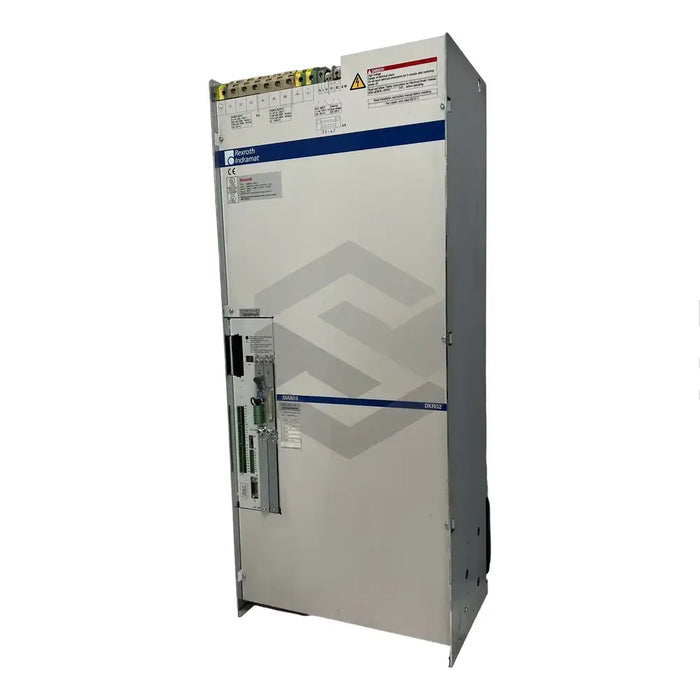

product Main (Front Left) image of R911276834

R911276834

by Bosch Rexroth Indramat
$6,155.28 - $6,155.28
$6,155.28
$6,155.28 - $6,155.28
$6,155.28
In Stock, Ships Today
The Bosch Rexroth Indramat's R911276834 (DKR02.1-W300B-BE23-01-FW) is a competent DKR02 drive controller predominantly used for digitally controlling AC mains motors, frameless motors, and linear motors. It offers impressive control, steady power, and a wide speed range when teamed with suitable drives. The device is ideal for use in printing and NC-controlled machines. With a power voltage rated at 3 x AC 400 – 480, ± 10 %, the appliance runs on a frequency of 50 – 60 Hz and a controlling voltage frequency of 230 V AC, ± 10 %. It has a substantial rated current of 300 Amps and control voltage power rating of 0.2 kVA. The R911276834 (DKR02.1-W300B-BE23-01-FW)'s continuous current is 141 Amps at a switching frequency of 4 kHz, and 110 Amps at 8 kHz, with a peak current of 212 Amps. This drive controller is air-cooled with an in-built blower, features an integrated bleeder, and utilizes a digital servo feedback with a resolver mechanism. It achieves continuous regenerated power of approximately 43 kW, and heat dissipation is rated at 1.8 kW. Additionally, it has an impressive peak power of about 93 kW at both 4 kHz and 8 kHz switching frequencies concerning the motor-driven shaft. It features a SERCOS communication interface.
30 Day Warranty
Technical Specifications
  • Line: 2
  • Control Voltage Rating: 230 V AC, ± 10%
  • Product Type: DKR02 drive controller
  • Control Voltage Power Rating: 0.2 kVA
  • Power Voltage: 3 x AC 400 – 480, ± 10 %
