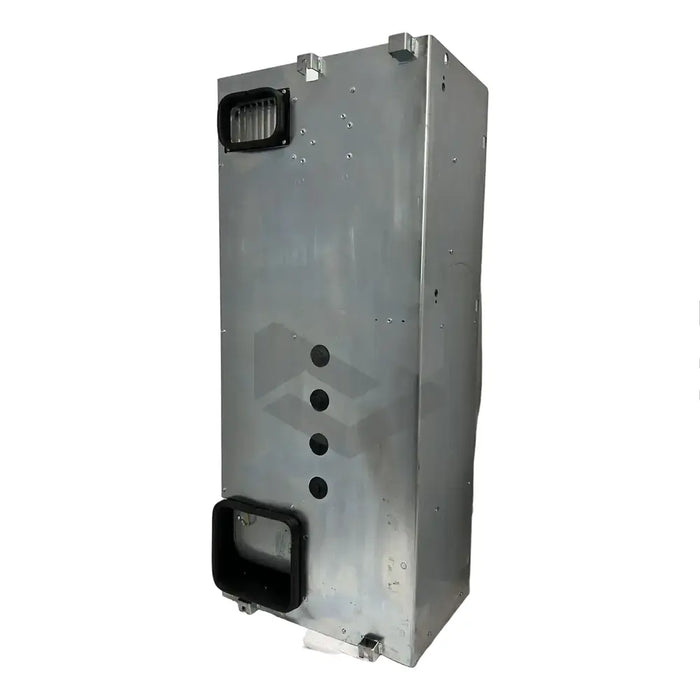

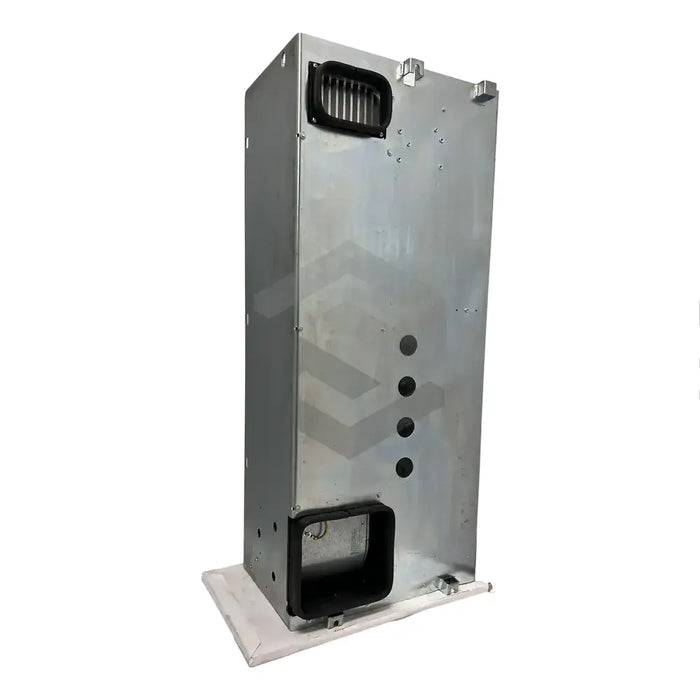

The R911280554 (DKR02.1-W300N-BA03-01-FW), a product of Bosch Rexroth Indramat, belongs to the DKR02 series of drive controllers. Primarily designed to control Rexroth Indramat motors from the LSF, LAF, 1MB, and 2AD product lines, these controllers are an optimal fit for machines such as printers or NC controlled machine tools. The R911280554 (DKR02.1-W300N-BA03-01-FW) is specified for a rated current output of 300 Amps and incorporates function numeric code 03 and version function numeric code 01. It contains an analog command communication module and supports digital servo and resolver feedback. Its connectivity is straightforward, requiring direct connection to AC mains between 400 to 480 Volts AC, unless a transformer is needed due to differing voltage.
Key features of R911280554 (DKR02.1-W300N-BA03-01-FW) include a built-in mains contactor and an emergency shutdown mechanism. Also included is an integral blower for cooling purposes during high-load operations. The drive controller offers continuous current ratings of 141 Amps at 4 kHz and 110 Amps at 8 kHz, with power output ratings of 55 kW at 4 kHz and 43 kW at 8 kHz. The unit, weighing approximately 104 kg, operates optimally at an ambient temperature range of 5 to 45 degrees Celsius and installation elevations under 1000 meters. Please note the firmware needs to be ordered separately, and will be stored on a software module that can be duplicated for identical machines or transferred to a replacement drive.
30 Day Warranty
Technical Specifications
