R911283847
Original price
$16,713.31
-
Original price
$16,713.31
Original price
$16,713.31
$16,713.31
-
$16,713.31
Current price
$16,713.31

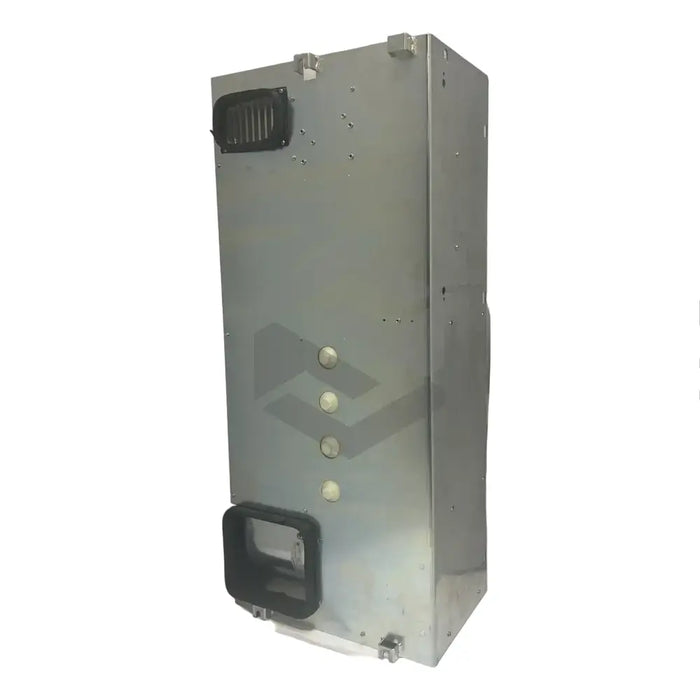

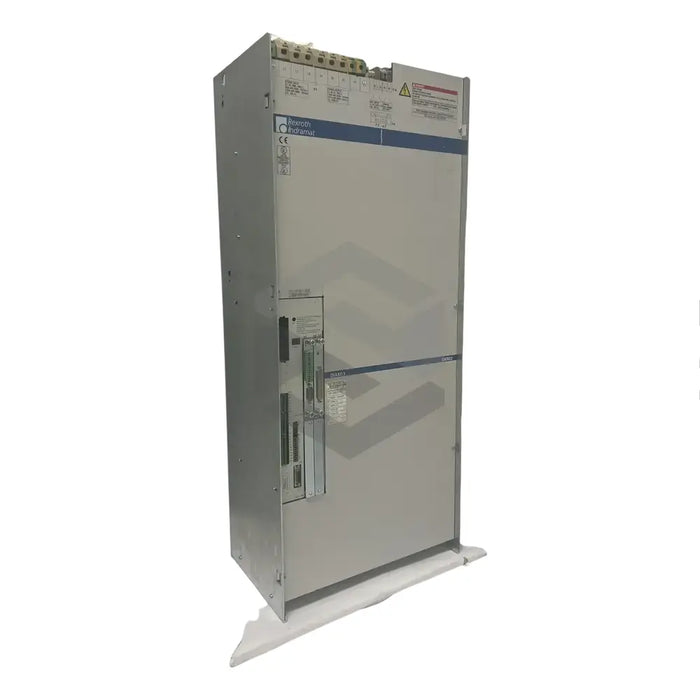

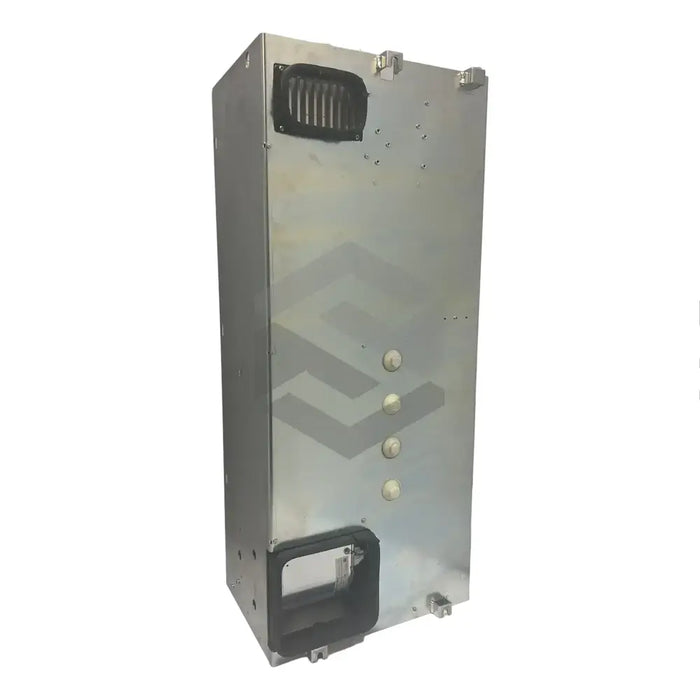

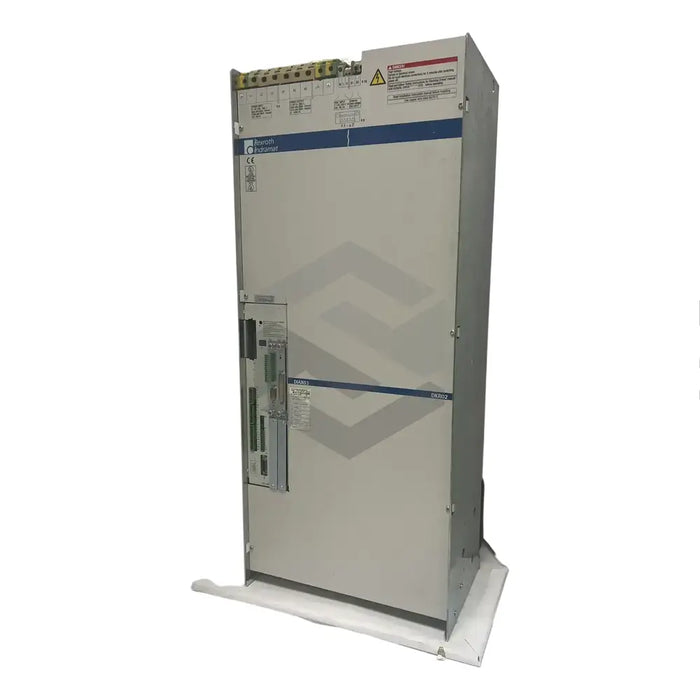

The product R911283847 (DKR02.1-W200N-BA03-01-FW), produced by Bosch Rexroth Indramat, is a digital drive controller specially designed for optimized function within different software applications. The key function identifiers include a design line of 2, design of 1, and a function numeric code of 03 and 01 in its version. The drive supports an analog command communication interface, and operates optimally within an ambient temperature of 5-45 degrees Celsius and an altitude of 0-100 meters. The rated output stands at 200 Amps, and is powered via three-phase 400-480 volts AC input at a 50-60 Hertz frequency. Furthermore, the drive is equipped with integrated digital servo and resolver feedback.
The controller weighs about 104kgs and incorporates a built-in blower that regulates internal temperature to appropriate levels below 55 degrees Celsius. It does not possess an integrated bleeder. It must be noted that operation under varying load conditions can reduce controller power data by load capacity and may cause damage if overloaded. Also, any deviation from the recommended ambient conditions could result in damage, voiding the manufacturer's warranty. The product is designed for vertical installation, requiring 80mm spacing on each side, and should be installed and maintained by trained personnel to ensure optimal performance and longevity.
30 Day Warranty
Technical Specifications
