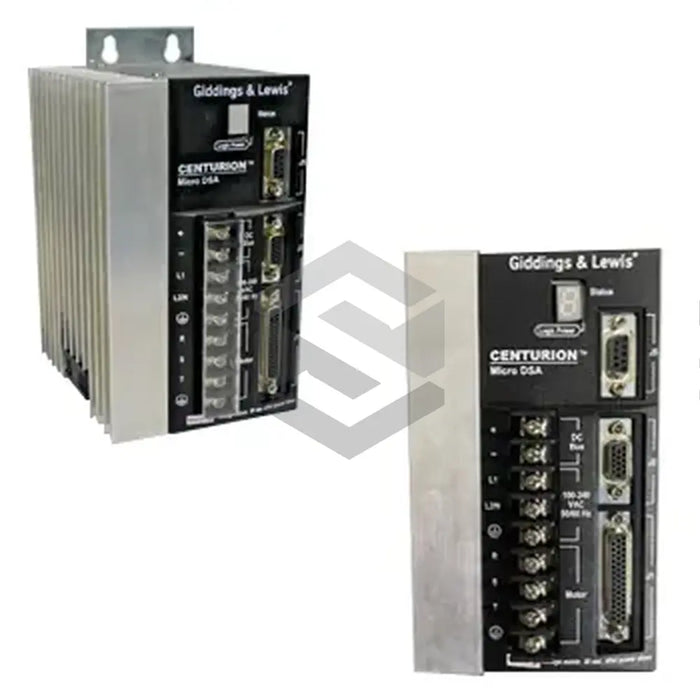

S image of DSA 015-230-P

DSA 015-230-P

by Kollmorgen
$480.00 - $480.00
$480.00
$480.00 - $480.00
$480.00

In Stock, Ships 1 - 3 Days

The DSA 015-230-P, part of Kollmorgen's DSA series of digital servo drives, is a versatile and adaptable system offering outstanding functionality. Weighing 2.1 kg, the positioning drive boasts a capacity to store 64 index moves in its memory for single-axis motion control. It features 8 inputs, 4 outputs, and 1 relay output, and accommodates a single-phase AC voltage supply between 100V and 240V, with an input frequency range of 47-63 Hz. The drive can absorb up to 125 Joules of energy at 115V AC input and 51 Joules at 230V AC input, and provides a continuous power output of 0.5kW and 1.0kW respectively. The DSA 015-230-P, equipped with a standard incremental encoder, supports a peak current output of 15A, and houses its filters internally for electromagnetic compatibility. It accepts command sources like master encoder input, RS-232/485 commands, and step input. Parameter management can be done remotely, maximizing convenience.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Series

DSA

Model Number

DSA 015-230-P

Product Type

Digital Servo Drive

Weight

2.1 kg

Memory Capacity

64 index moves

Number of Inputs

8

Number of Outputs

4

Number of Relay Outputs

1

Voltage Range

100-240 V AC

Input Frequency

47-63 Hz

Energy Absorption Capacity

125 Joules at 115 V AC, 51 Joules at 230 V AC

Continuous Power Output

0.5 kW at 115 V, 1.0 kW at 230 V

Peak Current Output

15 A

Electromagnetic Compatibility

Internal Filters

Encoder Compatibility

Standard Incremental and others

Command Source Options

Auxiliary Master Encoder Input, RS-232/485 Commands, Step Input with Electronic Gearing

Velocity Loop Bandwidth

High

Parameter Management

Available Remotely with DSAPro software
