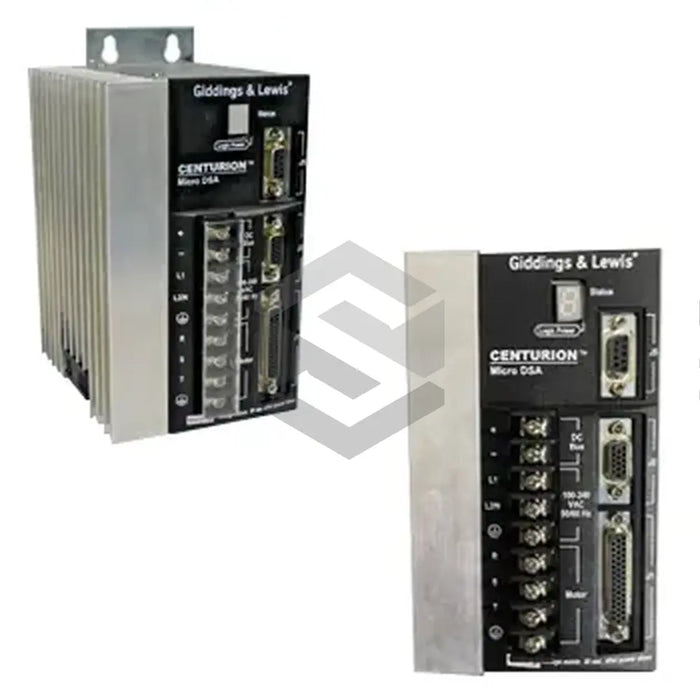

series image of DSA 030-230-S

DSA 030-230-S

by Kollmorgen
$0
$4,161.38 - $4,161.38
$4,161.38
$4,161.38 - $4,161.38
$4,161.38
In Stock, Ships 3 - 5 Days
 More payment options
The DSA 030-230-S is a digital servo drive produced by Kollmorgen, part of their DSA series. It functions with a voltage rating of 230 Volts AC, an input voltage range of 100 to 240 Volts (single-phase) and an AC input frequency range of 47 to 63 Hertz. The servo drive offers a rated peak output current of 30 Amps, while the continuous output current stands at 10 Amps. Despite its 2.1 kilograms weight, the drive boasts a continuous power output of 1 kilowatt at 115 Volts AC and 2 kilowatts at 230 Volts AC. It operates optimally within 0 to 55 degrees Celsius and functions with a 3-phase sinusoidal commutation. Furthermore, it comes with an integrated RS-232 / RS-422 / RS-485 serial port for connectivity.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Series: DSA
  • Product Model: 030-230-S
  • Voltage Rating: 230 Volts AC
  • AC Input Voltage Range: 100 to 240 Volts
  • AC Input Frequency Range: 47 to 63 Hertz
  • Nominal AC Input Current: 18 Amps
  • Maximum Inrush Current: 100 Amps
  • Rated Peak Output Current: 30 Amps
  • Rated Continuous Output Current: 10 Amps
  • Energy Absorption Capability: 125 Joules at 115 Volts AC, 51 Joules at 230 Volts AC
  • Continuous Power Output: 1 kilowatt at 115 Volt AC, 2 kilowatts at 230 Volts AC
  • Weight: 2.1 kilograms (4.6 pounds)
  • Operating Temperature: 0 to 55 degrees Celsius
  • Storage Temperature: -40 to 70 degrees Celsius
  • Recommended Relative Humidity: 5 to 95%
  • Recommended Altitude: Not exceed 1500 meters
  • Power Loss as Heat: 50 Watts
  • Commutation: 3-phase sinusoidal
  • Current Regulator: digital PI with 125 microsecond update rate
  • Velocity Regulator: digital PID with 250 microsecond update rate
  • Position Regulator: digital PID with feed-forward and a 1 millisecond update rate
  • Integrated Serial Port: RS-232 / RS-422 / RS-485.
