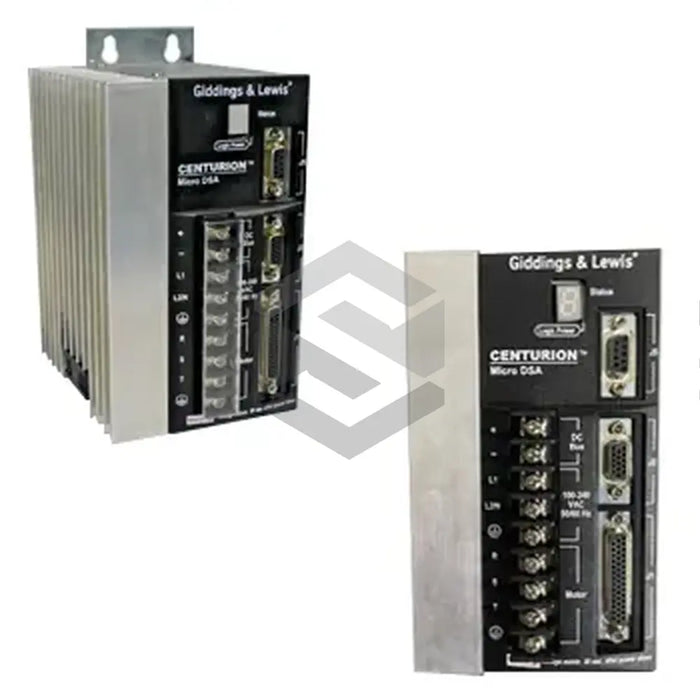

S image of DSA 175-230-S

DSA 175-230-S

by Kollmorgen
$3,436.88 - $3,780.57
$3,780.57
$3,436.88 - $3,780.57
$3,780.57

In Stock, Ships Fast

The Kollmorgen DSA 175-230-S is a sophisticated servo drive. When not in use, the drive should be stored in a dry, clean environment with a temperature between -40 to 70 degrees Celsius and relative humidity ranging from 5 to 95%. It should be enclosed in an earth-conductive casing offering protection as per EN 60529 to IP 55, in a place where it's inaccessible to an inexperienced individual or the operator. During installation, the drive should not be exposed to temperatures exceeding 131 degrees Fahrenheit. Sufficient spacing needs to be provided around the drive for optimal performance. The DSA 175-230-S operates on a single-phase 100 to 240 Volts AC input and has distinct current and power ratings. It weighs 9.3 kilograms and dissipates 300 Watts of heat plus the dissipative shunt during use.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Servo Drive

Model

DSA 175-230-S

Storage Temperature Range

-40 to 70 degrees Celsius

Storage Humidity Range

5 to 95% non-condensing

Exposure During Storage

No corrosive atmosphere

Installation Requirement

Grounded conductive enclosure, protection as per EN 60529 to IP 55

Operational Ambient Temperature

Not exceed 131 degrees Fahrenheit

Installation Surface

Flat, vertical, not subjected to shock, moisture, dust or corrosive vapors

Spacing Above and Below

2 inches minimum

Spacing to Left and Right

5 inches minimum

Voltage Requirement

Single-phase 100 to 240 Volts AC

Nominal Current

30 Amps

Inrush Current

50 Amps

Continuous Output Current

35 Amps

Continuous Output Power

3.75 kilowatts at 115 Volts AC and 7.5 kilowatts at 230 Volts AC

Weight

9.3 kilograms

Power Dissipation

300 Watts plus the dissipative shunt
