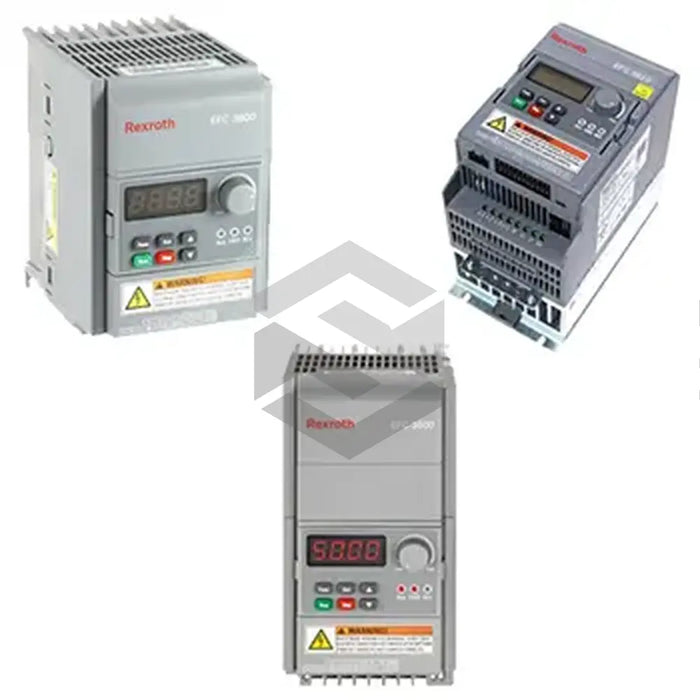

manufacturer image of EFC3610-2K20-1P2-MDA-7P-NNNNN-NNNN

EFC3610-2K20-1P2-MDA-7P-NNNNN-NNNN

by Bosch Rexroth Indramat
Request a quote
Produced by Bosch Rexroth Indramat, the EFC3610-2K20-1P2-MDA-7P-NNNNN-NNNN is a frequency converter from the EFC 3610 series, engineered for torque and speed control. Equipped with I/O and filedbus modules, a control panel, and Modbus interface, the converter is designed for use in diverse applications such as woodworking, ventilation, textiles, and packaging machines. Covering power ratings from 0.4kw to 22kw, the device can function in both normal and heavy duty modes. It incorporates a built-in brake chopper, mains filters, and voluntary flex-control with standard I/O. Its unique support for Volts/Hertz and adjustable pulse width modulation exists within a range of 1 to 15 kilohertz. This converter operates on a single-phase 200 to 240 Volts AC input and tolerates a 10% variation from rated input voltage range. With certification from CE, UL, EAC, and cUL, it is a safe and robust industrial choice.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: EFC 3610
  • Product Model: EFC3610-2K20-1P2-MDA-7P-NNNNN-NNNN
  • Design Function: Frequency converter for torque and speed control
  • Features: I/O and filedbus modules, control panel, Modbus interface
  • Power Ratings: 0.4 to 22 kilowatts
  • Operating Modes: Normal duty (ND), Heavy duty (HD)
  • Advanced Features: Built-in brake chopper, mains filter
  • Use Cases: Woodworking machines, ventilators, textile machines, packaging machines
  • Motor Control Technology: Volts / Hertz, pulse width modulation adjustable in 1kHz increments
  • Voltage Compatibility: Single-phase 200 to 240 Volts AC, +/- 10% variation tolerance
  • Rated Output for HD operation: 2.2 kilowatts
  • Rated Output for ND operation: 10.1 kilowatts
  • Overload Capacity: 200% for 1 sec, 150% for 60 secs
  • Display: Seven-segment with potentiometer
  • EMC Filter: Integrated for industrial area use, Class C3
  • Communication Interfaces: RS-445, Modbus TCP
  • Weight: 2.6 kilograms
  • Protection Rating: IP20
  • Dimensions: 231 x 220 x 175 millimeters
  • Mounting Compatibility: Wall-mounted, DIN rails
  • Certifications: CE, UL, EAC, cUL.
