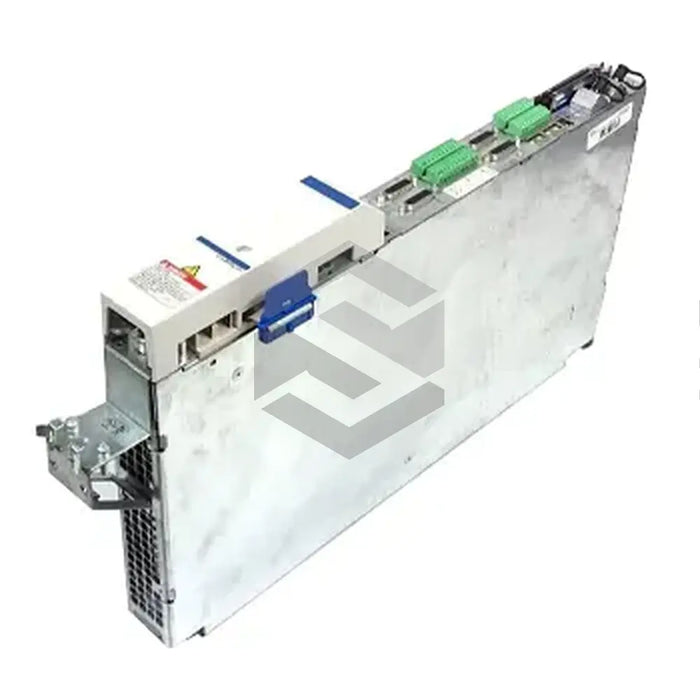

series image of HDD02.2-W040N-HD32-01

HDD02.2-W040N-HD32-01

by Bosch Rexroth Indramat
Request a quote
The HDD02.2-W040N-HD32-01 is a POWERDRIVE drive controller manufactured by Bosch Rexroth Indramat, a leading company in motion control and automation technologies. Ideal for a wide range of applications such as printing and packaging machines, it uses a modular approach to combine AC drives into a compact single supply unit. This unit is compatible with the TNC 410M, TNC 430M, and TNC 426M Heidenhain controls and works effectively with AC motors like MKD, 2AD, and MHD. The controller connects to an HVE or HVR supply module for power and signal voltages, boasting a rated and peak current of 40A per axis. It packs a software module, additional plug-ins, and a command communications module, with a separate firmware. Designed with an IP 10 protection category and air cooling method, it functions optimally between 5 to 45 degrees and operates up to 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Product Company: Bosch Rexroth Indramat
  • Product Type: POWERDRIVE Drive Controller
  • Model Number: HDD02.2-W040N-HD32-01
  • Product Line: HDD Series
  • Compatibility: TNC 410M, TNC 430M, or TNC 426M Heidenhain control
  • Use Cases: Printing and Packaging Machines
  • Supply Module Compatibility: HVE or HVR
  • Configured Drive Components: Software Module, Basic Drive Controller Unit, Additional Plug-in Modules, Command Communications Module
  • Rated Current: 40 A
  • Peak Current per Axis: 40 A
  • Continuous Current per Axis: 15/10 A
  • Power Loss per Axis: 110 W
  • Weight: 8 kg
  • Protection Category: IP 10
  • Cooling Method: Air
  • Command Communication: SERCOS Interface
  • Firmware: Ordered Separately
  • Operating Temperature: 5 to 45 degrees celsius
  • Storage and Transport Temperature: -30 to 85 degrees celsius
  • Maximum Installation Elevation: 1000 meters above sea level
