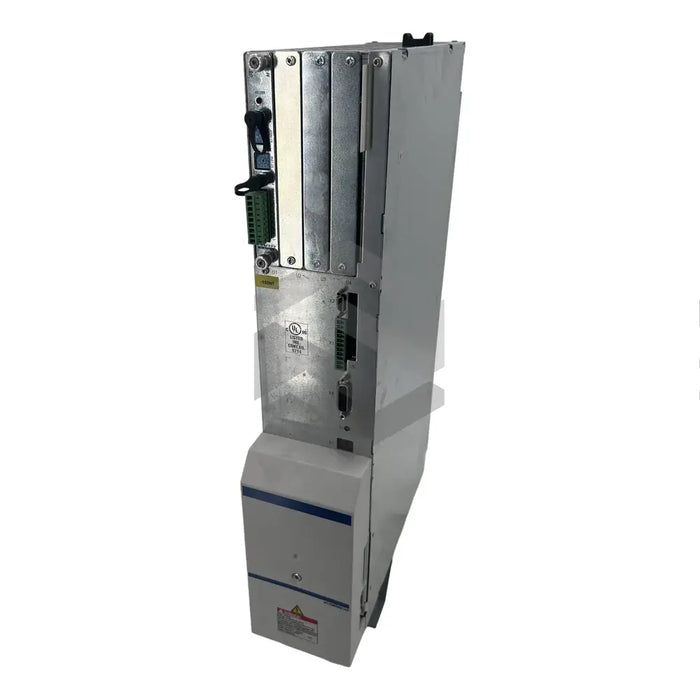

product Main (Front Left) image of HDS03.1-W075N-HS12-01-FW

HDS03.1-W075N-HS12-01-FW

by Bosch Rexroth Indramat
$4,191.45 - $4,191.45
$4,191.45
$4,191.45 - $4,191.45
$4,191.45
In Stock, Ships 3 - 5 Days
The HDS03.1-W075N-HS12-01-FW is a drive controller part of the HDS Drive Controllers series by Bosch Rexroth Indramat. Suitable for various industries, including robotics and packaging, it's used as main drives or servos, compatible with 1MB, 2AD, MHD, and MKD motors. With a rated and peak current of 75 Amperes, and a maximum continuous current of 40 Amperes at 4 kHz, its power dissipation is 220 W at these levels. It features air internal cooling with a built-in blower, maintaining safe operating temperature range. The unit weighs 11 kg, uses IP10 casing, tolerates between 5 to 45 degrees Celsius operating temperatures, and has an acceptable storage temperature of -30 to 85 degrees Celsius. A separately ordered firmware module is required for function execution and storage of necessary parameters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: HDS03.1-W075N-HS12-01-FW
  • Series: HDS Drive Controllers
  • Suitable for: 1MB motors, 2AD motors, MHD motors, MKD motors
  • Industry Usage: Robotics, Printing, Textile, and Packaging Industries
  • Rated Current: 75 Amperes
  • Peak Current: 75 Amperes
  • Maximum Continuous Current: 40 Amperes (4 kHz), 30 Amperes (8 kHz)
  • Power Dissipation: 220 W
  • Cooling Type: Air, internal (with built-in blower)
  • Line Number: 3
  • Version Number: 1
  • Function ID Code: 12
  • Version of Function ID: 1
  • Weight: 11 kg
  • Casing: IP10
  • Altitude Installation Limit: 1000 meters
  • Operating Temperature: 5 to 45 degrees Celsius
  • Storage and Transportation Temperature: -30 to 85 degrees Celsius
  • Software Module: Ordered Separately
