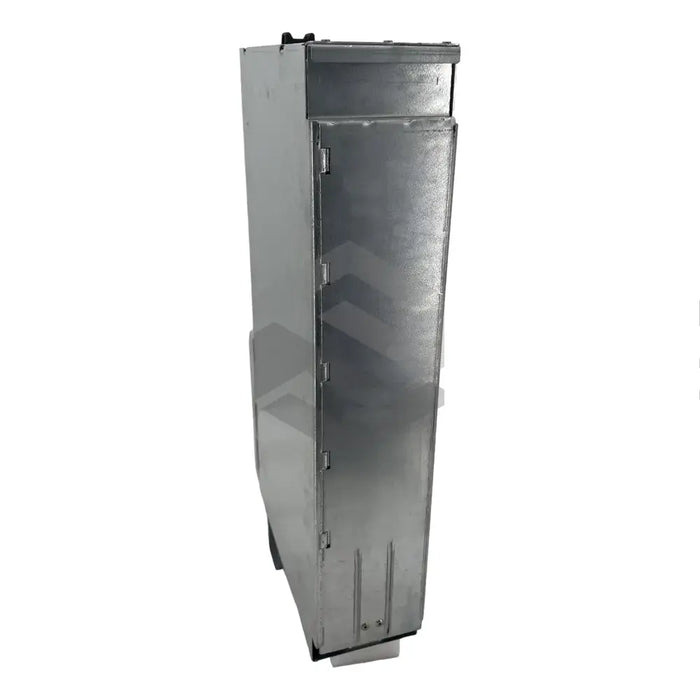

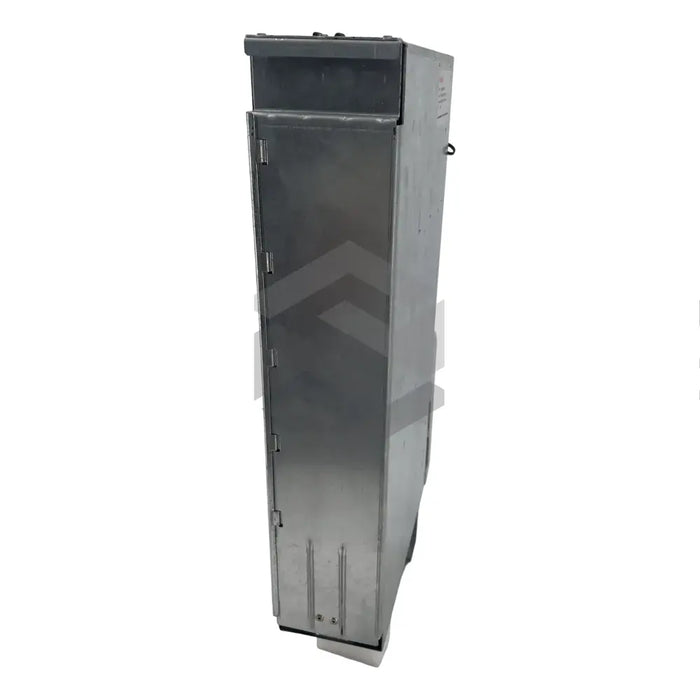

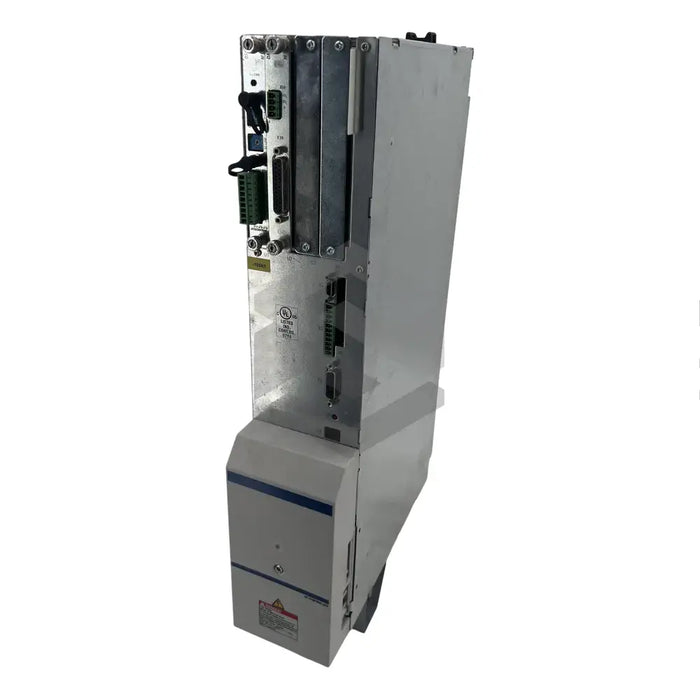

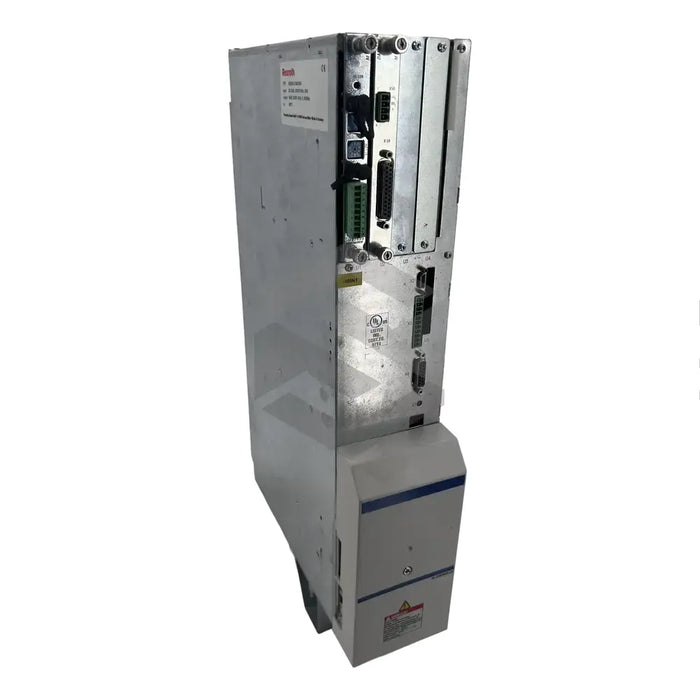

product Main (Front Left) image of HDS03.2-W100N-HS45-01-FW

HDS03.2-W100N-HS45-01-FW

by Bosch Rexroth Indramat
$5,111.57 - $5,111.57
$5,111.57
$5,111.57 - $5,111.57
$5,111.57
In Stock, Ships 1 - 2 Days
The Bosch Rexroth Indramat HDS03.2-W100N-HS45-01-FW is a configured drive controller with a function ID code of 45 and version 01. It should be operated at a cooling temperature of 40°C and installed in a sealed control cabinet to prevent condensation. The cooling system should be maintained even after turning off the machine until ambient temperatures are achieved. Excessive proximity between the signal and power cables should be avoided. The drive controller, which weighs 11kg, should be vertically installed inside the cabinet with its motor connection at the base. The mounting rails should be alternately screwed in using M5 screws. The system should be grounded at the controller's base and its components align with DIN VDE 0160 specifications. Recommended operating conditions fall between +5°C and +45°C, and below altitudes of 1,000m. We offer delivery through DHL, FedEx, and other reliable partners.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Configured Drive Controller
  • Function ID Code: 45
  • Version: 01
  • Operating Temperature: 40°C
  • Installation: In a well-sealed control cabinet
  • Cooling System Operation: Continues even after machine is off
  • Minimum Distance: 100mm
  • Orientation: Vertical
  • Motor Connection: Established at the bottom
  • Ground Connection: Established at the bottom edge of the controller
  • Product Weight: 11kg
  • Ambient Temperature Range: +5°C to +45°C
  • Installation Altitude: Up to 1,000m above sea level
  • Delivery Options: DHL, FedEx, etc.
