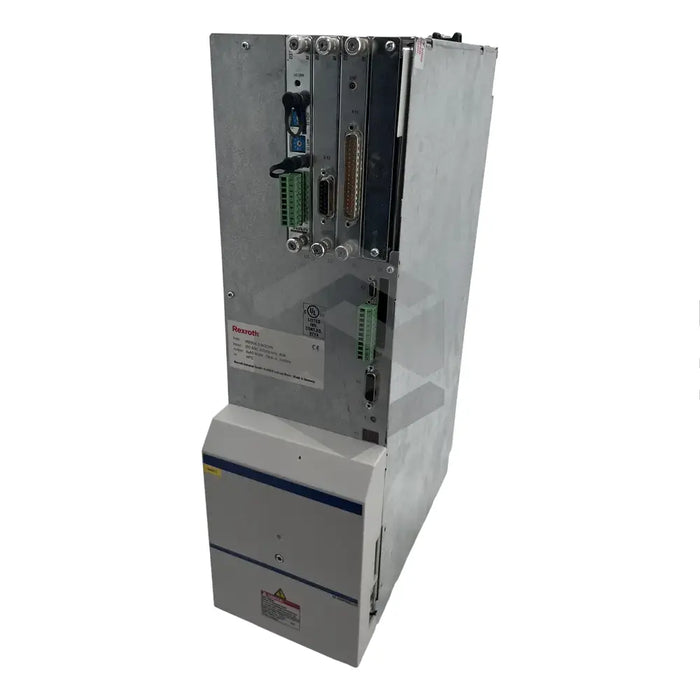

product Main (Front Left) image of HDS04.2-W200N-HS33-01-FW

HDS04.2-W200N-HS33-01-FW

by Bosch Rexroth Indramat
$4,596.92 - $4,596.92
$4,596.92
$4,596.92 - $4,596.92
$4,596.92
In Stock, Ships 3 - 5 Days
The HDS04.2-W200N-HS33-01-FW drive controller by Bosch Rexroth Indramat is designed to work collaboratively with 2AD, MKD, 1MB, and MHD motor series, behaving as a rapid-response drive. Renowned for its versatile, modular design, it boasts a continuous current rating of 120A at 4kHz and 80A at 8kHz and can perform up to a maximum ambient temperature of 55°C under derated data. Complying with IEC 68-2-36 specifications, it has a spectral acceleration density amplitude of 0.01g2/Hz. To operate above installation elevations of 2000m, the device requires external voltage regulation components. Apart from adhering to strict shipping, packaging and storage norms to prevent damage, the product needs to be operated under suitable ambient conditions to avoid impairment. The firmware should be ordered separately. It complies with EN 50178 specifications, is CE Certified, and cUL Listed.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: HDS04.2-W200N-HS33-01-FW
  • Product Group: HDS
  • Compatibility: 2AD, MKD, 1MB and MHD series of motors
  • Design: Modular
  • Continuous current rating: 120A at 4kHz and 80A at 8kHz
  • Maximum ambient temperature: 55°C with derated data
  • Spectral acceleration density amplitude: 0.01g2/Hz (IEC 68-2-36 specifications)
  • Shipping: Available to any address via FedEx
  • Elevation: Requires additional voltage regulation components over 2,000m
  • Storage: Needs conducive packaging materials. Shock-free, dust-free and dry place
  • Firmware: Ordered Separately
  • Certifications: CE Certified and cUL Listed
  • Insulation and High-voltage Check: EN 50178 specifications
  • X1 Connector: 30 pins, uses a flat ribbon cable
  • Required Distance: At least 100mm between signal and power cables
  • Cable Isolation: Metal cable duct.
