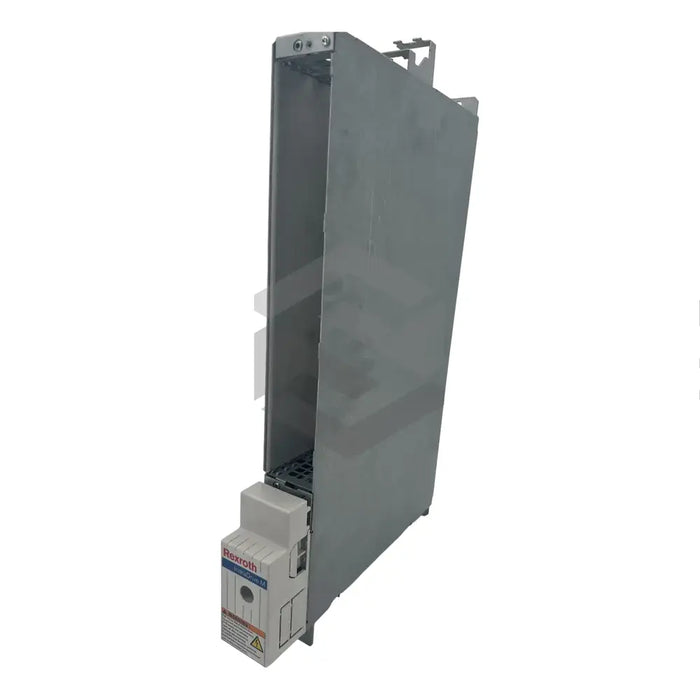

product Main (Front Left) image of HMD01.1N-W0012-A-07-NNNN

HMD01.1N-W0012-A-07-NNNN

by Bosch Rexroth Indramat
$2,514.52 - $2,514.52
$2,514.52
$2,514.52 - $2,514.52
$2,514.52
In Stock, Ships Today
The Bosch Rexroth HMD01.1N-W0012-A-07-NNNN is an accessory power module for the company's drive controllers, specifically from the HMD01 series. The module has a line code of 1 and a design code of 1 and is meant to only be accessed half an hour after power off to allow full discharge of live capacitors. It features a DC bus voltage range of 254V to 750V, cooling through an integrated blower, and a type plate listing detailed device information. The module is UL Listed and CSA Certified, and it measures 440 x 262 x 50 mm. With two coded inverter outputs, the device doesn't determine the motor terminal load. The module, weighing only 5.52 kg, has dual functionality, with a wear-free electronic contact and a 1.5A per axis current-carrying capacity. Its effective current rating is 12A and DC bus nominal voltage rating is 700VDC and is compatible with the IndraDrive M series of drive controllers.
30 Day Warranty
Technical Specifications
  • Product Type: HMD01.1N-W0012-A-07-NNNN
  • Manufacturer: Bosch Rexroth
  • Product Series: HMD01
  • Line Code: 1
  • Design Code: 1
  • DC bus voltage: 254V - 750V
  • Cooling Method: Internal Air Circulation
  • Size: 440 x 262 x 50 mm
  • Compatible Equipment: HMV DC power supply unit
  • Number of Inverter Outputs: 2
  • Current-Carrying Capacity: 1.5A per axis
  • Effective Current Rating: 12A
  • DC Bus Nominal Voltage: 700VDC
  • Control Section: Fitted Inside
  • Compatible Series: IndraDrive M series
  • Weight: 5.52kg
  • Certifications: UL Listed and CSA Certified.
