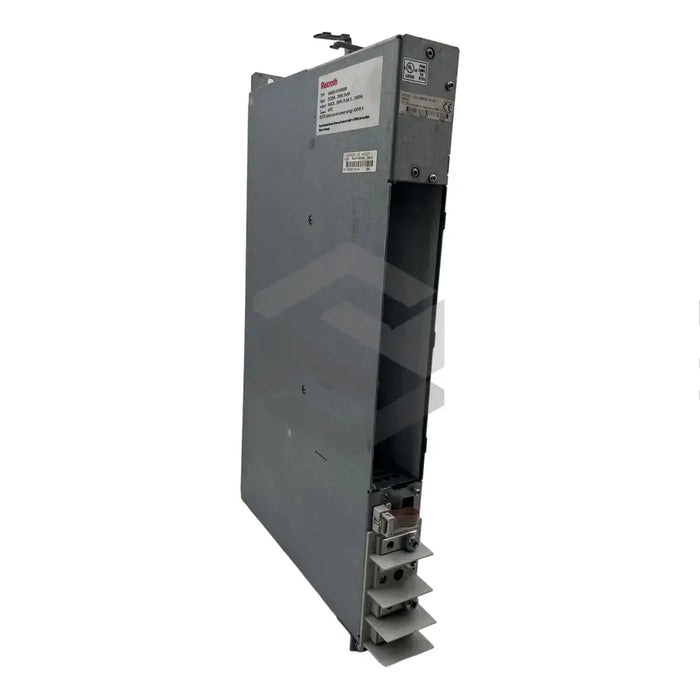

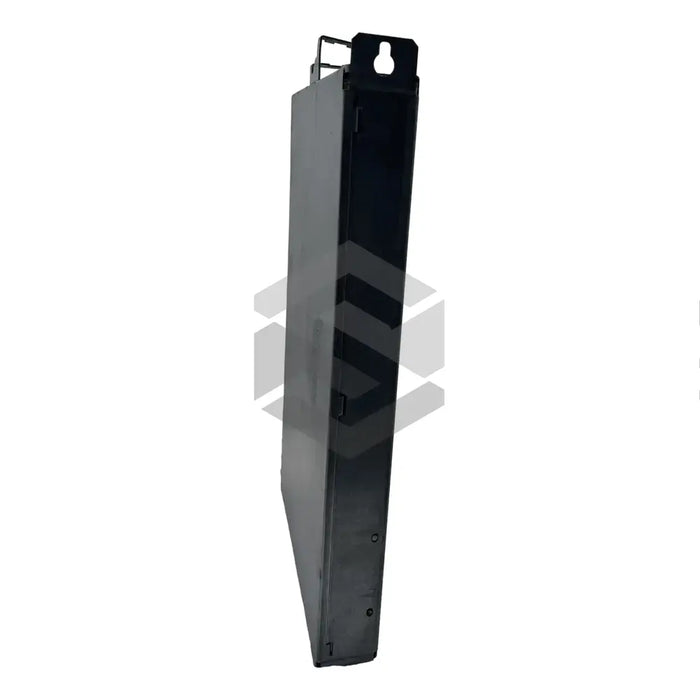

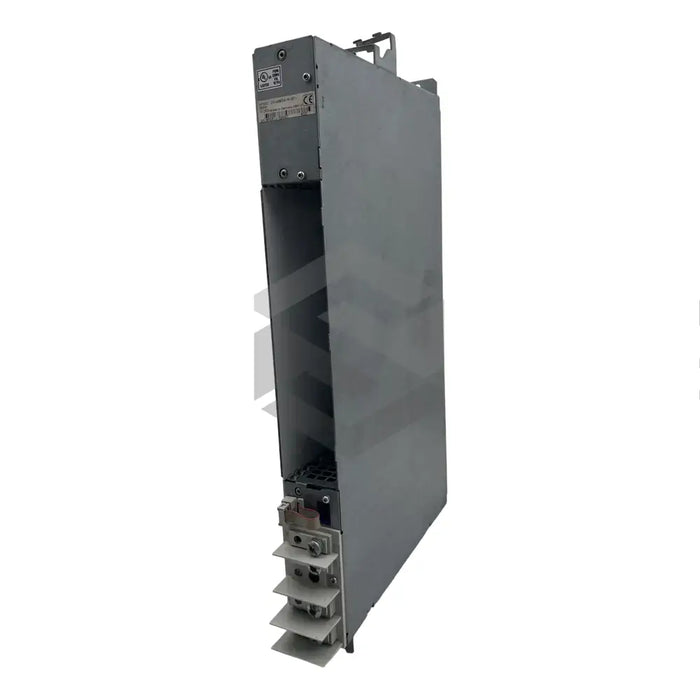

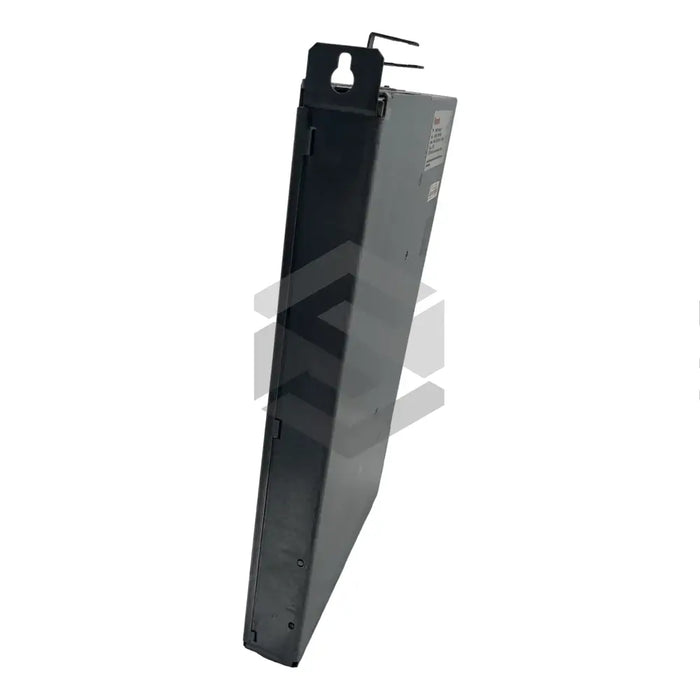

Produced by Bosch Rexroth Indramat, the R911295324 (HMS01.1N-W0036-A-07-NNNN) power section is utilized with drive controllers of the same brand. This versatile part, excluding a power supply, can be connected to an outside 24V source. The power section offers a remarkable maximum current rating of 36A, and it parades screw connections with a tightening torque ranging from 0.5Nm to a peak of 0.6Nm. Additionally, the built-in X6 connector presents two connections - one controlling the motor's holding brake and the other monitoring the motor's temperature. Swift shipping of the power section globally is accomplished via FedEx and other reliable carriers.
Meant to be installed exclusively with the provided covers and guards, the drive controller hosting this power section must remain inactive while the unit's power supply is switched on. Compliant with DIN EN 60529 standards, the device has an IP 20 protective rating. It is characterized by a short circuit current rating of 42,000Arms and a power dissipation of 210W considering continuous DC bus power and current ratings. Noteworthy as well is the part's control voltage input rated power consumption of 15W. With its compact dimensions of 440 x 262 x 50mm and a weight of 5.27kg, the controller's surface may reach temperatures exceeding 60°C, necessitating clearance of over 80mm and 100mm at the top and bottom respectively. Recognizable by its type plate, each unit is uniquely coded with a barcode, certification, device type, part number, serial number, and hardware index.
