R911306437
Original price
$1,577.66
-
Original price
$1,577.66
Original price
$1,577.66
$1,577.66
-
$1,577.66
Current price
$1,577.66

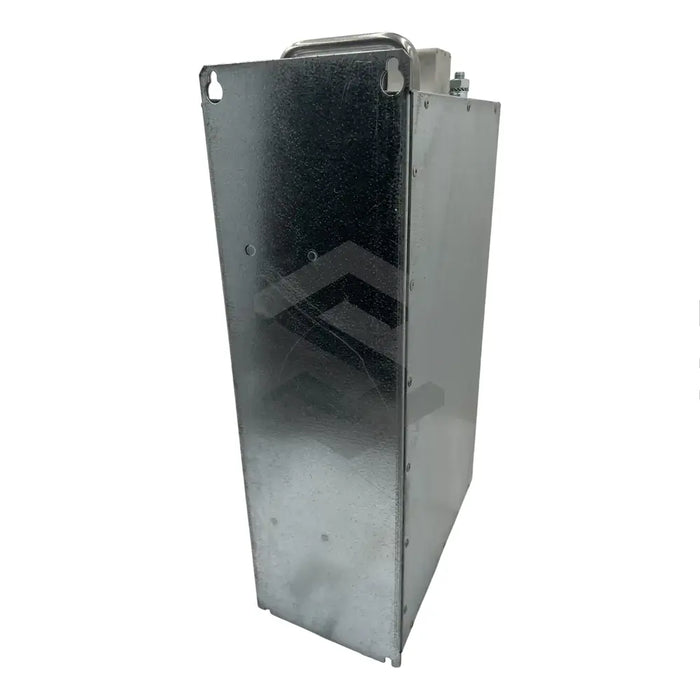

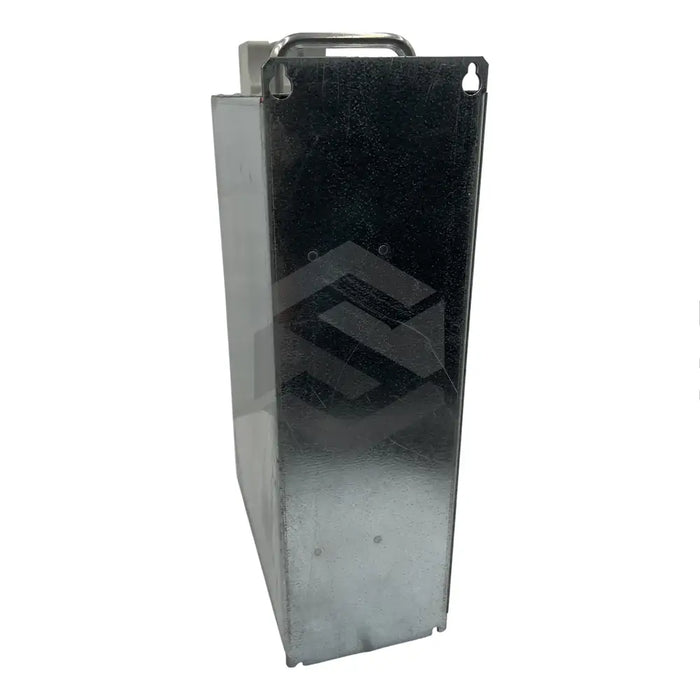

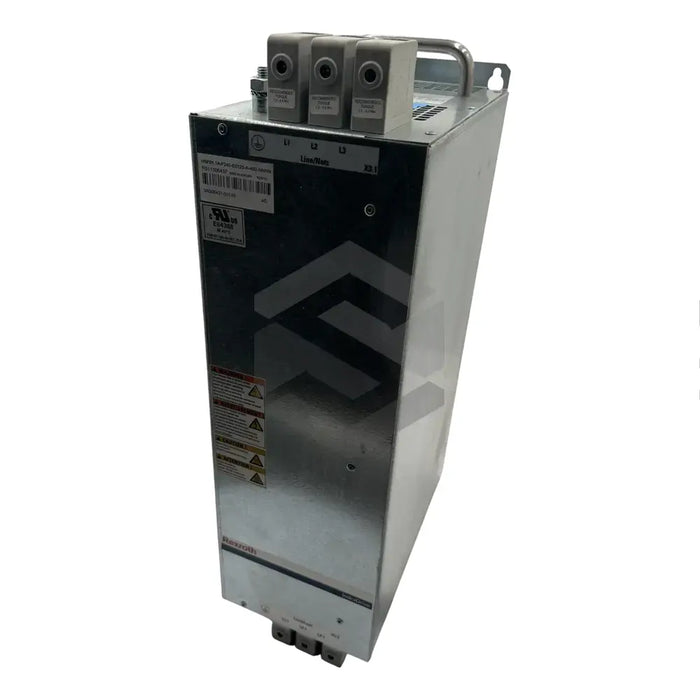

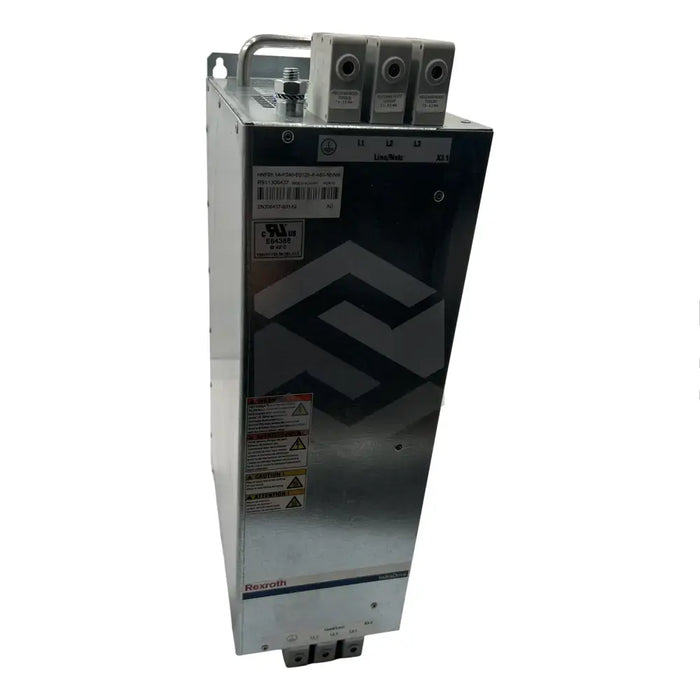

The R911306437 (HNF01.1A-F240-E0125-A-480-NNNN) is a high-quality IndraDrive controller designed by the renowned tech manufacturers, Bosch Rexroth Indramat. The unit is well-engineered for exceptional endurance, superior power, and advanced safety measures, making it an outstanding selection for drive control options. The various models of this drive controller can be matched with multiple applications, ensuring versatility.
This specific model comes with special current specifications for different power units. Important features include main filters that help meet EMC limit values, mitigating the current leakage triggered by the line capacitors. These filters are matched optimally with the power units, accounting for the number of drives, current, and motor cable length. Safety is further maintained by using the compatible Rexroth shielded motor cables. The nominal power input allowed ranges from 200-250V for 1AC while the 3AC capacitive voltage peak can go up to 480V. The R911306437 (HNF01.1A-F240-E0125-A-480-NNNN) filter has a continuous current of 125A and a power dissipation estimated to be less than 127W. Its dimensions are 150mm by 440mm by 262mm and it weighs 15kg. For optimal performance and longevity, keep the power dissipation within the recommended range.
30 Day Warranty
Technical Specifications
Get In Contact
Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204
