R911271018
Original price
$13,672.35
-
Original price
$13,672.35
Original price
$13,672.35
$13,672.35
-
$13,672.35
Current price
$13,672.35

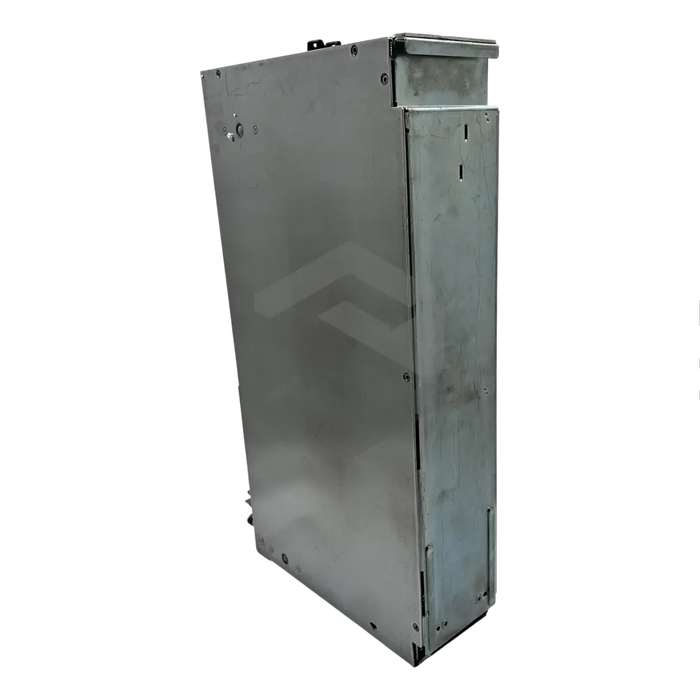

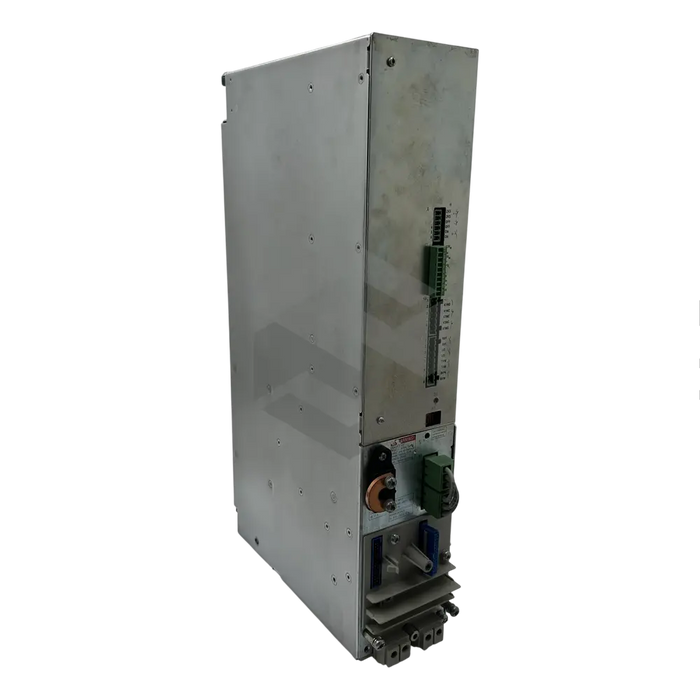

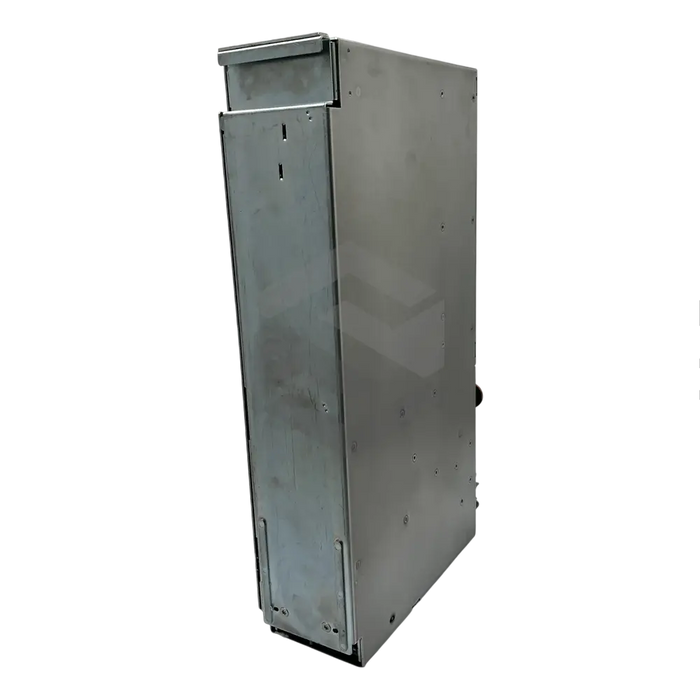

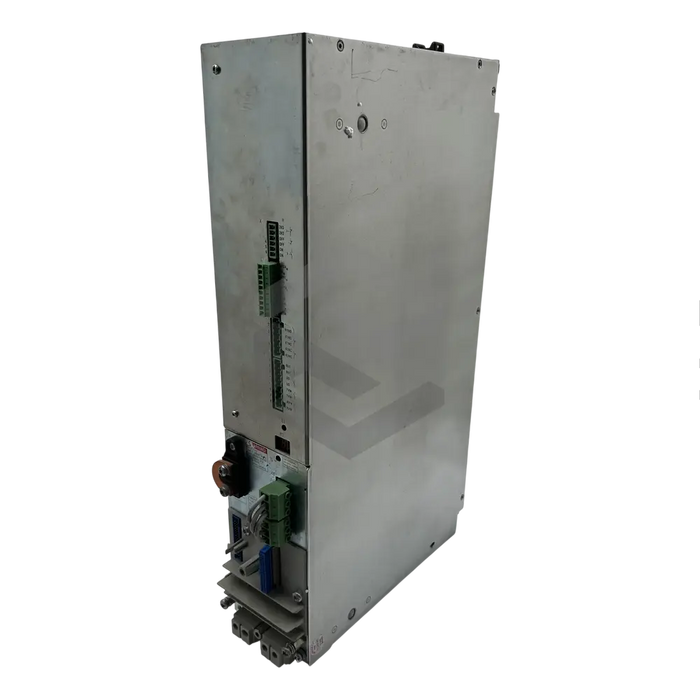

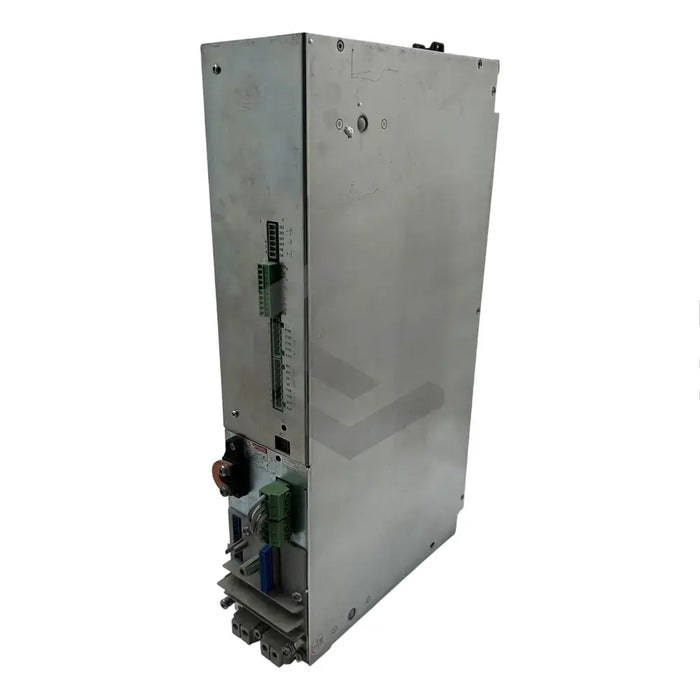

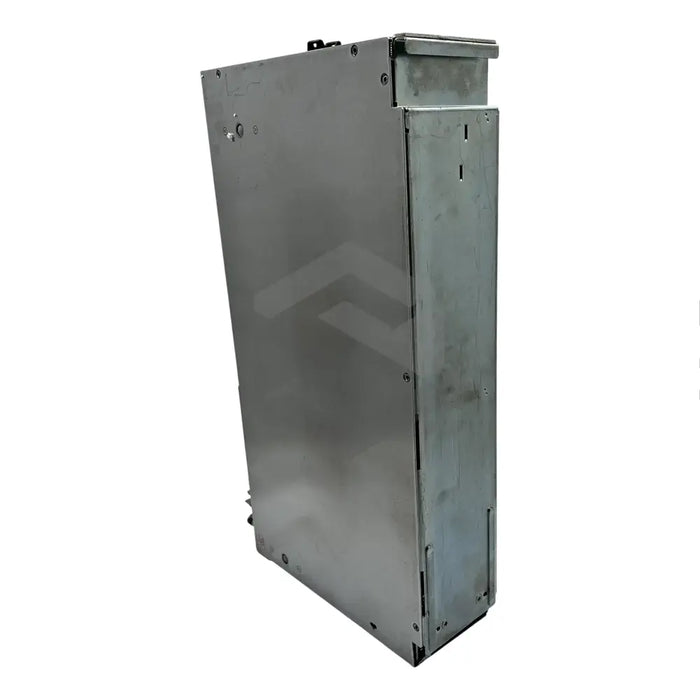

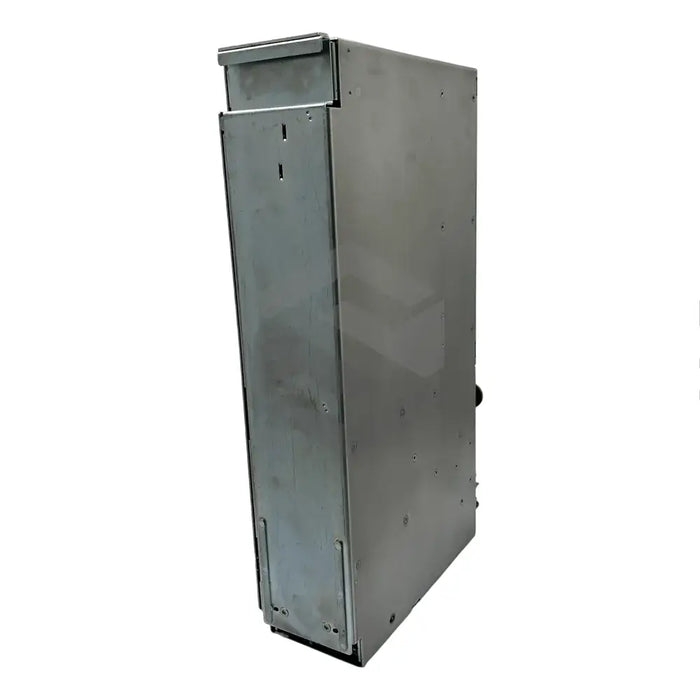

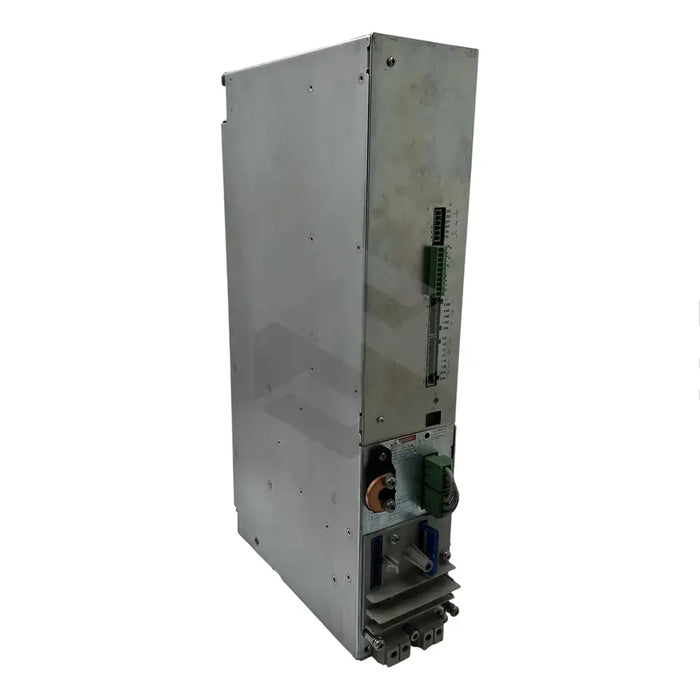

Manufactured by Bosch Rexroth Indramat, the R911271018 (HVE02.1-W018N) is a 2nd generation power supply unit integrated into the drive system to supply electricity to HDD and HDS drive controllers. It is capable of simultaneous operation of multiple drive controllers and contains a power rectifier for converting 3-phase AC voltage into unregulated DC bus voltage. When in generator mode, the unit generates heat via a bleed resistor. Additionally, it features integrated monitoring functions which can optimize and oversee the drive system.
Adhering to the prescribed operation under specific installation and ambient conditions, the R911271018 (HVE02.1-W018N) is designed to function at a maximum installation height of 1000 meters, with an operating temperature range between 5 and 45 degrees, and a storage temperature range of -30 to 85 degrees, with a maximum relative humidity of 95%. It features a weight of 13 kg, an IP 10 protection category, and an input voltage range between 380 …. 480 V, with a frequency range between 50 and 60 Hz. It's compatible with GLD type DC bus chokes and HZK capacity modules to enhance DC bus continuous power and reduce heat loss, respectively. The unit is best operated in a clean air environment.
