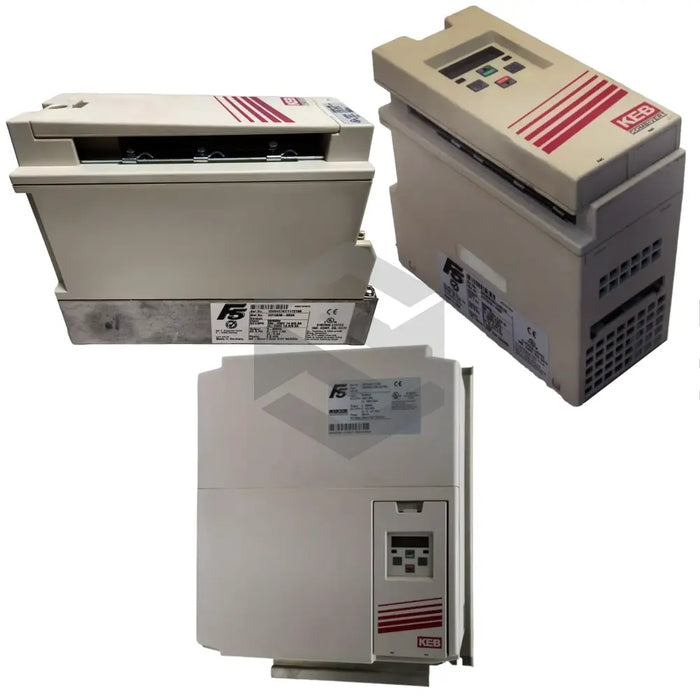

00.F5.0C0-0020

The 00.F5.0C0-0020 is a high-performance axis drive module engineered by KEB for the F5 Combivert Axis Drives series, designed to streamline industrial automation communication and control. This dedicated drive solution features a Diagnostic Interface of X6B specifically tailored for HSP5 systems, ensuring rapid error detection and system diagnostics. With a robust Cable Length of 400 mm, the compact footprint minimizes cable clutter while preserving signal integrity. The unit supports a Data Transfer Rate of up to 115.2 kBaud, enabling high-speed data exchanges critical for synchronized motion control applications. Its compatibility with the Electrical Protocol defined by DIN 66019 II ensures seamless integration into existing RS-485 networks.

The technical foundation of the 00.F5.0C0-0020 centers on its Interface Type of the HSP5 Adapter, providing a secure link between the Combivert drive and peripheral control devices. The Connection Type utilizes a D-SUB 9-pole / RJ45 hybrid port, offering flexibility for diverse wiring configurations. A built-in Device Address constraint—limited to address 0 for HSP5 connections—simplifies network addressing and reduces configuration errors. The adapter also Supports Auto Baud Rate Detection, automatically matching communication speed to the host controller for optimal performance. In multi-node environments, the module’s Usage In Networks capability allows parallel connections via serial protocol without compromising signal quality.

Operational resilience is assured through an Operating Temperature range of -10 to 45 °C, enabling reliable use across a wide spectrum of factory and process conditions. The recommended setup specifies RS-485 as the primary transport medium to the HSP5 controller, ensuring robust noise immunity and long-distance communication. Manual Driver Installation via the kebcdc.inf file guarantees precise compatibility with KEB hardware, while the drive’s Exclusivity to HSP5 adapters prevents inadvertent misconnection with unsupported peripherals. Maintenance and troubleshooting are expedited by the dedicated X6B diagnostic interface, which delivers real-time status feedback and error logging.

Integration of the 00.F5.0C0-0020 within complex automation architectures is straightforward thanks to its compliance with established industry standards. The absence of an Encoder Feedback Card at the factory allows users to select or retrofit feedback devices to match specific application requirements. As part of the Combivert F5 product series, this axis drive integrates natively with KEB’s motion control ecosystem, including drives, PLCs, and software tools. Whether deployed in packaging lines, conveyor systems, or robotic workcells, the drive’s combination of reliable serial communication, diagnostic visibility, and rugged design delivers the performance and flexibility demanded by modern industrial automation workflows.
