series image of 10.B6.A3B-0900

10.B6.A3B-0900

by KEB
$0
$2,607.25 - $2,607.25
$2,607.25
$2,607.25 - $2,607.25
$2,607.25
Available, Shipping Varies
 More payment options

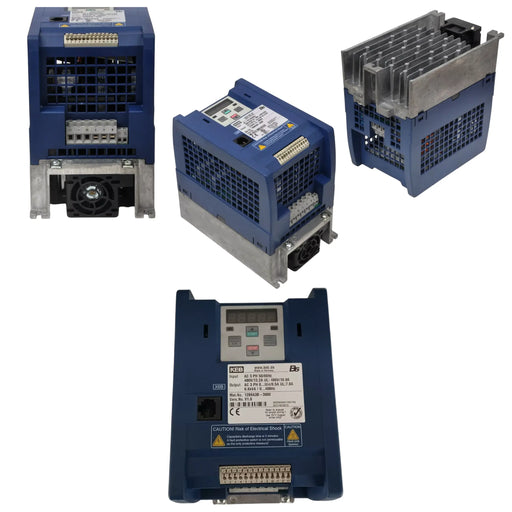

The 10.B6.A3B-0900 from KEB offers a 2.2 kW power rating and a 1x200-240V input supply. Part of the B6 Combivert Frequency Inverters, it has an IP20 enclosure and 5 digital inputs. It delivers a maximum short-time current of 18A and a 10A nominal output.

It supports a 0-400Hz output and a 4-16kHz modulation range. It accepts a 0-10VDC or 4-20mA analog input and includes a CAN interface. An overload trip current of 21A ensures safe motor control.

30 Day Warranty
Technical Specifications
  • Analog Input: 0 - 10 V DC or 4 - 20 mA
  • Digital Inputs: 5
  • Enclosure: IP 20
  • Max Modulation Frequency: 16 kHz
  • Max Short-time Current: 18A
  • Nominal Output Current: 10A
  • Output Frequency: 0 - 400 Hz
