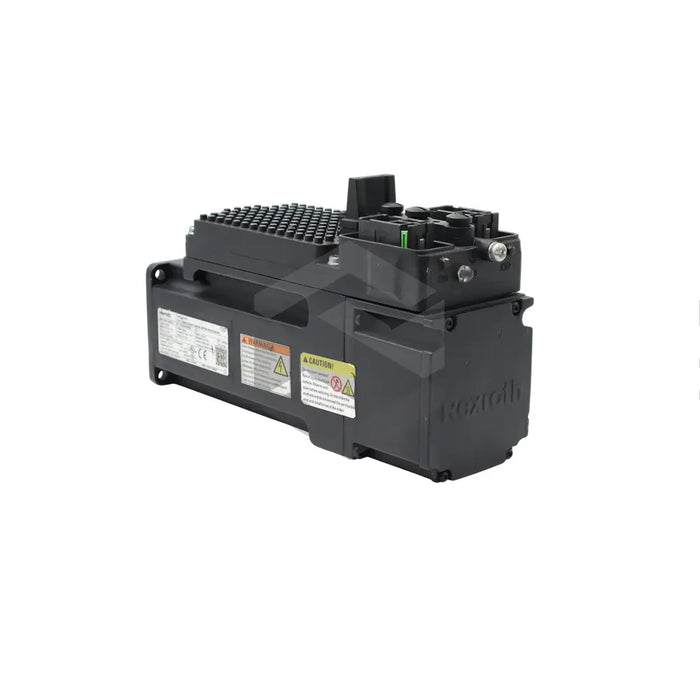

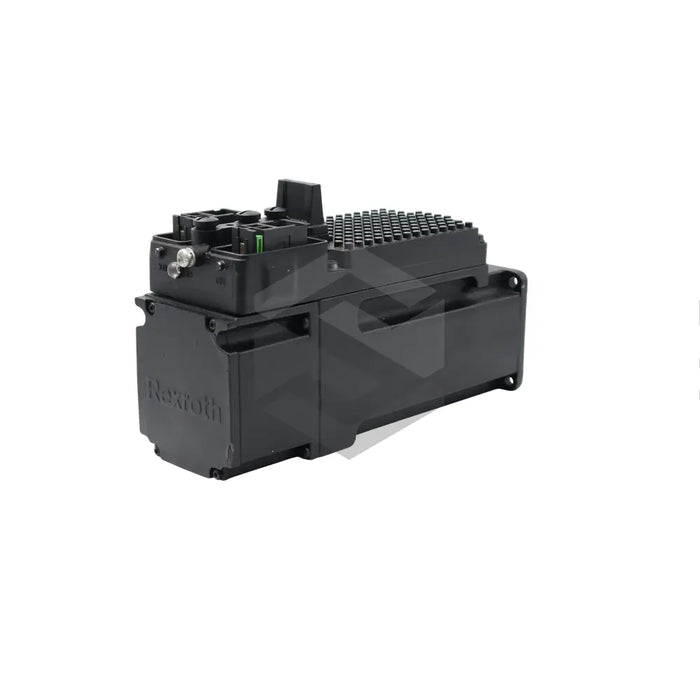

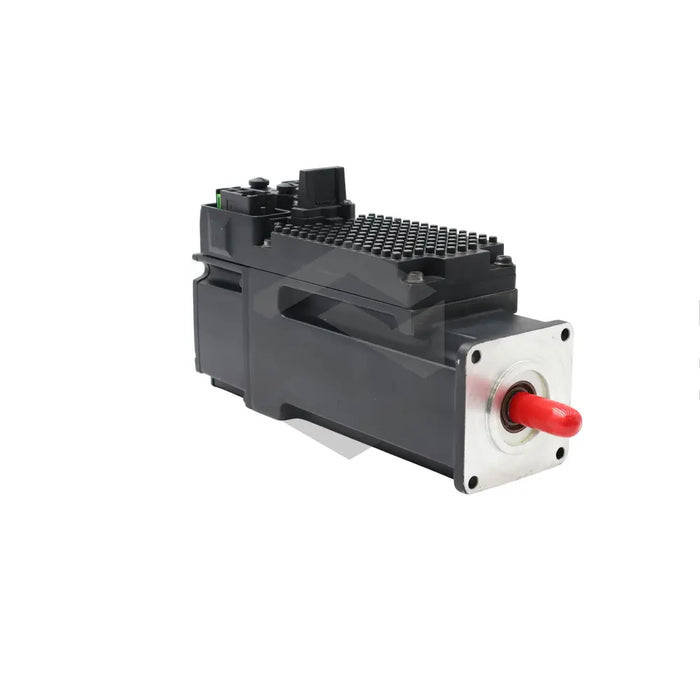

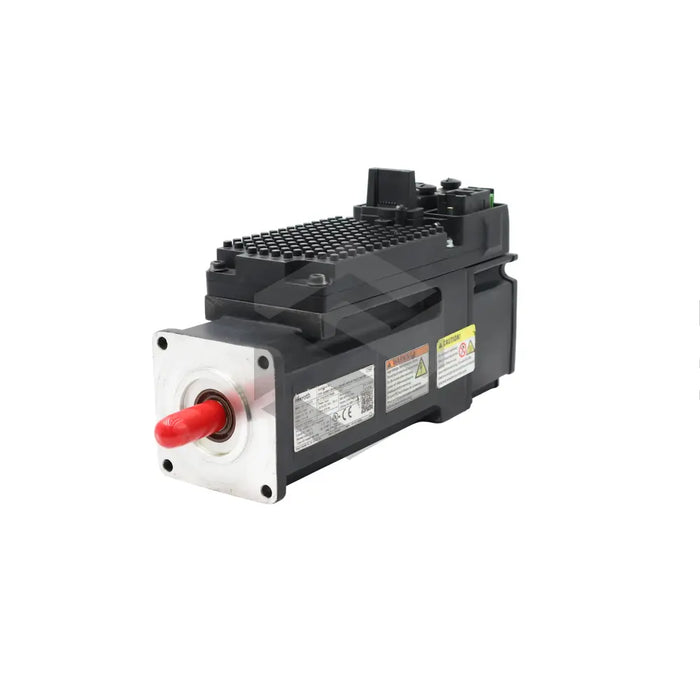

manufacturer image of KSM01.2B-041C-42N-S1-HP0-SE-NN-D7-NN-FW

KSM01.2B-041C-42N-S1-HP0-SE-NN-D7-NN-FW

by Bosch Rexroth Indramat
$6,231.00 - $6,231.00
$6,231.00
$6,231.00 - $6,231.00
$6,231.00
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat KSM01.2B-041C-42N-S1-HP0-SE-NN-D7-NN-FW motor, as part of the KSM series, is a key component for motion control solutions often coupled with the IndraDrive Mi drive system. This combination does not need to be enclosed in an electrical control enclosure, reducing costs in maintenance and cooling fan replacement. The KSM motor series comes in four sizes with a maximum torque of up to 35 Nm and do not require external cooling. UL certified with an optional integrated control holding brake, this motor series operates reliably in dusty or damp settings thanks to the IP65 rating. With an input voltage ranging between 540 and 750 V DC, it's important to adhere to manufacturer specified ambient conditions for optimal functionality. The KSM01.2B-041C-42N-S1-HP0-SE-NN-D7-NN-FW variation features a single-turn Hiperface optical encoder with 128 increments, weighs 5.8 kg and does not include a holding brake or safety technology.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: KSM Motor
  • Use with system: IndraDrive Mi drive system
  • Cooling requirement: No external cooling required
  • Sizes available: Four different sizes
  • Maximum torque: 9.4 to 35 Nm
  • Certification: UL certified
  • Optional Mode: Holding Brake with integrated control
  • Protection Rating: IP65
  • Equipped with: Optical Encoders
  • Maximum speed: 3,400 to 6,000 min-1
  • Rated input voltage: 540 to 750 V DC
  • Model: KSM01.2B-041C-42N-S1-HP0-SE-NN-D7-NN-FW
  • Encoder type: Single-turn Hiperface with 128 increments
  • Shaft specification: Shaft with a keyway
  • Weight: 5.8 kg
  • Insulation class: 155
  • Safety technology: Comes without a holding brake
  • Firmware requirement: Must be specified
