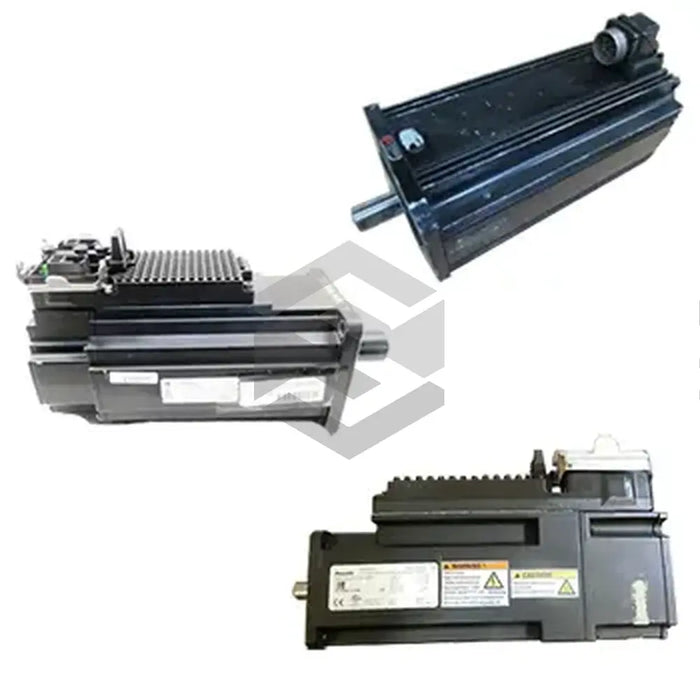

S image of KSM02.1B-041C-42N-M1-HG0-ET-NN-D7-N-FW

KSM02.1B-041C-42N-M1-HG0-ET-NN-D7-N-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The KSM02.1B-041C-42N-M1-HG0-ET-NN-D7-N-FW from Bosch Rexroth Indramat is part of the KSM Motor Integrated Servo Drives series, combining motor and drive electronics in a single compact unit. This motor-integrated servo drive operates on a 540-750 V DC input and delivers a Continuous Torque at Standstill of 2.2 Nm for stable static positioning, as well as a Maximum Torque of 94 Nm to handle peak acceleration and deceleration cycles. The unit's rotor dynamics are characterized by a Moment of Inertia of 0.00017 kg·m², enabling rapid response to motion commands. With a Max Rotational Speed of 5500 min⁻¹, it supports high-speed indexing applications. The drive draws a Continuous Current (Standstill) of 1.4 A and sustains a Peak Current of 6.8 A under load without triggering protective shutdown. The overall mass of 5.5 kg ensures a favorable power-to-weight ratio for streamlined machine integration.

Performance is optimized through passive Cooling Type: Natural convection, eliminating the need for external fans or complex heat sinks. The integrated Encoder Technology: Optical with multi-turn absolute feedback ensures sub-micron position resolution and robust closed-loop control. A Connection Type: Hybrid Connector simplifies wiring of power, feedback, and I/O signals, while the Master Communication Protocol: Multi-Ethernet interface provides real-time data exchange and synchronization with higher-level systems. The drive’s Shaft Type: Plain shaft with a 14 mm diameter and sealing ring supports direct coupling to industry-standard couplings, reducing mechanical backlash. Designed to performance level Basic, it balances cost and functionality for general-purpose automation. Its safety technology is configured without safety technology and without holding brake, making it ideal for applications where external braking and safety functions are managed separately.

Built for harsh industrial environments, the servo drive features a Protection Rating: IP65, ensuring complete protection against dust ingress and low-pressure water jets. The motor length designation C and size 041 reflect standardized dimensions for seamless mechanical compatibility. Natural convection cooling and the absence of moving cooling parts enhance long-term reliability and reduce maintenance intervals. Integration is facilitated by standardized mounting interfaces and a compact footprint, enabling deployment in packaging, material handling, and general industrial automation systems. With its robust design and precise control capabilities, the KSM02.1B drive series delivers reliable operation in demanding production settings.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cooling Type

Natural convection

Design Version

1

Connection Type

Hybrid Connector

Encoder Technology

Optical

Holding Brake

Without holding brake

Motor Length

C

Master Communication Protocol

Multi-Ethernet

Performance Level

Basic

Product Type

Motor-Integrated Servo Drive

Safety Technology

Without safety technology

Series

2

Shaft Type

Plain shaft

Motor Size

041

Continuous Torque at Standstill

2.2 Nm

Maximum Torque

94 Nm

Moment of Inertia

0.00017 kg·m²

Continuous Current (Standstill)

1.4 A

Peak Current

6.8 A

Max Rotational Speed

5500 min⁻¹
