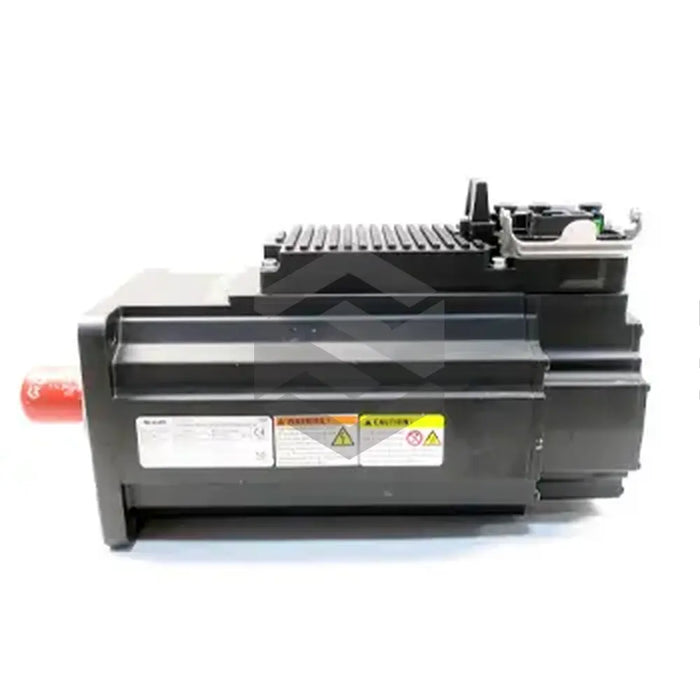

P image of KSM02.1B-071C-24N-S1-HG0-ET-SD-D7-NN-FW

KSM02.1B-071C-24N-S1-HG0-ET-SD-D7-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth KSM02 motor-integrated servo drive, model KSM02.1B-071C-24N-S1-HG0-ET-SD-D7-NN-FW, requires an input of 750 Volts DC. It is equipped with an optical encoder Hiperface single-turn 128 signal periods, safe motion, multi-Ethernet communication, and hybrid electrical connector. Additional features include an optional 24 Volts DC electrically releasing holding brake, communication output coupling and a main motor shaft fitted with a sealing ring to prevent leakage and protect against dust and water. The servo motor on the drive is rated for 10.5 Nm continuous torque and 35 Nm maximum torque, reaching speeds up to 3400 RPM. Holding an environmental protection rating of IP65, it is resistant to dust and low-pressure water jets. Ensure safety procedures are followed for installation and transportation, with regular checks on the seal for optimal performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

KSM02.1B-071C-24N-S1-HG0-ET-SD-D7-NN-FW

Brand

Bosch Rexroth

Category

Motor-integrated servo drive

Input Voltage

750 Volts DC

Main Features

Optical encoder, safe motion with SBC, Multi-Ethernet communication, hybrid electrical connector

Optional Features

24 Volts DC releasing holding brake, communication output coupling

Shaft Type

Plain with Sealing Ring

Cooling Method

Natural Convection

Protection Rating

IP65

Motor Torque

10.5 Nm continuous, 35 Nm Maximum

Motor Speed

Maximum 3400 RPM

Max Axial Force

40 N

Installation Instruction

Install only when de-energized and not connected electrically

Transportation

Use suitable lifting gear and protection equipment

Safety Instructions

Observe instructions in the product manual
