R911320209
Original price
$9,382.85
-
Original price
$23,630.20
Original price
$23,630.20
$9,382.85
-
$23,630.20
Current price
$23,630.20

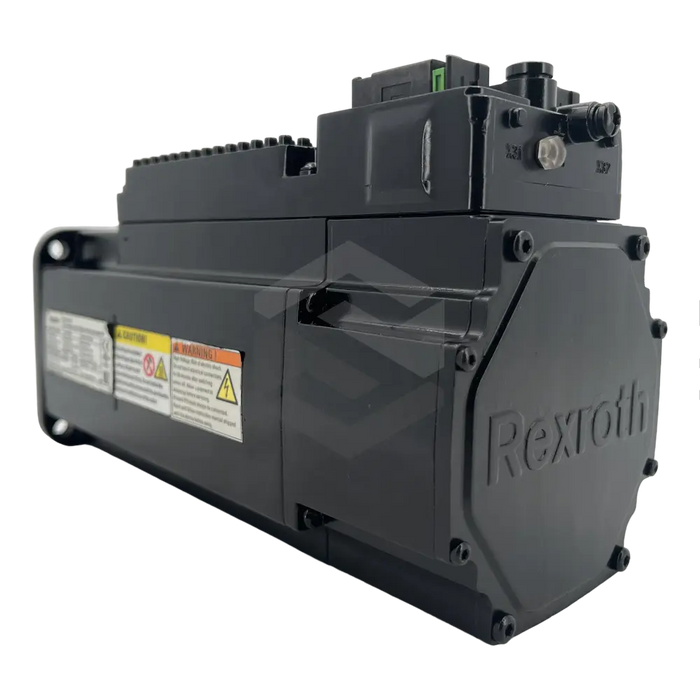

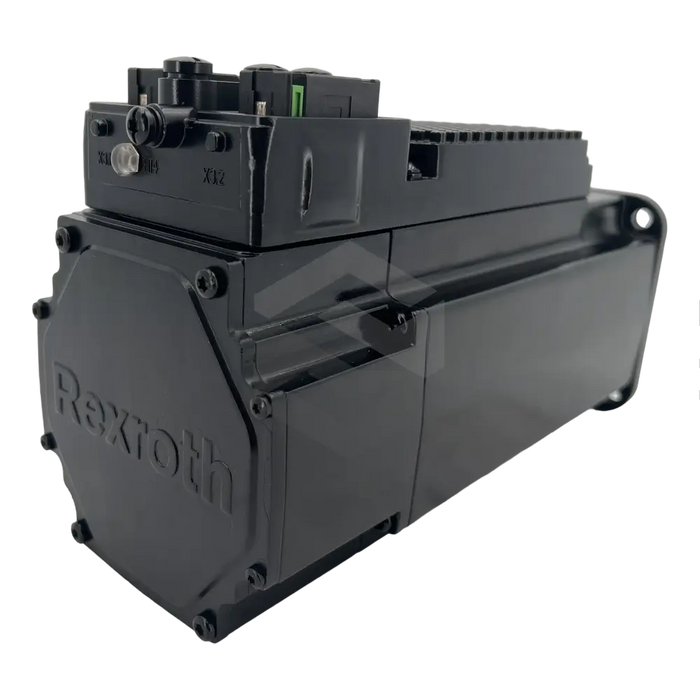

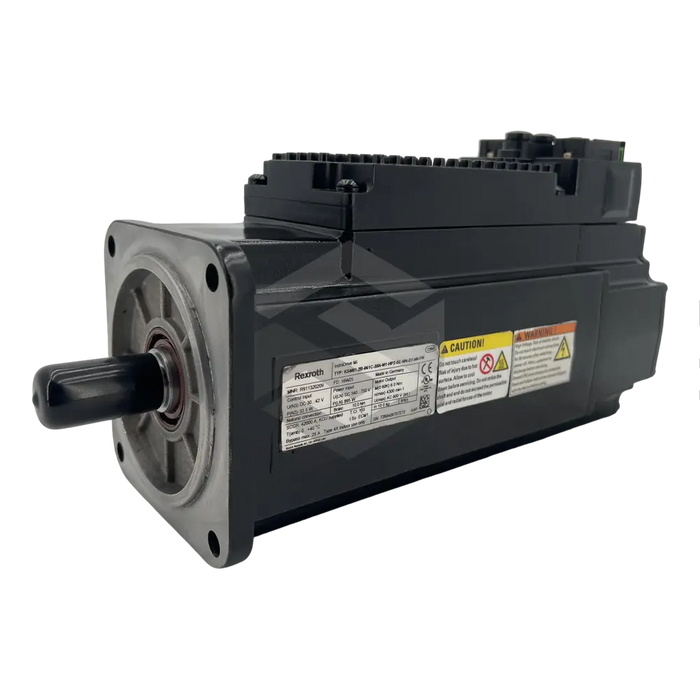

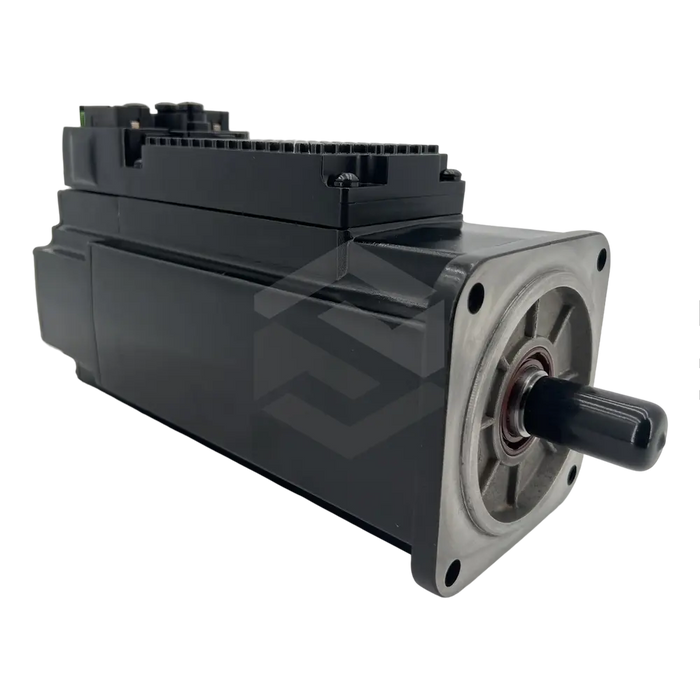

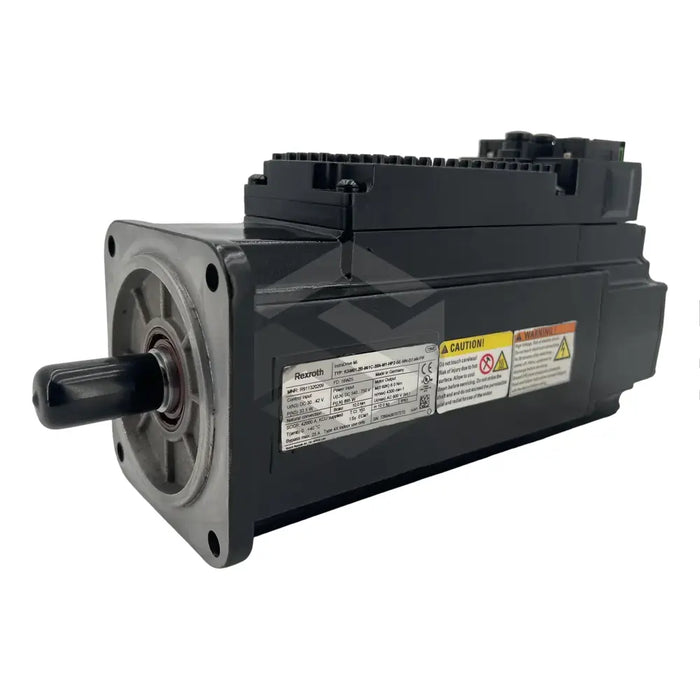

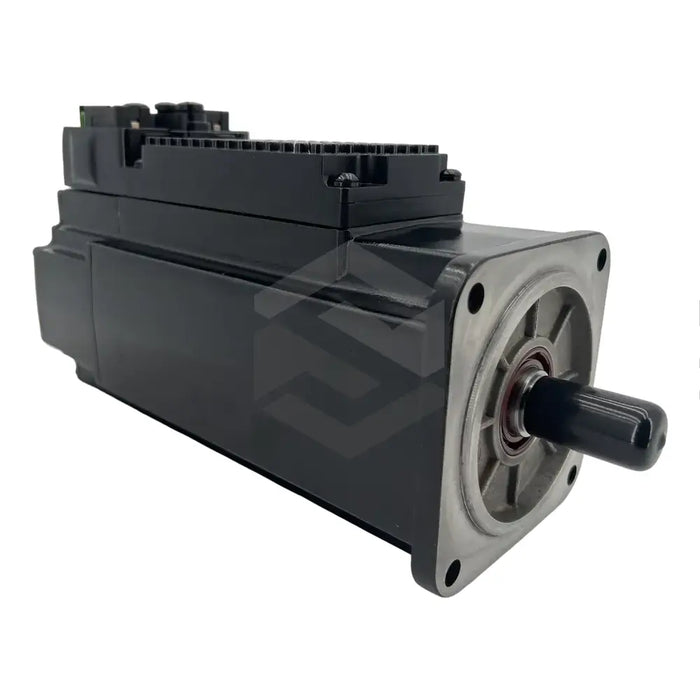

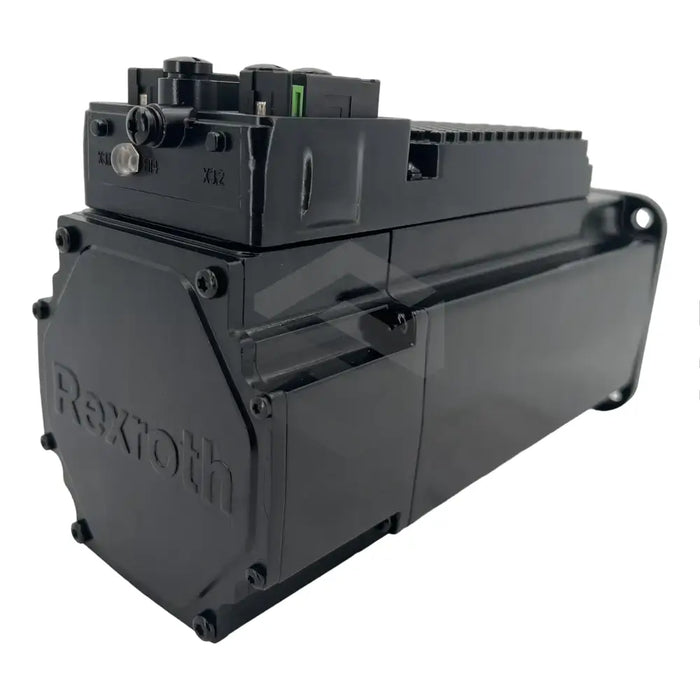

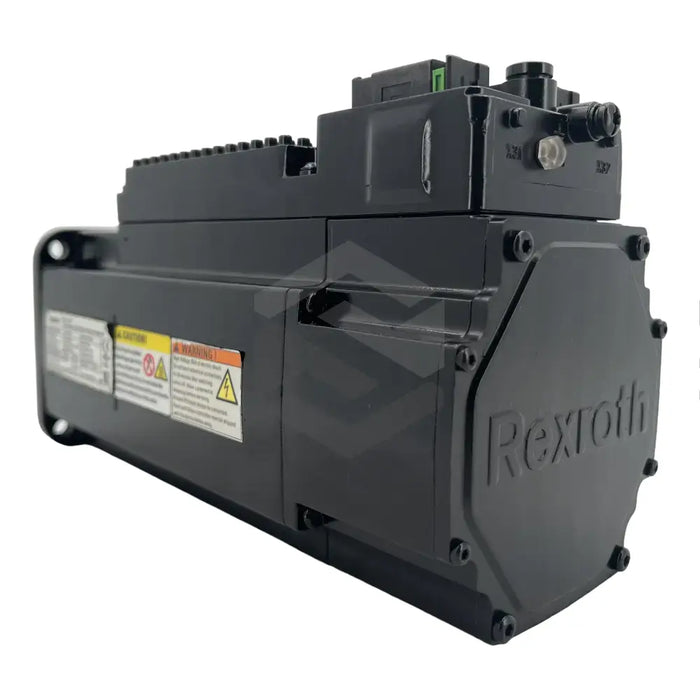

The product in focus is the R911320209 (KSM01.2B-061C-35N-M1-HP2-SE-NN-D7-NN-FW), a typical example of KSM motors produced by Bosch Rexroth Indramat. These motors are integral components of the advanced and dependable IndraDrive Mi system. The KSM motors are available in a range of sizes, including the 076, 071, 061, and 041. Each of these possesses a ring-sealed shaft, optional holding brakes, and could be either plain or furnished with keyways. Notably, KSM motors are equipped with integrated Motion Logic, a single-turn or multi-turn optical absolute encoder, and a protection rating of IP65.
Constructed for flange assembly, these motors feature a casing that functions as a heatsink. This product, however, requires regular cleaning of cooling ribs to avoid possible failure due to excessive dust or dirt accumulation. Although KSM motors can operate without maintenance under specified operating conditions and service life, unfavorable conditions may necessitate maintenance. More specifically, the R911320209 (KSM01.2B-061C-35N-M1-HP2-SE-NN-D7-NN-FW) motor, belonging to line 01 and design 2, provides basic performance. Its features include a multi-turn absolute Hiperface optical encoder, an electrically-released holding break with DC 24 V, a natural convection cooling system, hybrid connectors, and a shaft with a keyway, and SERCOS II master communication capability.
