R911320211
Original price
$5,343.62
-
Original price
$5,343.62
Original price
$5,343.62
$5,343.62
-
$5,343.62
Current price
$5,343.62

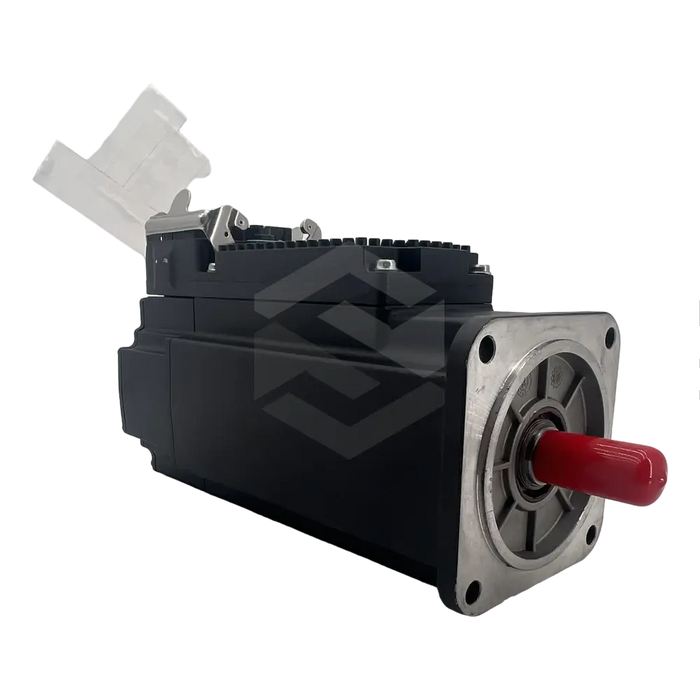

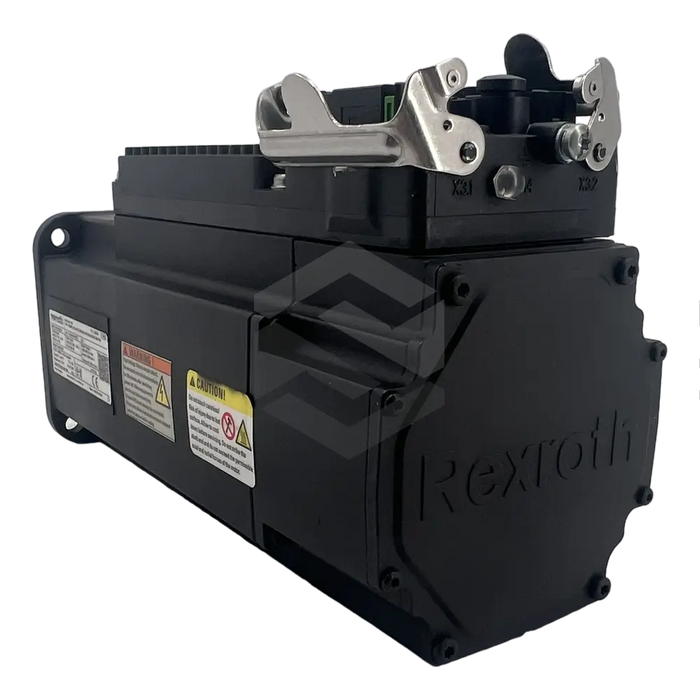

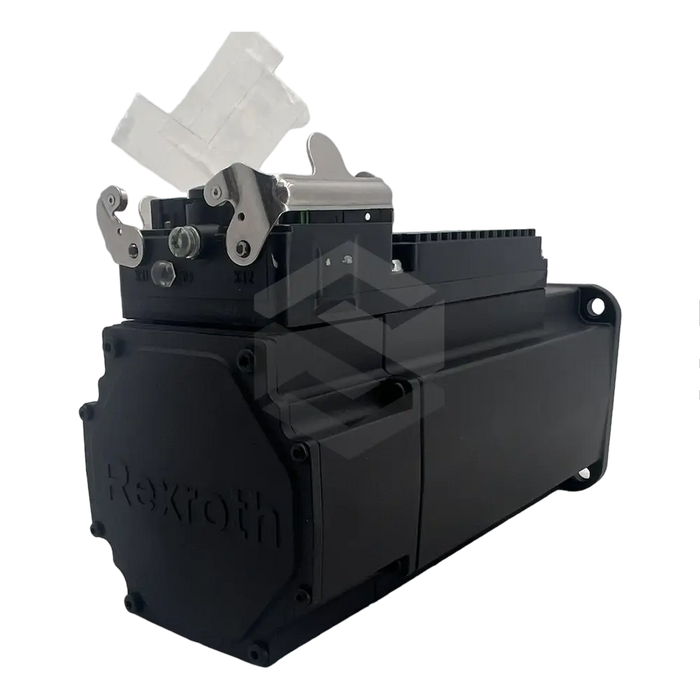

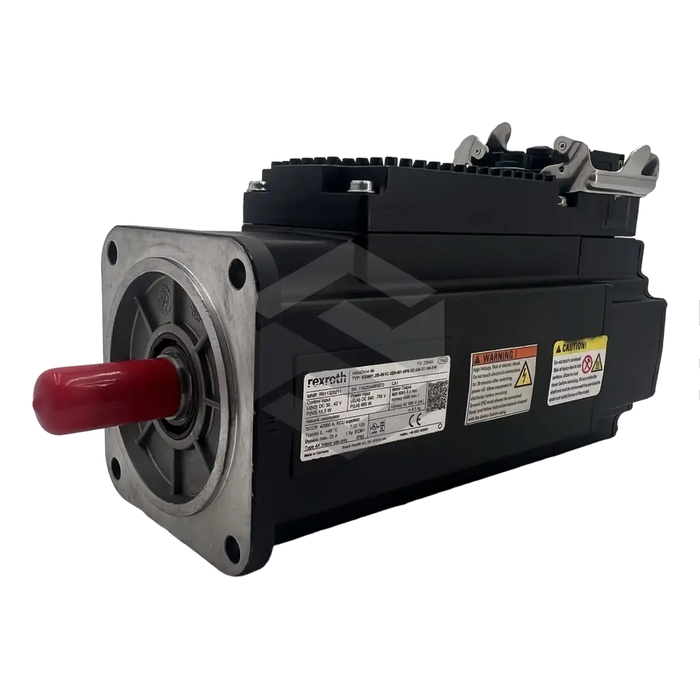

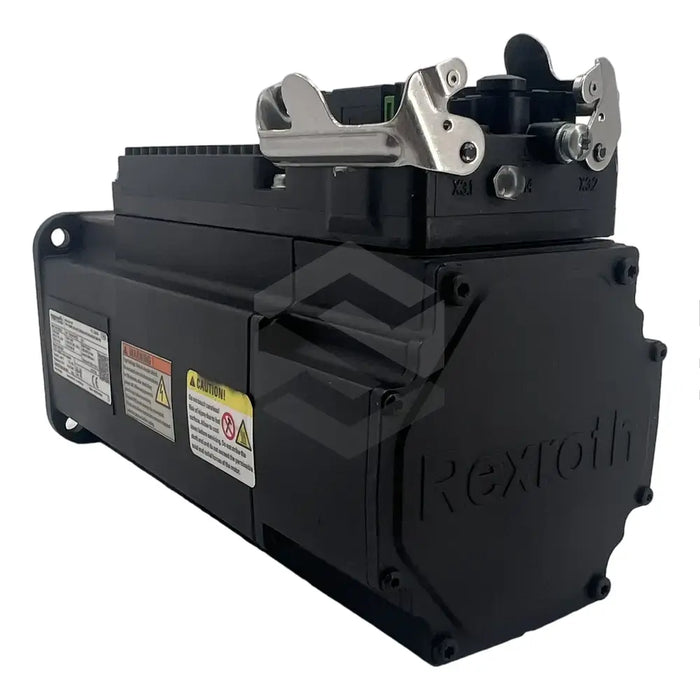

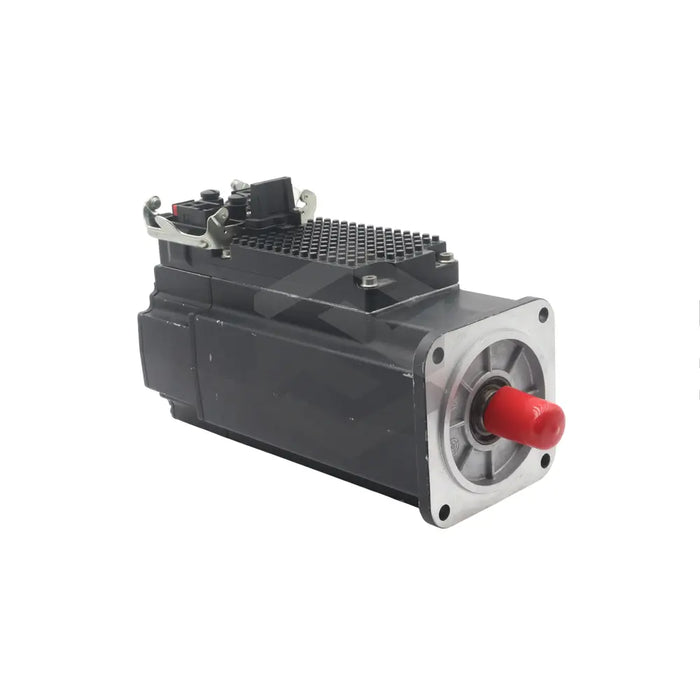

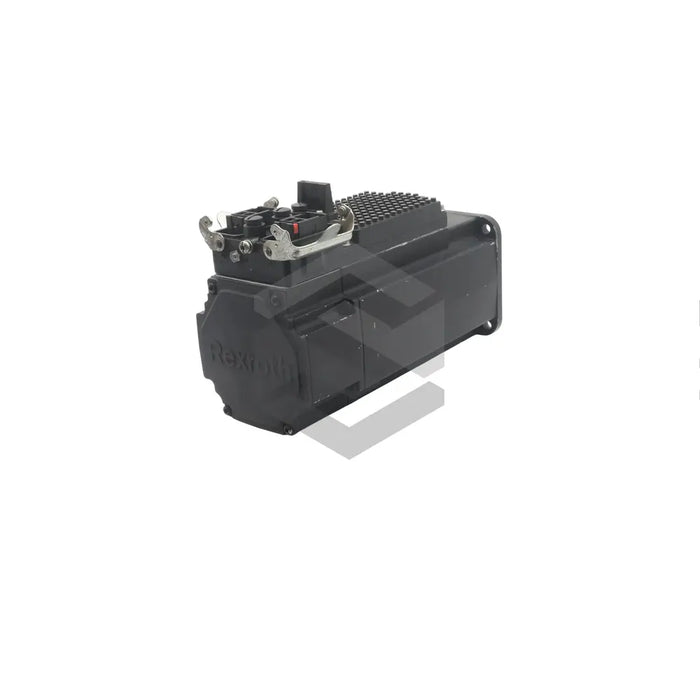

The R911320211 (KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW) is a product from the renowned Bosch Rexroth Indramat. It's part of their IndraDrive Mi drive system line, renowned for its exceptional efficiency and flexibility. This unique system combines the efficient KSM motors with the sophisticated KCU electronic control units into a compact unit that requires minimal space. The product is highly durable, with a design that eliminates the need for replacement of wear and tear parts like electrolytic capacitors and fans, thereby enhancing the overall life and reliability of the unit while reducing possible downtime costs.
Notably, KSM motors, known for their relatively lightweight design (5.5 to 14.5 kg), are well-suited for spaces with size constraints. The motor should be stored or transported in an environment with an absolute humidity range of 0 to 60 g/m3, a relative humidity range of 5% to 95%, and within a temperature parameter of -20 to +85 degrees Celsius. The R911320211 (KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW) model stands out with its built-in multi-turn absolute optical encoder, SERCOS 2 master communication, and a natural convection cooling system. Furthermore, it offers outstanding performance with a maximum speed of 4300 min-1, maximum current of 14.9 A, maximum torque of 25 Nm, and a standstill torque of 6 Nm and continuous current at standstill at 3.3 A.
30 Day Warranty
Technical Specifications
