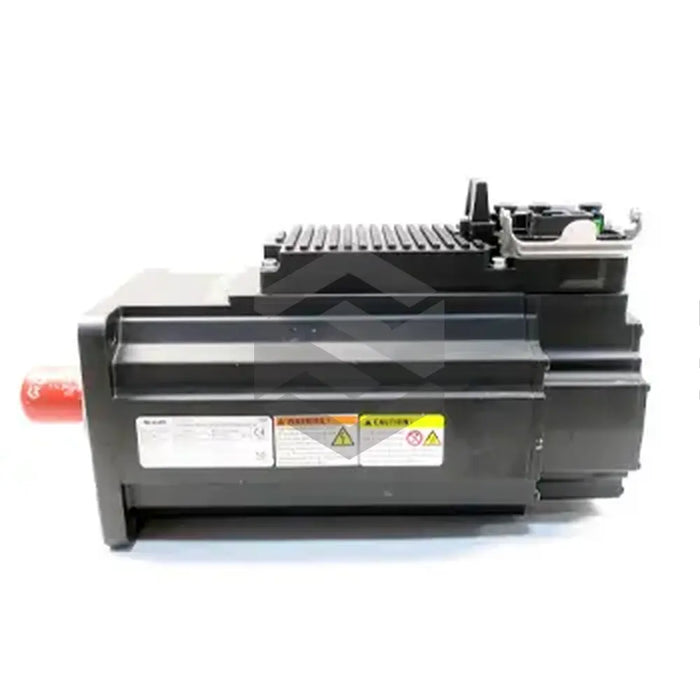

Product R911320220 (KSM01.2B-071C-35N-M1-HP0-SE-NN-D7-NN-FW), from Bosch Rexroth Indramat’s IndraDrive Mi series, is a type-II KSM servo drive designed for basic performance. This model, with a frame size of 71 and length C, does not include an electrically released holding brake. It utilizes a convective cooling system and a hybrid electrical connection. The device weighs around 9.5 kg and has a keyway shaft design with a sealing ring in accordance with DIN 6885-1 standards. It features a SERCOS II (RS 422) real-time protocol communication interface.
The R911320220 (KSM01.2B-071C-35N-M1-HP0-SE-NN-D7-NN-FW) uses an electromechanical optical encoder with a multiturn-absolute Hiperface and 128 increments. It operates with a DC voltage of 750 V and a maximum speed of 3400 rotations per minute. The drive does not include a safety technology feature. The device functions with a maximum current of 17.7 Amperes and an insulation class of 155 as determined by EN 60034 – 1. The KSM servo drive does not contain additional design options and the compatible firmware must be obtained separately. The protection of the drive from dust and low-pressure water jets is ensured with an Ingress Protection rating of 65 as per IEC 60529. Installation requires suitable space for accessibility of SERCOS address selector, connection ports and diagnostic LED. The device can withstand an operational ambient temperature of 0 to 40 oC and a permissible absolute humidity range of 1 – 60 g/m3. It should be transported without exposure to ice, moisture, and condensation.
