R911321368

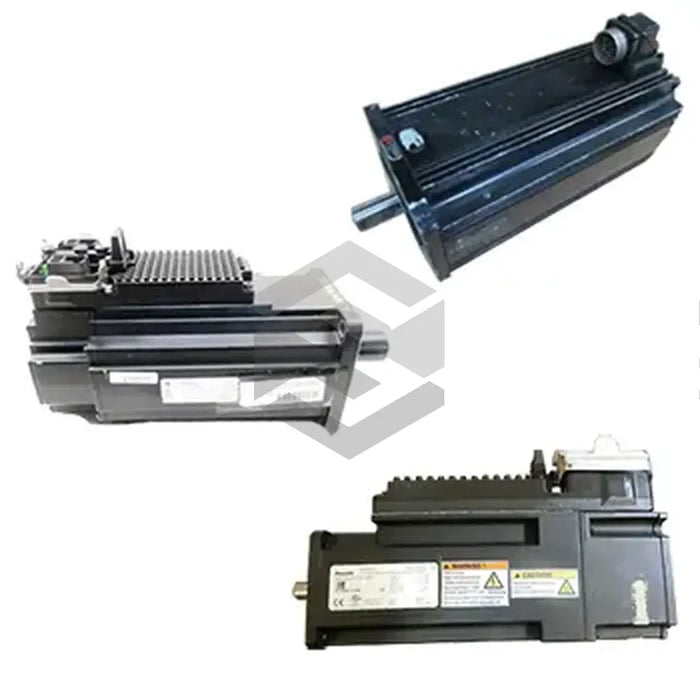

The R911321368 (KSM01.2B-061C-35N-M1-HG0-SE-NN-D7-NN-FW), a robust IndraDrive Mi servo motor, is a product of Bosch Rexroth Indramat's expert engineering. This compactly designed unit leads the way with forward-thinking cabinet-free technology and combines servo motor with control system. Weighing 9.5 Kg, this basic performance equipment requires control voltage input within a 30-42 Volt range and consumes power at 15.5 Watts. Boasting a torque constant of 2.03 Nm/A at 20°C and a rated input voltage of 750 Volts, the R911321368 (KSM01.2B-061C-35N-M1-HG0-SE-NN-D7-NN-FW) meets UL standards with a 42,000 Arms current rating at short circuit and a maximum 25 Amp bypass current rating. This drive delivers maximum torque and current ratings of 25 Nm and 14.9 Amps respectively.
Featuring a high maximum speed of 4300 rpm and a 155 insulation class rating per DIN 60034-1 standards, this unit functions with a rated power exceeding 930 Watts for longer than 10 minutes. Its heat regulation relies on natural convection and its innovative optical encoder system includes a multiturn-absolute Hiperface with 128 increments. The R911321368 (KSM01.2B-061C-35N-M1-HG0-SE-NN-D7-NN-FW) uses a hybrid electrical connection and is equipped with a plain shaft with a sealing ring. Compatible firmware must be bought separately. The unit's control commands and signals are executed via the SERCOS 2 interface. It operates optimally within 0-40°C and adheres to protection class IP65 as per IEC 60529 and UL50/50E, with a 4X permissible ambient condition rating.
