R911335755

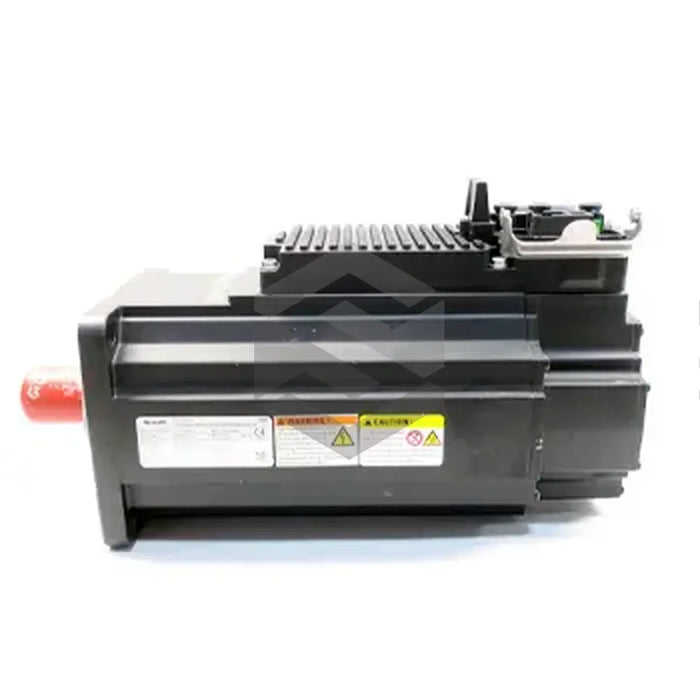

Bosch Rexroth Indramat offers the R911335755 (KSM02.1B-041C-42N-M1-HG0-ET-L3-D7-NN-FW) - an integration of a drive and servo motor within a single compact casing. The device is equipped with Multi-Ethernet communication capabilities, allowing use in diverse automation environments. It comes with a safe torque off (STO) safety feature enabling safe maintenance tasks by operators. Aside from conveniently creating safety zones, the STO feature guarantees that no torque generating energy impacts the motor until the STO is deactivated. The device requires separate firmware order and comes with an optical encoder that supports the Hiperface protocol. The unit also comes with a sealing ring for protection against outside contaminants.
This product from the KSM series has a size of 041, a length of C, and a winding code of 42, according to its type code. It operates at a maximum speed of 5500 RPM, maintains a thermal class of 155 as per EN 60034-1 standards, and yields a torque constant of 1.6 Nm/A at 20 degrees Celsius. The R911335755 (KSM02.1B-041C-42N-M1-HG0-ET-L3-D7-NN-FW)'s power output makes up 470 Watts and its heat dissipation reaches 70 Watts. It operates optimally within an ambient temperature range of 0 to 40 degrees Celsius and cools via natural convection. The physical dimensions are 252mm in length and 194mm in height.
30 Day Warranty
Technical Specifications
