R911339811
Original price
$4,174.85
-
Original price
$4,174.85
Original price
$4,174.85
$4,174.85
-
$4,174.85
Current price
$4,174.85

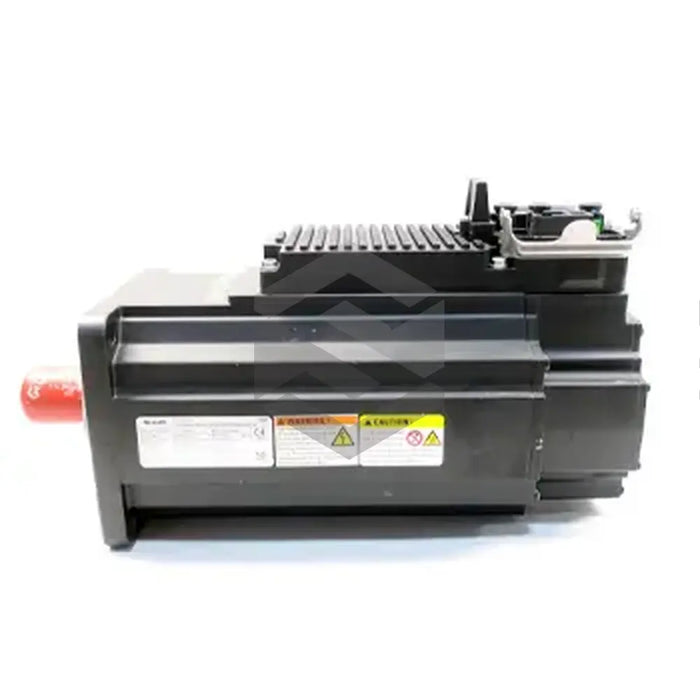

The R911339811 (KSM02.1B-041C-42N-M3-HG0-ET-L3-D7-NN-FW) is a servo motor built by renowned manufacturer Bosch Rexroth Indramat, forming part of their IndraDrive Mi and KSM series 2 product lines. This drive system integrates control sections and inverters and comes in type-1 design, size 041, length C and Winding 42. The motor employs a capacitive encoder with Hiperface multi-turn absolute featuring 16 signal periods, to decode the rotary position of the motor.
This device features a hybrid connector for power and communication, contributing to its ease of use and versatility. It runs on a DC supply voltage of 750 V and offers an IP 65 level of protection according to IEC 60529 standards. The R911339811 (KSM02.1B-041C-42N-M3-HG0-ET-L3-D7-NN-FW) effectively operates between 0 and 40°c ambient temperature and up to an altitude of 1000m. Although devoid of a holding brake, it has a multi-ethernet interface and employs the Safe Torque Off (STO) safety mechanism. The cooling is achieved through natural convection and the shaft comes with a sealing ring. Note that this unit conforms to CSA/UL standards and should only be used in NFPA 79 Applications.
30 Day Warranty
Technical Specifications
