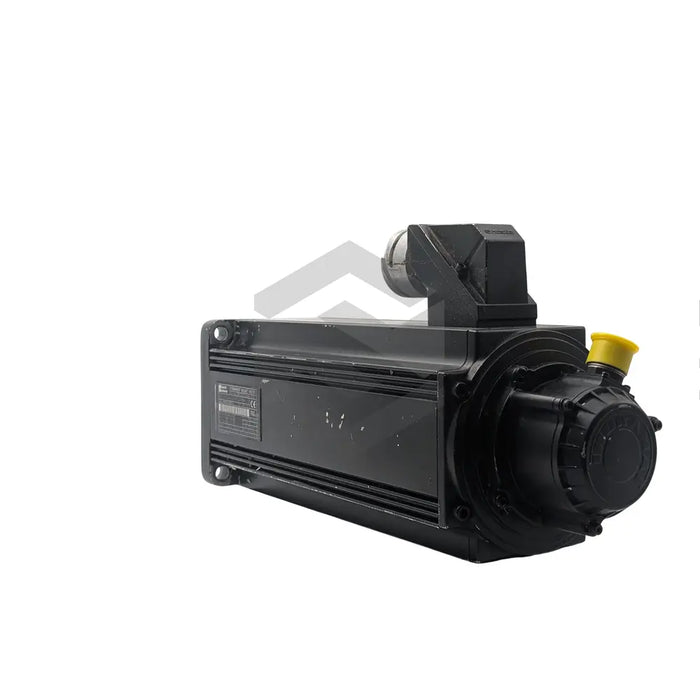

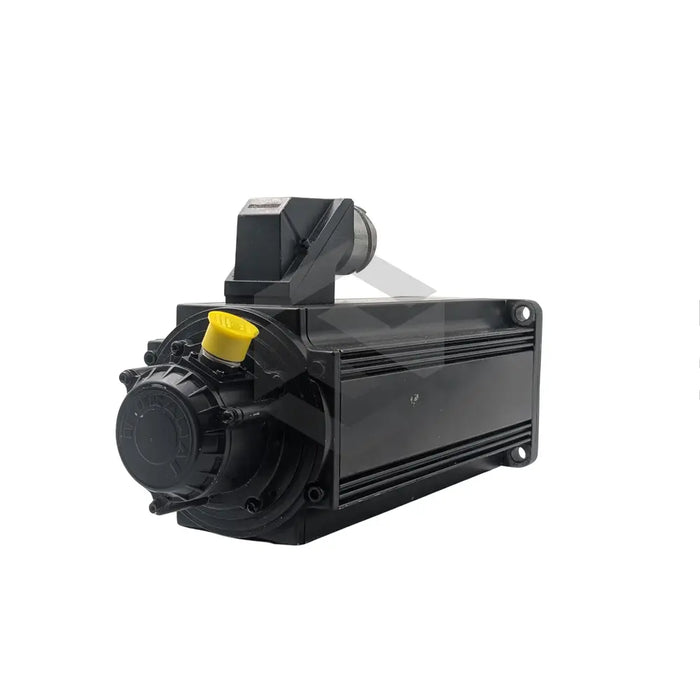

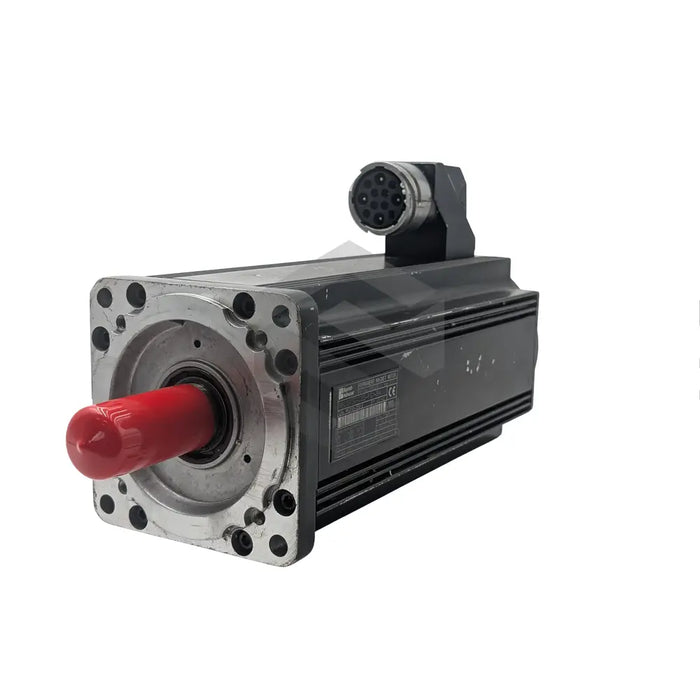

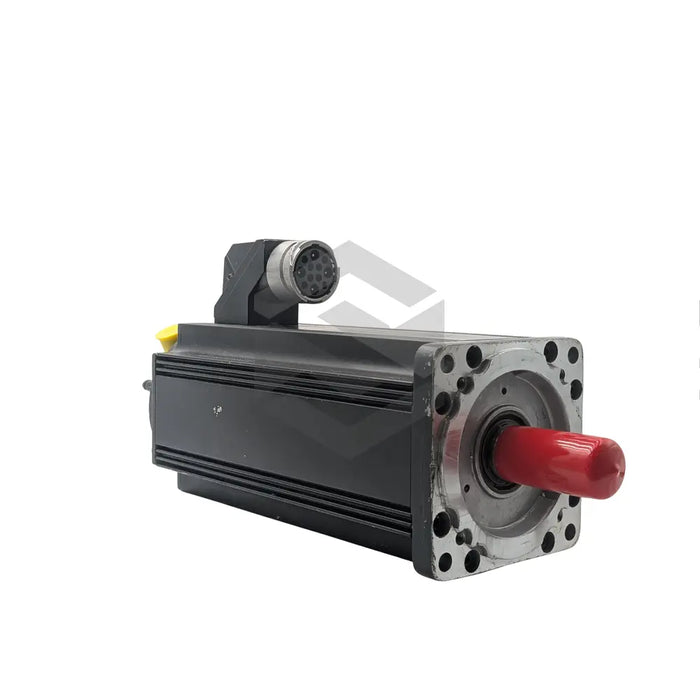

series image of MHD093C-058-NG1-BN

MHD093C-058-NG1-BN

by Bosch Rexroth Indramat
$25,056.97 - $25,056.97
$25,056.97
$25,056.97 - $25,056.97
$25,056.97
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat MHD093C-058-NG1-BN is a heavy-duty servo motor, designed for industrial use. Weighing 23.5 kg with a motor frame length of 396 mm, it offers remarkable specifications including a flange size of 140 mm and a shaft diameter of 32 mm. The motor is equipped with a 90-degree rotatable encoder connector, a side B output direction power connector, and a 22 Nm holding brake that operates on 24 Volts DC. It's designed for both natural convection and surface cooling, with a coolant inlet temperature range of 10-40 degrees Celsius. Its performance is impressive with a rated speed of 3500 RPM, 14.4 kW output, and a minimum wire cross section for the power cable of 6 mm2. The system supports digital servo feedback and is classified under the IP65 protection category. As for appearance, it sports a matte black finish.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Weight: 23.5 kilograms
  • Motor Frame Length: 396 millimeters
  • Flange Size: 140 millimeters
  • Centering Diameter: 130 millimeters
  • Shaft Diameter: 32 millimeters
  • Mounting Holes Diameter: 11 millimeters
  • Encoder Connector: 90-degree rotatable
  • Output Direction: Side B
  • Holding Brake Voltage: 24 Volts DC
  • Holding Brake Current: 0.71 Amps
  • Connection Time: 25 milliseconds
  • Disconnection Time: 50 milliseconds
  • Brake Weight: 1.1 kilograms
  • Cooling Type: Natural convection or surface cooling
  • Coolant Inlet Temperature Range: 10 to 40 degrees Celsius
  • Coolant Discharge: 1.4 liters per minute
  • Liquid Cooling Duct Volume: 0.06 liters
  • Continuous Torque at Standstill: 43.7 Nm
  • Continuous Current at Standstill: 53.8 Amps
  • Rated Speed: 3500 RPM
  • Rated Torque: 32 Nm
  • Rated Current: 27.9 Amps
  • Output: 14.4 kilowatts
  • Rated Voltage: 317 Volts
  • Rated Frequency: 233 Hertz
  • Power Cable Wire Cross Section: 6 mm2
  • Motor Time Constant: 25 minutes
  • Feedback Type: Digital Servo
  • Shaft Type: Plain with sealing ring
  • Protection Category: IP65
  • Surface Finish: Matte black-painted.
