S image of MIV04-1-B3

MIV04-1-B3

by Okuma
$3,763.71 - $3,763.71
$3,763.71
$3,763.71 - $3,763.71
$3,763.71

In Stock, Ships 1 - 3 Days

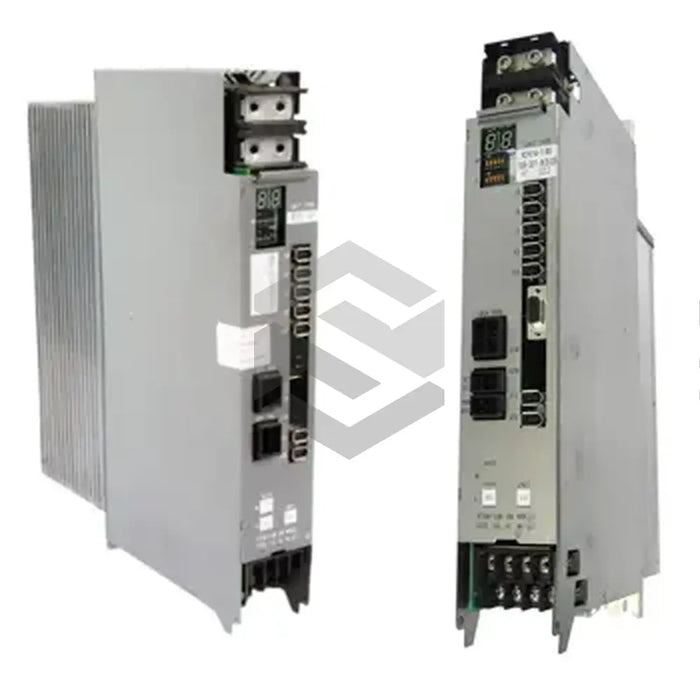

The MIV04-1-B3 servo drive from Okuma's MIV Servo Drives series provides precise single-axis control of BL motors. It delivers a rated output power of 4.0 kW (5.3 HP), operates at 300 VDC and 24 VDC, and weighs 5.7 kg. Cooling is achieved via forced-air cooling to maintain optimal temperatures, and it features comprehensive protection against overcurrent, short circuit, and thermal shutdown. Dimensions are 380 × 60 × 325 mm, and it integrates with the MIV04-1 PU series inverter unit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Applicable Inverter Unit Type

MIV04-1 PU series

Communication Interfaces

Servo, Encoder, Converter links

Compatible Motor Type

BL motors

Control Type

1-axis inverter control

Control Voltage Requirements

300 VDC & 24 VDC

Cooling Method

Forced-air cooling

Dimensions

380 × 60 × 325 mm

Encoder Phase Signal Voltage

2.6–4.6 V (ref 3.3 V)

Monitor Signal For Motor Speed

1562 min-1/V output range: -3 V to +3 V

Monitor Signal For Output Torque

Motor peak torque at 3 V output range: -3 V to +3 V

Motor Control Board Compatible

ICB1H-S (BL/PREX Motor Control)

Rated Output Power

4.0 kW (5.3 HP)

Weight

5.7 kg (12.5 lbs)
