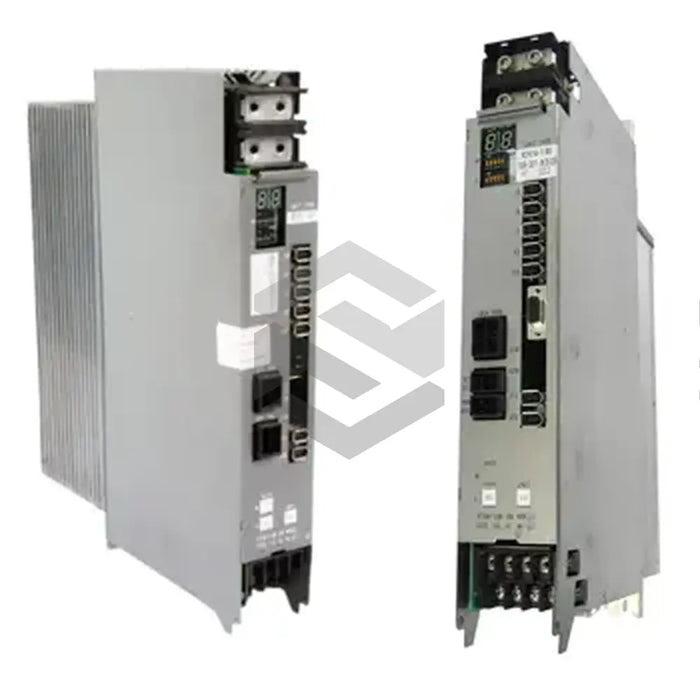

S image of MIV0404A-1-B3

MIV0404A-1-B3

by Okuma
$3,825.00 - $3,825.00
$3,825.00
$3,825.00 - $3,825.00
$3,825.00

In Stock, Ships Fast

The MIV0404A-1-B3 from Okuma weighs 7.8 kg and delivers 4 kW × 4 kW output. Part of the MIV Servo Drives series, it outputs a resolver signal of 6V at 9.77kHz and works across -3V to +3V. It supports both ICB1H-S and ICB1F boards and corrects voltage errors by 1/42.

The magnetic encoder provides A-phase and B-phase signals with Vpp of 2.6 to 4.6V. The Z-phase signal offers Vz1 at 1.4V and Vz2 at 0.5V. Motor speed is 1562 min-1/V on both axes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

A-phase Signal Of Magnetic Encoder

Vpp: 2.6 to 4.6V (Nominal: 3.3V)

B-phase Signal Of Magnetic Encoder

Vpp: 2.6 to 4.6V (Nominal: 3.3V)

Compatible Control Board

ICB1H-S/ICB1F

Motor Output Torque (1st Axis)

Motor peak torque at 3V, Output voltage -3V to +3V

Motor Output Torque (2nd Axis)

Motor peak torque at 3V, Output voltage -3V to +3V

Motor Speed (1st Axis)

1562 min-1/V, Output voltage -3V to +3V

Motor Speed (2nd Axis)

1562 min-1/V, Output voltage -3V to +3V

Motor Voltage Error (d-axis Component)

Multiplication factor 1/42, Output voltage -3V to +3V

Motor Voltage Error (q-axis Component)

Multiplication factor 1/42, Output voltage -3V to +3V

Output Voltage Range

-3V to +3V for all Motor signals

Rated Capacity

4 kW × 4 kW (5.3 hp × 5.3 hp)

Resolver Signal

Vpp: 6.0V (typ.), T≈102.4µsec (9.77kHz)

Unit Weight

7.8 kg (17.2 lb)

Z-phase Signal Of Magnetic Encoder

Vz1: 1.4V or higher, Vz2: 0.5V or higher
