MKD025B-144-GG0-KN
Original price
$2,527.71
-
Original price
$2,527.71
Original price
$2,527.71
$2,527.71
-
$2,527.71
Current price
$2,527.71

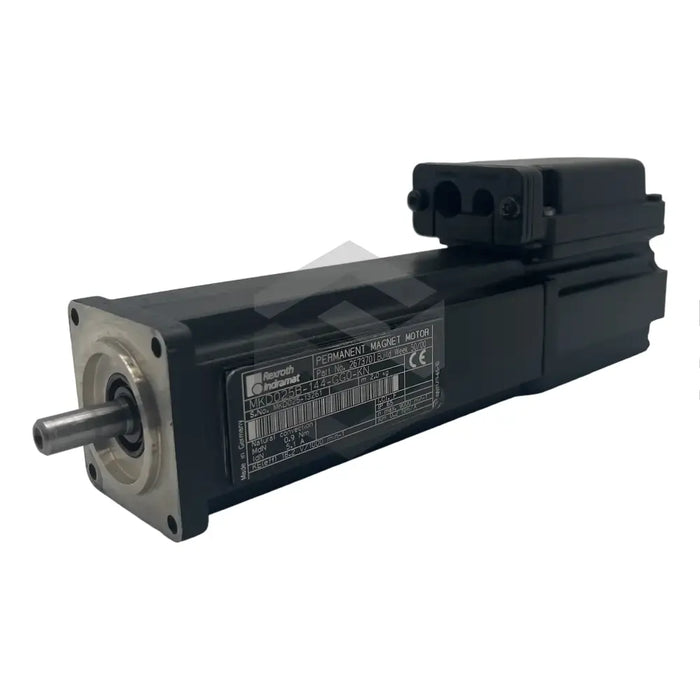

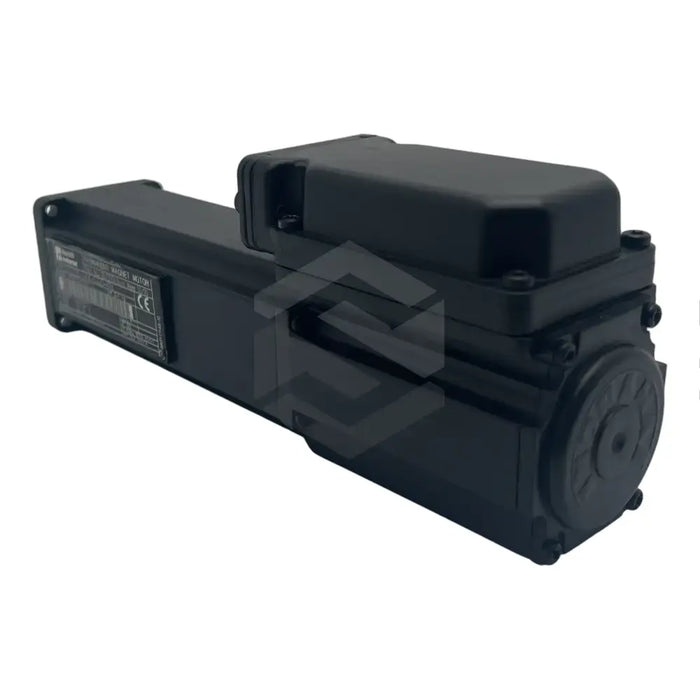

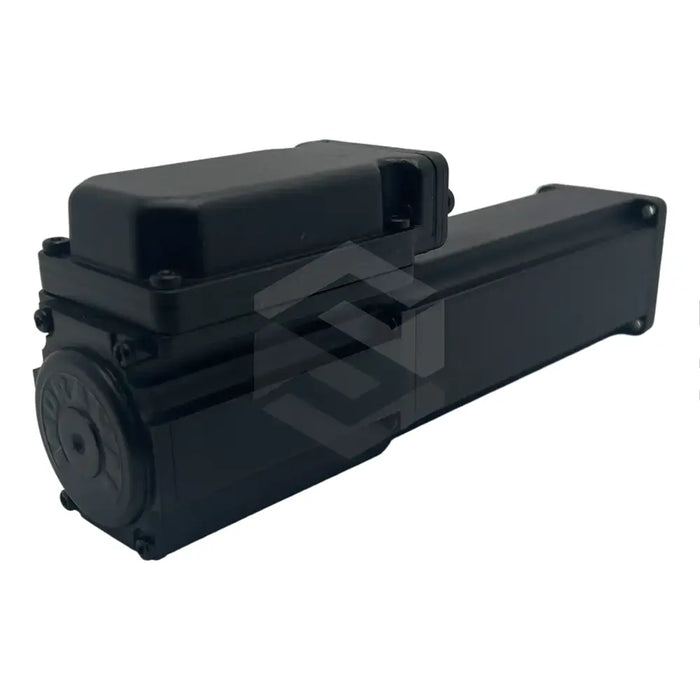

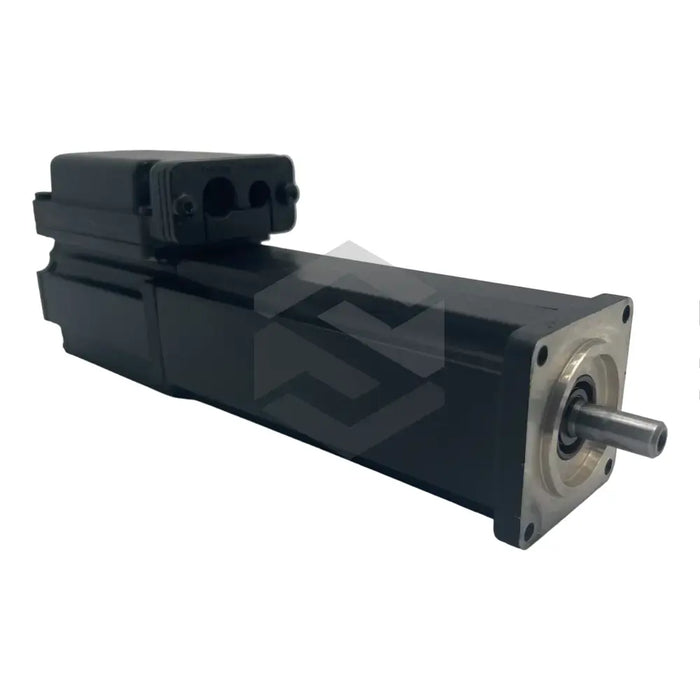

The MKD025B-144-GG0-KN AC synchronous motor is a Bosch Rexroth product from the MKD series, designed for use in automation systems in combination with drive controllers to form Ecodrive or Diax04 systems. Known for their versatility and ease of installation, these low-maintenance motors are suitable for a wide range of tasks across various industries. This specific motor comes with single-turn resolver feedback, a plain shaft without a keyway, and a shaft sealing ring. It does not have a blocking brake and has a winding code of 144, a flange size of 54mm, length of 9nm, and centering diameter of 40mm. The power connection's output direction faces the rear. With a rated current of 1.2 A, rated power of 0.2 W, rated voltage of 94.7 V, and frequency of 250 Hz, this motor operates at a maximum speed of 9000 RPM and rated speed of 5000 RPM. Weighing 2kg, this IP65-certified motor also features Class F insulation for added reliability.
